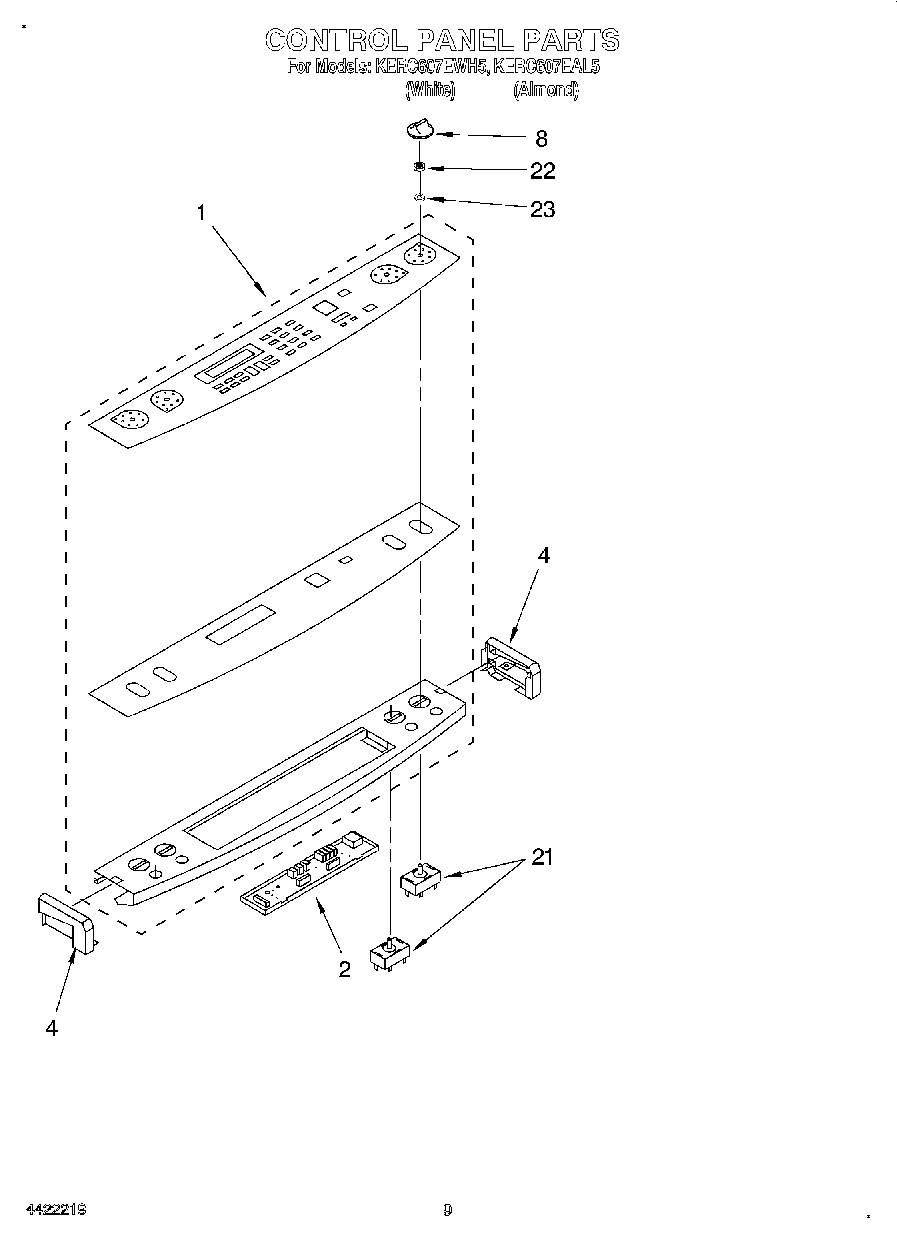

KERC607EAL5 06 – CONTROL PANEL, LIT/OPTIONAL

Products

Position	Product
	WPL 9781656
	WPL 9752036
	WPL 9751868
	WPL 9751750
	Literature Parts (Smart & Easy Guide)
	WPL 9751139
	Literature Parts (Cookbook (T/C Oven))
	3400964 Whirlpool Oven Clip
	WPL 9752343
	WPW10339879 Whirlpool Wire Tie
	WPL 9781486
	WPL LIT9752775
	WPL LIT9752957
	WPL 9752946
	WPL 9750376
	WPL LIT9752043
	WPL LIT9753028
	SCREW
	WPL LIT9753027
1	Console, Glass (Washer)
1	Console, Glass (Almond)
1	Console, Glass (White)
2	Timer, Electronic
2	Screw
4	WP4159387 Whirlpool Compactor Screw
4	Console, Glass (Spacer)
4	End Cap (Left Hand) (Almond)
4	End Cap (Left Hand) (White)
4	End Cap Right Hand (Almond)
4	End Cap (White, Right)
8	WP9750372FW Whirlpool Knob Assembly
8	Knobs, Control (4) (Almond)
21	8203536 Whirlpool Infinite Switch Primary
21	Switch, Infinite (1700W, RF)
21	Switch, Infinite (1250-1500W, LR)
21	Switch, Infinite (2100-2600W, LF)
22	Nut, Mounting (Single Element)
22	Nut, Mounting (Dual Element)
23	72113 Whirlpool Touch-Up Paint
23	Golden Harvest
23	Toast
23	Paint, Spray (13 Oz.) (Platinum)
23	WPL 9751745
23	Enamal, Toast (1 Qt. Uncut)
23	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
23	Almond (Uncut)
23	Insulation, Rear
23	WP72107 Whirlpool Touchup
23	Insulation, Wrap
23	Golden Harvest (Uncut)
23	799344 Whirlpool Refrigerator Paint
23	72017 Whirlpool Appliance Touch-Up Paint White
23	350956 Whirlpool Spray Assembly
23	350930 Whirlpool White Spray Paint
23	Platinum (Uncut)
23	WPL 72112
23	72109 Whirlpool Dacor Avocado Touch-Up Paint
23	Wire (14 Ga. 150 c Blue)
23	242831 Whirlpool Oven Wire
23	Wire, 25` Roll (Black 14 Ga.)
23	Wire, 25` Roll (Red 14 Ga.)
23	Wire, 25“ Roll (White 14 GA.)
23	285006 Whirlpool Spray
23	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
23	Paint, Spray 13 Oz. (Avocado)
23	paint, spray 13 oz. (coffee)
23	Wire (14 Ga. 150 c Brown)
23	WPL 799832
23	Wire (14 Ga. 150 c Orange)
23	Seal, Switch (4)
23	Wire (14 Ga. 150 c Green)
23	8212471 Whirlpool Oven Paint
23	350942 Whirlpool Spray Paint
23	511873 Whirlpool Refrigerator Paint
23	1
23	Wire (14 Ga. 200 c Brown)
23	18 Ga. 80~c Rating (Red)
23	Wire (12 Ga. 150 c Black)
23	Wire (14 Ga. 150 c Yellow)
23	Paint, Touch-Up 1/2 Oz. (Coffee)
