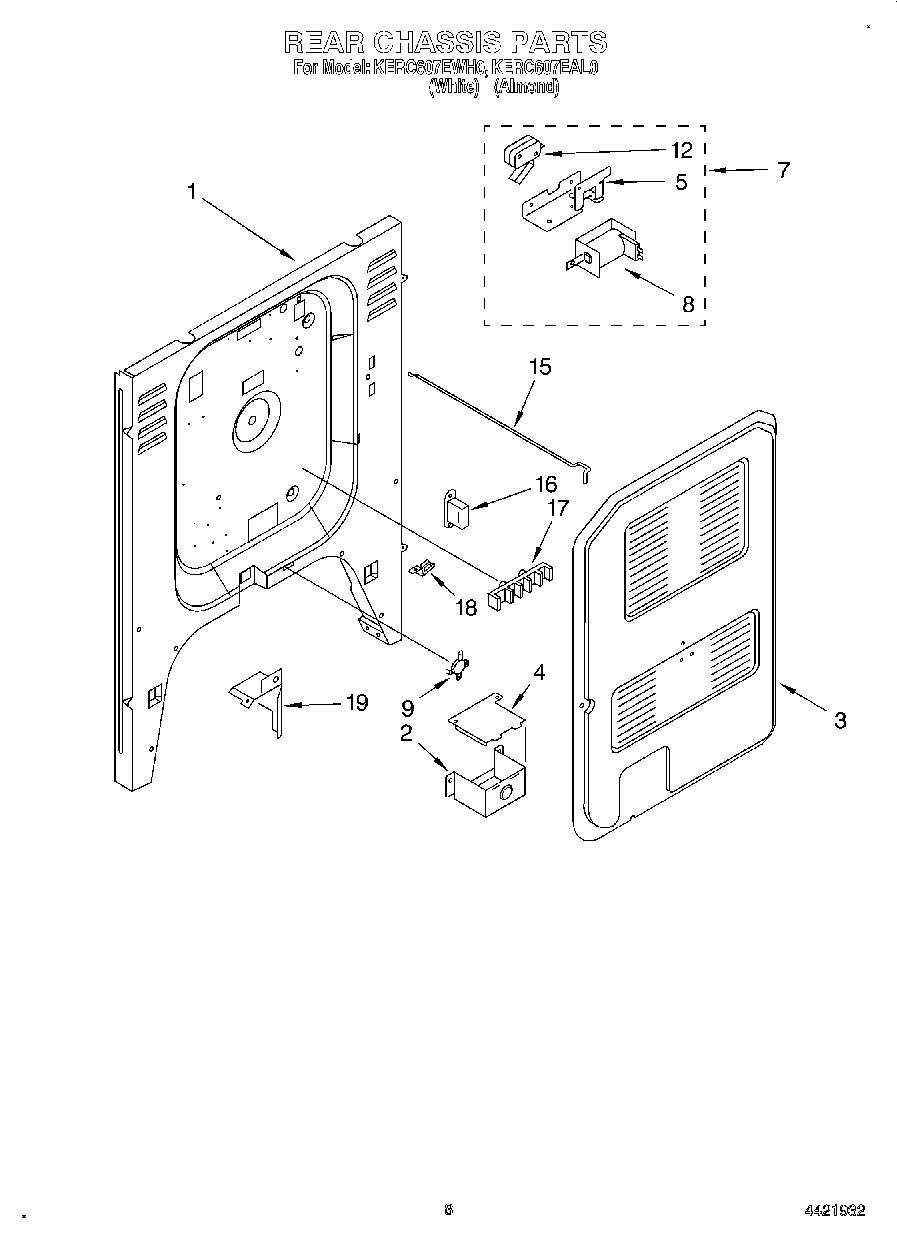

KERC607EWH0 06 – REAR CHASSIS, LIT/OPTIONAL

Products

Position	Product
	WPL LIT9752014
	WPL LIT9752043
	WPL LIT9752390
	WPL 9750376
	WPL LIT9751598
	WPL 9781486
	WPL 9752343
	WPL 9752036
	Quick Set (Oven)
	WPL 9751868
	WPW10339879 Whirlpool Wire Tie
	Lead, Ballast
	WPL 9751750
	8528351 Whirlpool Clip
	WPL 9751837
	WPL 9752366
	WPL LIT9751685
	WPL LIT9780959
1	Back panel, Chassis
2	WPL 9752344
3	Panel, Rear Cover
3	Screw, (2) 10 x 3/8
4	Cover, Terminal Box
5	Bracket, Lock
7	Oven Lock Assembly
8	Washer
8	Screw, (2) 10-32 x 5/16
8	Solenoid
9	Fuse, Safety
12	Screw, (2)
12	Switch, Interlock
12	Nut (2)
15	Rod, Lock
16	Ballast
17	WP112432 Whirlpool Nut Assembly
17	Screw, (2) 10-16 x 1
17	WP8203546 Whirlpool Terminal Block
18	Ground Strap
18	Clip, Ground Wire
18	SCREW
19	Insulation, Rear
19	1
19	WP4159387 Whirlpool Compactor Screw
19	Insulation, Wrap
19	Grease
19	Golden Harvest (Uncut)
19	WPL 9751798
19	8212471 Whirlpool Oven Paint
19	Wire (14 Ga. 200 c Brown)
19	18 Ga. 80~c Rating (Red)
19	WPL 799832
19	511873 Whirlpool Refrigerator Paint
19	350942 Whirlpool Spray Paint
19	WPL 72112
19	Platinum (Uncut)
19	Enamal, Toast (1 Qt. Uncut)
19	Paint, Spray (13 Oz.) (Platinum)
19	Toast
19	Golden Harvest
19	72113 Whirlpool Touch-Up Paint
19	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
19	Almond (Uncut)
19	WP72107 Whirlpool Touchup
19	799344 Whirlpool Refrigerator Paint
19	72017 Whirlpool Appliance Touch-Up Paint White
19	350956 Whirlpool Spray Assembly
19	FOIL, ALUMINUM OVEN (18“ X 25 )
19	WA906B Whirlpool Cooktop Glass Scraper
19	Wire, 25` Roll (Black 14 Ga.)
19	Wire (12 Ga. 150 c Black)
19	Wire (14 Ga. 150 c Yellow)
19	Wire (14 Ga. 150 c Orange)
19	Wire (14 Ga. 150 c Green)
19	Wire (14 Ga. 150 c Brown)
19	Wire (14 Ga. 150 c Blue)
19	242831 Whirlpool Oven Wire
19	WPL 9751745
19	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
19	Paint, Spray 13 Oz. (Avocado)
19	paint, spray 13 oz. (coffee)
19	Paint, Touch-Up 1/2 Oz. (Coffee)
19	72109 Whirlpool Dacor Avocado Touch-Up Paint
19	285006 Whirlpool Spray
19	Wire, 25“ Roll (White 14 GA.)
19	Wire, 25` Roll (Red 14 Ga.)
19	350930 Whirlpool White Spray Paint
