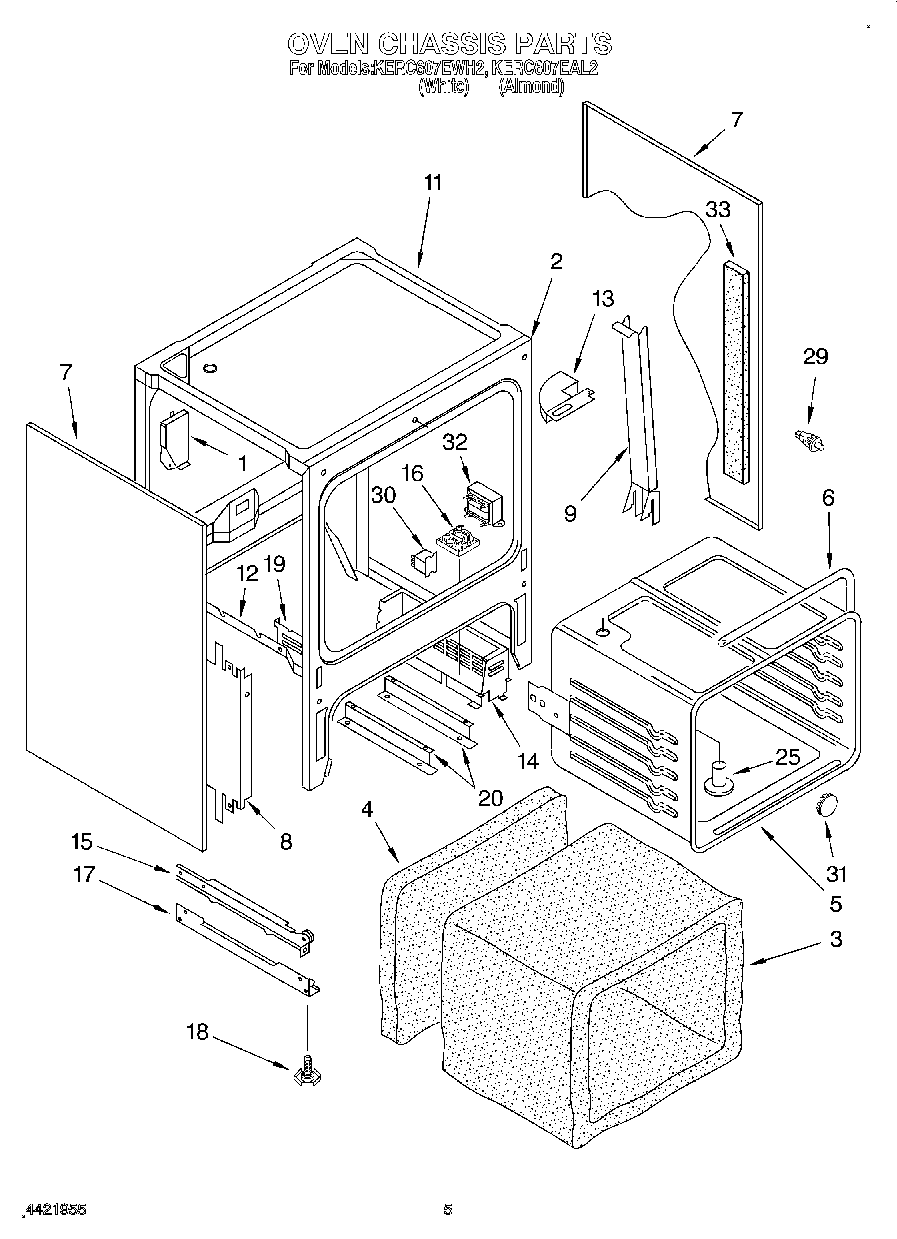

KERC607EWH2 04 – OVEN CHASSIS

Products

Position	Product
1	Vent Box, Oven
2	Chassis, Front
3	Insulation, Wrap
4	Insulation, Rear
5	Oven Liner
6	Gasket Oven
7	Oven , Side L or R (Almond)
7	Oven , Side L or R (White)
8	Shield, Insulation
9	Duct, Side Fan
11	Burner Box
11	Screw, (2)
12	Oven Bottom
13	Duct, Top
14	Support, Fan
15	Rail, Drawer (Right)
15	Drawer Rail, Left
16	Screw, (3) No.8 x 1“
16	Motor, Fan
17	Bottom Rail (2)
18	WPW10058460 Whirlpool Appliance Levelling Leg
19	Screw
19	Hinge, Receiver (2)
20	Support Rail, Pan
25	Vent Tube
29	Switch, Door
30	Relay, Dlb.
30	WP4159387 Whirlpool Compactor Screw
31	Button, Plug
32	WP9760588 Whirlpool Transformer
33	Insulation, Side
