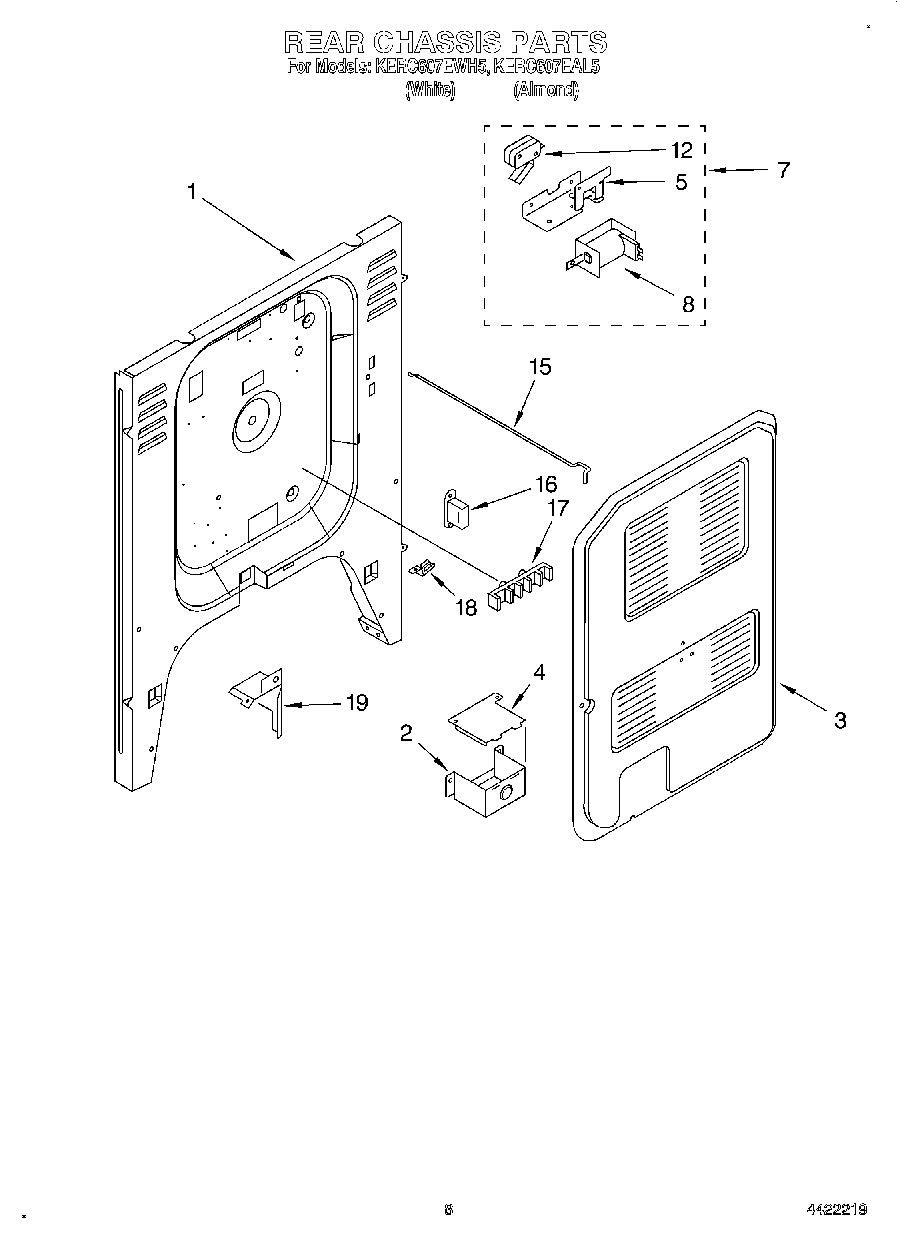

KERC607EWH5 05 – REAR CHASSIS

Products

Position	Product
1	Back panel, Chassis
2	WPL 9752344
2	Screw (4) 10 x 1/2
3	Panel, Rear Cover
3	Screw (4) 10 x 3/8
4	Cover, Terminal Box
5	Bracket, Lock
7	Oven Lock Assembly
8	Screw (2) 10-32 x 5/16
8	Washer (2)
8	Solenoid
12	Nut (2)
12	Screw, (2)
12	Switch, Interlock
15	Rod, Lock
16	Ballast
17	Screw, (2) 10-16 x 1
17	WP8203546 Whirlpool Terminal Block
17	WP112432 Whirlpool Nut Assembly
18	Ground Strap
18	Clip, Ground Wire
18	SCREW
19	WPL 9751798
19	WP4159387 Whirlpool Compactor Screw
