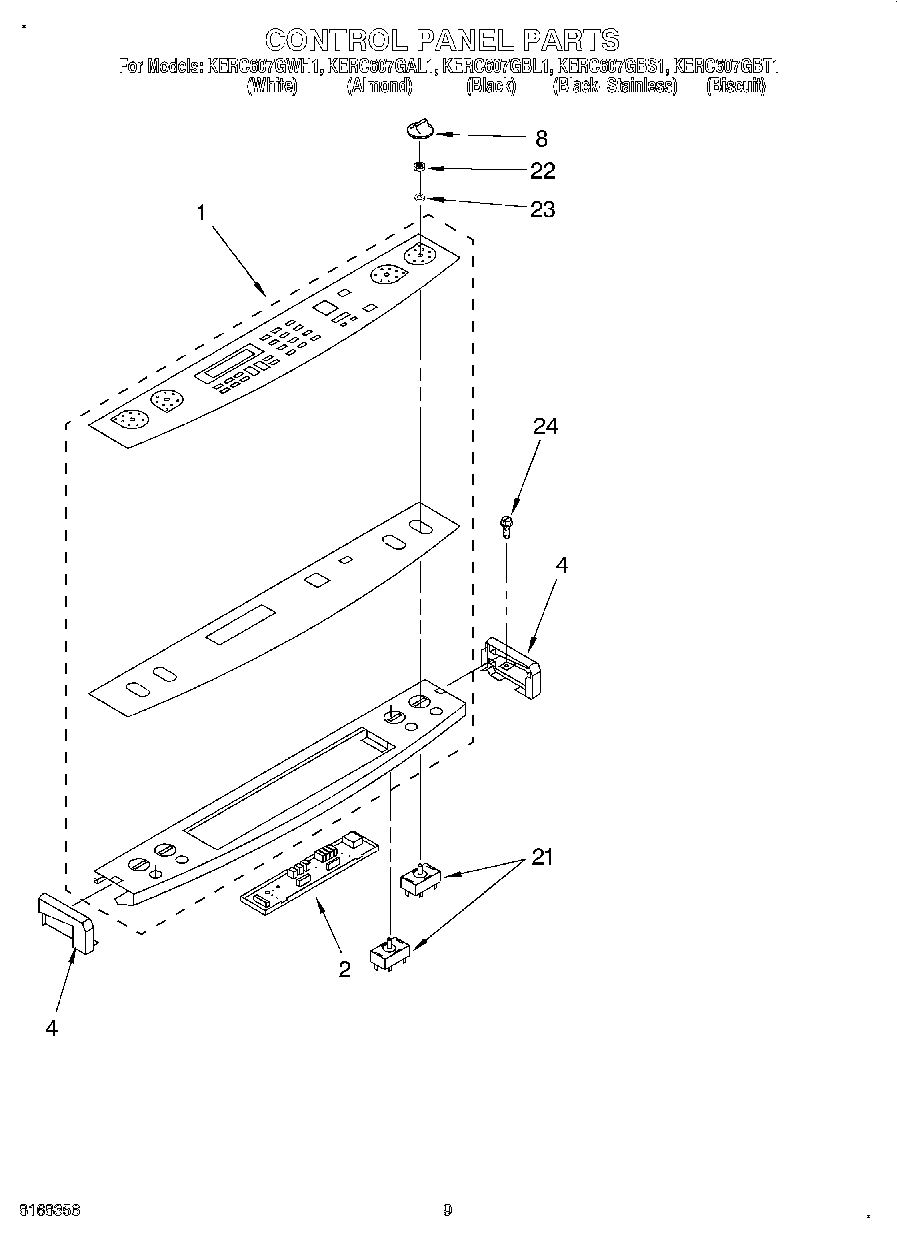

KERC607GAL1 06 – CONTROL PANEL, LIT/OPTIONAL

KERC607GAL1 06 – CONTROL PANEL, LIT/OPTIONAL

Written by

in

KERC607GAL1 06 – CONTROL PANEL, LIT/OPTIONAL

Products

Position	Product
	WPL LIT9753309
	WPL 9750376
	WPL 9781767
	WPL 9781769
	WPL LIT9753027
	WPL LIT9753028
	WPL 9781822
	WPL LIT9752775
	WPW10339879 Whirlpool Wire Tie
	WPL LIT9752043
	WPL 9751868
	WPL 9752343
	Safer Cooking Tips
	Literature Parts (Smart & Easy Guide)
	WPL 9752953
	WPL 9751750
	WPL 9752946
	WPL 9751139
	Literature Parts (Cookbook (T/C Oven))
	3400964 Whirlpool Oven Clip
	SCREW
	WPL 9781656
1	Console, Glass (Washer)
1	Console, Glass (Stainless)
1	Console, Glass (Black)
1	Console, Glass (Biscuit)
1	Console, Glass (Almond)
1	Console, Glass (White)
2	Timer, Electronic
2	Screw
4	Console, Glass (Spacer)
4	End Cap (Left Hand) (Almond)
4	End Cap (Left Hand) (White)
4	End Cap (White, Right)
4	End Cap (Black, Left)
4	End Cap (Black, Right)
4	End Cap (Biscuit, Left)
4	End Cap (Biscuit, Right)
4	End Cap Right Hand (Almond)
8	WP9750372FF Whirlpool Knob
8	WP9750372FC Whirlpool Knob
8	WP9750372FW Whirlpool Knob Assembly
8	Knobs, Control (4) (Almond)
21	8203536 Whirlpool Infinite Switch Primary
21	Switch, Infinite (2100-2600W, LF)
21	Switch, Infinite (1700W, RF)
21	Switch, Infinite (1250-1500W, LR)
22	Nut, Mounting (Dual Element)
22	Nut, Mounting (Single Element)
23	Seal, Switch (4)
24	350930 Whirlpool White Spray Paint
24	Paint, Spray (13 Oz.) (Platinum)
24	Enamal, Toast (1 Qt. Uncut)
24	Insulation, Wrap
24	Platinum (Uncut)
24	WPL 72112
24	350942 Whirlpool Spray Paint
24	4392899 Whirlpool Biscuit Touch-Up Paint
24	4392901 Whirlpool Biscuit Spray Paint
24	511873 Whirlpool Refrigerator Paint
24	Golden Harvest (Uncut)
24	Insulation, Rear
24	350956 Whirlpool Spray Assembly
24	72017 Whirlpool Appliance Touch-Up Paint White
24	799344 Whirlpool Refrigerator Paint
24	WP72107 Whirlpool Touchup
24	Almond (Uncut)
24	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
24	72113 Whirlpool Touch-Up Paint
24	Golden Harvest
24	Toast
24	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
24	WPL 799832
24	Wire, 25` Roll (Black 14 Ga.)
24	Wire (14 Ga. 150 c Blue)
24	Wire (12 Ga. 150 c Black)
24	Wire (14 Ga. 150 c Brown)
24	Wire (14 Ga. 150 c Green)
24	8212471 Whirlpool Oven Paint
24	Wire (14 Ga. 150 c Orange)
24	Wire (14 Ga. 150 c Yellow)
24	18 Ga. 80~c Rating (Red)
24	1
24	242831 Whirlpool Oven Wire
24	WPL 9751745
24	Wire, 25` Roll (Red 14 Ga.)
24	Wire, 25“ Roll (White 14 GA.)
24	285006 Whirlpool Spray
24	72109 Whirlpool Dacor Avocado Touch-Up Paint
24	Paint, Touch-Up 1/2 Oz. (Coffee)
24	paint, spray 13 oz. (coffee)
24	Paint, Spray 13 Oz. (Avocado)
24	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
24	WP4159387 Whirlpool Compactor Screw
24	Wire (14 Ga. 200 c Brown)
