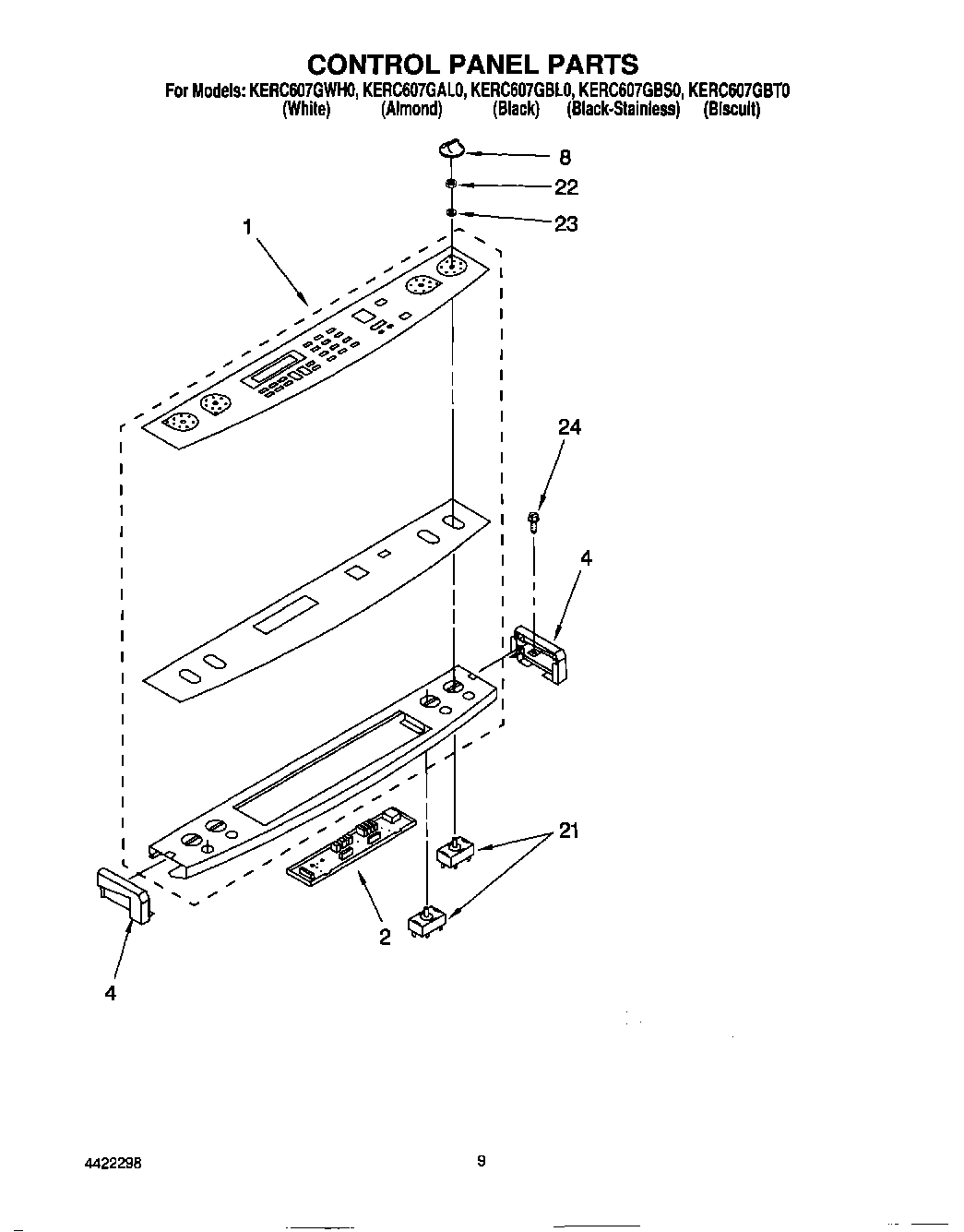

KERC607GBL0 06 – CONTROL PANEL, LIT/OPTIONAL

KERC607GBL0 06 – CONTROL PANEL, LIT/OPTIONAL

Written by

in

KERC607GBL0 06 – CONTROL PANEL, LIT/OPTIONAL

Products

Position	Product
	Literature Parts (Cookbook (T/C Oven))
	WPL 9752036
	WPL 9781767
	WPW10339879 Whirlpool Wire Tie
	WPL 9781769
	WPL 9781486
	WPL 9781656
	WPL LIT9752775
	WPL LIT9753027
	WPL LIT9752043
	WPL 9751868
	WPL LIT9753309
	Safer Cooking Tips
	WPL 9752953
	WPL 9752343
	WPL 9752946
	WPL 9750376
	WPL 9751139
	Literature Parts (Smart & Easy Guide)
	WPL 9751750
	SCREW
	WPL LIT9753028
1	Console, Glass (Washer)
1	Console, Glass (Almond)
1	Console, Glass (Biscuit)
1	Console, Glass (Black)
1	Console, Glass (Stainless)
1	Console, Glass (White)
2	Timer, Electronic
2	Screw
4	End Cap (Left Hand) (Almond)
4	Console, Glass (Spacer)
4	End Cap Right Hand (Almond)
4	End Cap (Black, Left)
4	End Cap (White, Right)
4	End Cap (Biscuit, Right)
4	End Cap (Black, Right)
4	End Cap (Biscuit, Left)
4	End Cap (Left Hand) (White)
8	WP9750372FF Whirlpool Knob
8	WP9750372FC Whirlpool Knob
8	Knobs, Control (4) (Almond)
8	WP9750372FW Whirlpool Knob Assembly
21	8203536 Whirlpool Infinite Switch Primary
21	Switch, Infinite (1700W, RF)
21	Switch, Infinite (1250-1500W, LR)
21	Switch, Infinite (2100-2600W, LF)
22	Nut, Mounting (Single Element)
22	Nut, Mounting (Dual Element)
23	Seal, Switch (4)
24	Paint, Spray (13 Oz.) (Platinum)
24	Enamal, Toast (1 Qt. Uncut)
24	Platinum (Uncut)
24	Toast
24	WPL 72112
24	350942 Whirlpool Spray Paint
24	4392899 Whirlpool Biscuit Touch-Up Paint
24	350930 Whirlpool White Spray Paint
24	350956 Whirlpool Spray Assembly
24	72017 Whirlpool Appliance Touch-Up Paint White
24	799344 Whirlpool Refrigerator Paint
24	WP72107 Whirlpool Touchup
24	Almond (Uncut)
24	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
24	72113 Whirlpool Touch-Up Paint
24	Golden Harvest
24	Insulation, Rear
24	Golden Harvest (Uncut)
24	Insulation, Wrap
24	4392901 Whirlpool Biscuit Spray Paint
24	511873 Whirlpool Refrigerator Paint
24	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
24	WP4159387 Whirlpool Compactor Screw
24	1
24	Wire (14 Ga. 200 c Brown)
24	WPL 9751745
24	Wire (12 Ga. 150 c Black)
24	Wire (14 Ga. 150 c Yellow)
24	Wire (14 Ga. 150 c Orange)
24	Wire (14 Ga. 150 c Green)
24	Wire (14 Ga. 150 c Brown)
24	242831 Whirlpool Oven Wire
24	8212471 Whirlpool Oven Paint
24	Paint, Spray 13 Oz. (Avocado)
24	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
24	WPL 799832
24	Wire, 25` Roll (Black 14 Ga.)
24	Wire, 25` Roll (Red 14 Ga.)
24	Wire, 25“ Roll (White 14 GA.)
24	285006 Whirlpool Spray
24	72109 Whirlpool Dacor Avocado Touch-Up Paint
24	Paint, Touch-Up 1/2 Oz. (Coffee)
24	paint, spray 13 oz. (coffee)
24	18 Ga. 80~c Rating (Red)
24	Wire (14 Ga. 150 c Blue)
