KERC607GBL1 01 – COOKTOP

KERC607GBL1 01 – COOKTOP

Written by

in

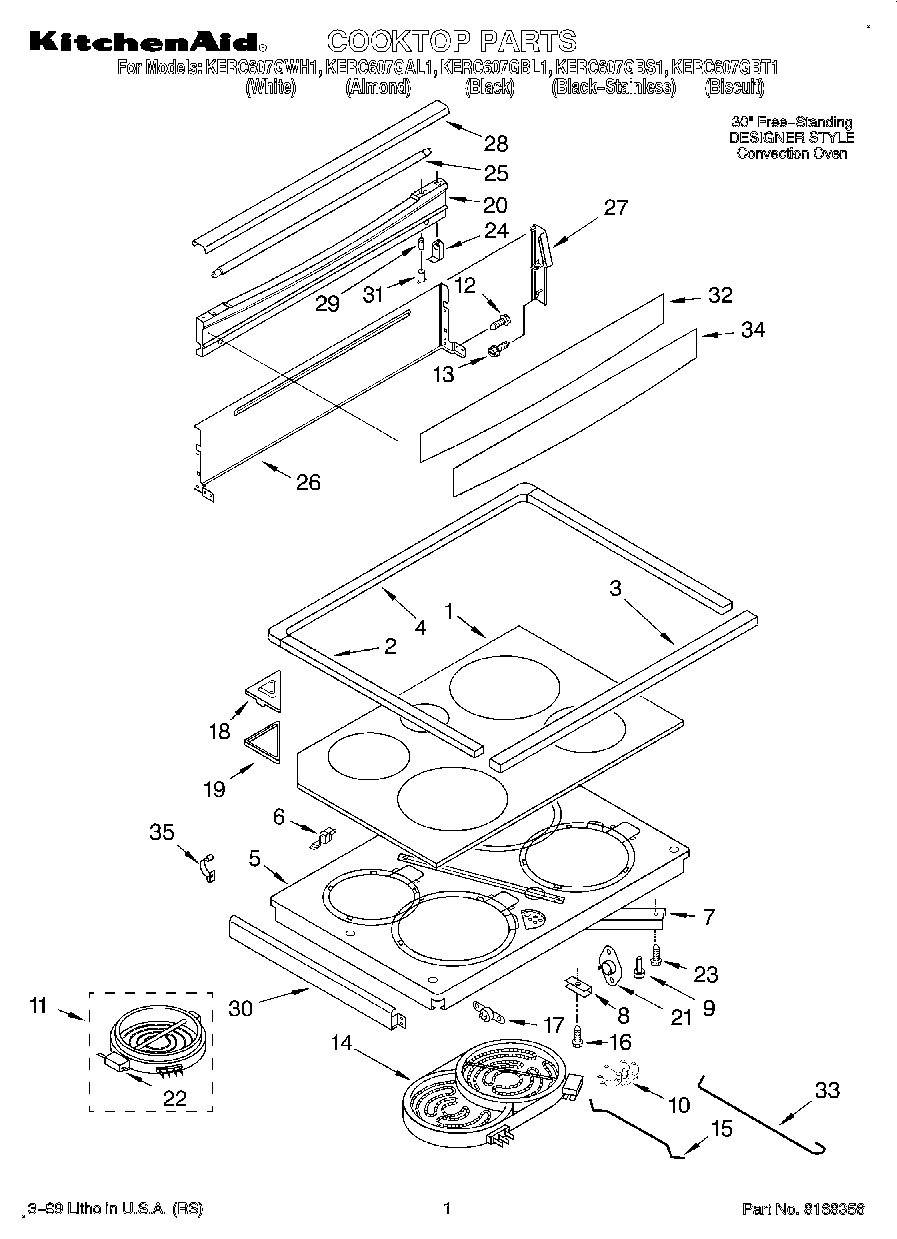

KERC607GBL1 01 – COOKTOP

Products

PositionProduct
1Cooktop, Ceran (Black)
1Cooktop, Ceran (White)
1Cooktop, Ceran (Almond)
2WP9780939 Whirlpool Cooktop Gasket
3Gasket, Console
4Rear Gasket
5Support, Element
6Bracket, Pivot
7Brace, Support
8Support Clip (4)
9238614 Whirlpool Bumper Hinge
10Hot Light
11W10823699 Whirlpool Right Front Surface Element
11Element, Surface (2500W – LF)
11W10823698 Whirlpool Surface Element Right Rear
12Back Splash (Screw (4) 10AB x 1/2“)
142500W – RR
15Rod, Large Ceran Element
16Screw, 10-16 x 1
17WP4159387 Whirlpool Compactor Screw
17Thermostat SPST (205)
18Cover, Vent
19Gasket, Vent Cover
20Backsplash (Black)
20Backsplash (White)
20Backsplash (Almond)
20Backsplash (Biscuit)
21WP9759944 Whirlpool Thermostat
22Limiter, Temp. (LR-RF-RR)
22Limiter, Temp. (LF)
23Screw (4) 10 x 1/2
24Receptacle, Lamp
25WP95292 Whirlpool Fluorescent Light Bulb
26Cover, Backsplash
27Endcap, Backsplash (Right Hand) (Biscuit)
27(Endcap, (Left Hand)) (Biscuit)
27Endcap, Backsplash (White (Right))
27Endcap, Backsplash (Almond (Right))
27(Endcap, Backsplash (Left Hand)) (White)
27Endcap, Backsplash (Black (Right))
27(Endcap, Backsplash (Left Hand)) (Almond)
27Endcap, Backsplash (Black (Left))
28Cover, Light (Biscuit)
28Cover, Light (Almond)
28Cover, Light (White)
28Cover, Light (Black)
29Starter, Light
30WPL 9751276PC
30WPL 9751276PB
30WPL 9751275PC
30Trim, Cooktop (Black (Right))
30Trim, Cooktop (Almond (Right))
30(Trim, Cooktop (Left Hand)) (White)
30Trim, Cooktop (Left Hand) (Almond)
30Trim, Cooktop (White (Right))
31Starter, Holder
32WP9753292 Whirlpool Backsplash Glass
32Glass, Backsplash
33Rod, Small Ceran Element
34WPL 9753291
358528351 Whirlpool Clip
