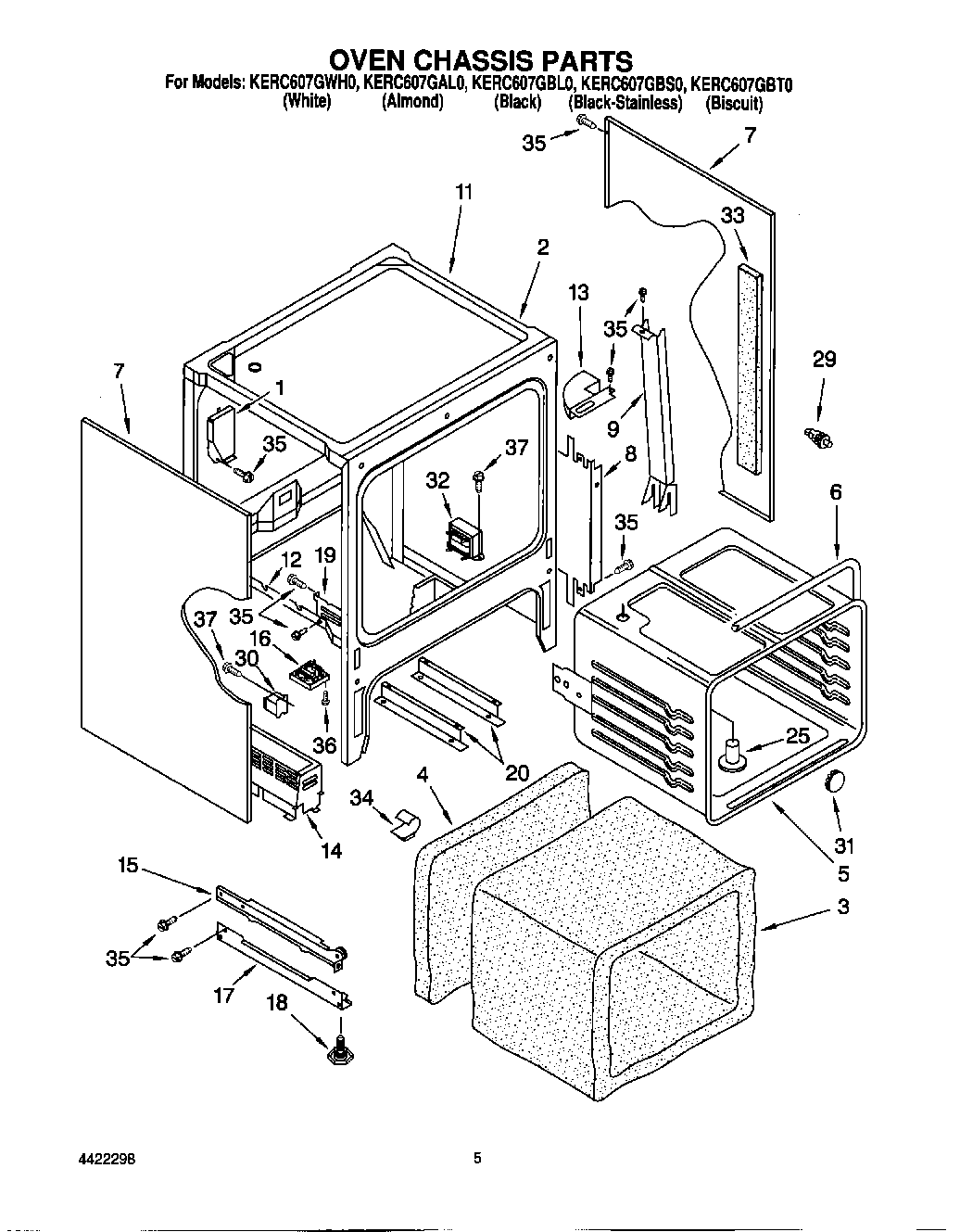

KERC607GBT0 03 – OVEN CHASSIS

Products

PositionProduct
1Vent Box, Oven
2Chassis, Front
3Insulation, Wrap
4Insulation, Rear
5Oven Liner
6Gasket, Oven
7Oven , Side L or R (Black)
7Oven , Side L or R (Almond)
7Oven , Side L or R (Biscuit)
7Oven , Side L or R (White)
8Shield, Insulation
9Duct, Side Fan
11Burner Box
12Oven Bottom
13Duct, Top
14Support, Fan
15Rail, Drawer (Right)
15Drawer Rail, Left
16Motor, Fan
17Bottom Rail (2)
18WPW10058460 Whirlpool Appliance Levelling Leg
19Hinge, Receiver (2)
20Support Rail, Pan
25Vent Tube
29Switch, Door
30Relay, Dlb.
31Button, Plug
32WP9760588 Whirlpool Transformer
33Insulation, Side
34Clip, Wire
35WP4159387 Whirlpool Compactor Screw
36Screw, (3) No.8 x 1“
37Screw
