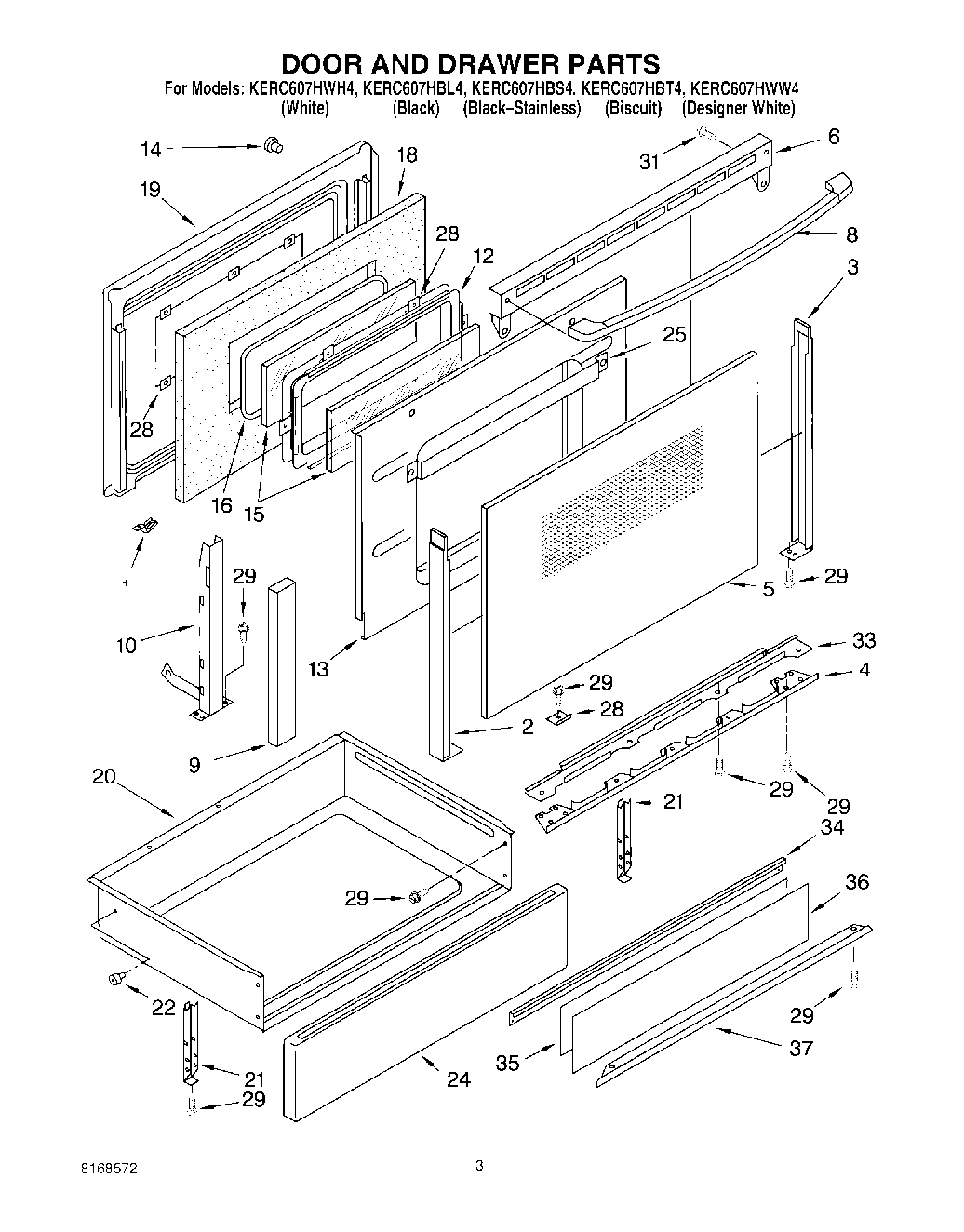

KERC607HBL4 02 – DOOR AND DRAWERadmin2025-04-26T09:53:38+00:00KERC607HBL4 02 – DOOR AND DRAWER
Products
| Position | Product |
|---|
| 1 | Retainer, Glass |
| 2 | Trim, Door-Left (White) |
| 2 | Trim, Door-Left (Biscuit) |
| 2 | Trim, Door-Left (Almond) |
| 2 | Trim, Door-Left (Black) |
| 3 | Trim, Door-Right (Black) |
| 3 | Trim, Door-Right (Almond) |
| 3 | Trim, Door-Right (White) |
| 3 | Trim, Door-Right (Biscuit) |
| 4 | Trim, Door Bottom (White) |
| 4 | Trim, Door Bottom (Black) |
| 4 | Trim, Door Bottom (Almond) |
| 4 | Trim, Door Bottom (Biscuit) |
| 5 | Glass, Door (Black) |
| 5 | Glass, Door Front (Biscuit) |
| 5 | Glass, Door (Almond) |
| 5 | Glass, Door Front (White) |
| 5 | Glass, Door (Black Stainless) |
| 6 | Vent, Door (Gasket, Vent) |
| 6 | Vent, Door (White) |
| 6 | Vent, Door (Almond) |
| 6 | Vent, Door (Biscuit) |
| 6 | Vent, Door (Black) |
| 6 | Vent, Door (Seal, Door Vent Side) |
| 8 | Handle, Door (Biscuit) |
| 8 | Handle, Door (Almond) |
| 8 | Handle, Door (White) |
| 8 | Handle, Door (Black) |
| 9 | Gasket, Door Glass |
| 10 | WP9782033 Whirlpool Door Hinge |
| 12 | Frame, Window |
| 13 | Shield, Door |
| 14 | 238614 Whirlpool Bumper Hinge |
| 15 | WP9781593 Whirlpool Door Glass |
| 16 | WP9755177 Whirlpool Wind Gasket |
| 18 | Insulation, Door |
| 19 | Liner, Door |
| 20 | Drawer & Roller |
| 20 | Drawer & Roller |
| 21 | Bracket, Drawer |
| 22 | 814229 Whirlpool Primary Roller |
| 24 | Front, Drawer (Biscuit) |
| 24 | Front, Drawer (Black Stainless) |
| 24 | Front, Drawer (White) |
| 24 | Front, Drawer (Almond) |
| 24 | Front, Drawer (Black) |
| 25 | Channel, Heat |
| 25 | WP90296 Whirlpool Clip |
| 28 | Spacer, Door (8) |
| 29 | WP4159387 Whirlpool Compactor Screw |
| 30 | Screw (4) 10 x 1/2 |
| 31 | WPW10001180 Whirlpool Refrigerator Screw |
| 33 | Deflector, Steam |
| 34 | WPL 9750614PB |
| 35 | WPL 9753329 |
| 36 | WPL 9753293 |
| 37 | WPL 9750613PB |
