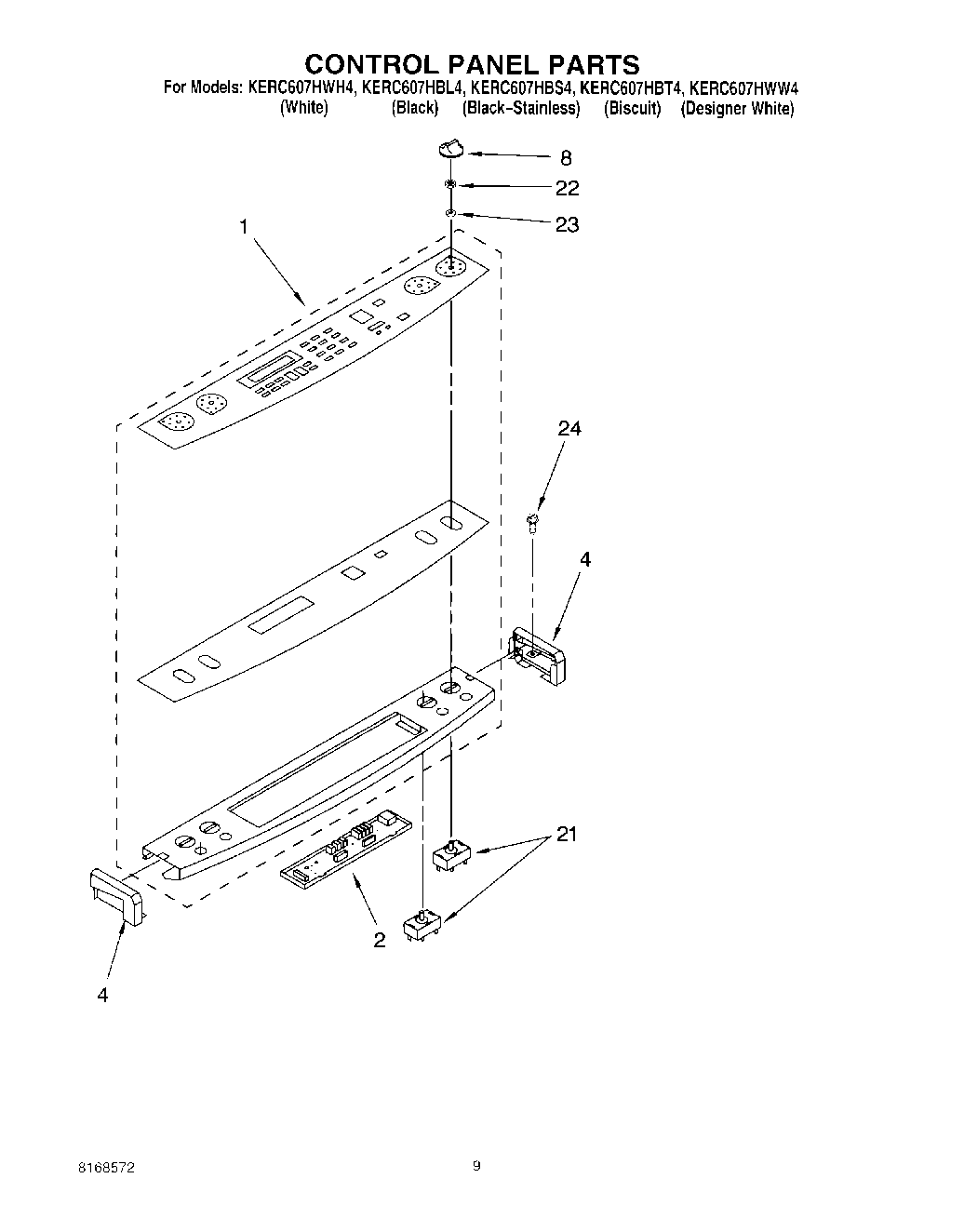

KERC607HBL4 06 – CONTROL PANEL
Written by
in
KERC607HBL4 06 – CONTROL PANEL
Products
Position
Product
1
Console, Glass (Black)
1
Console, Glass (Black Stainless)
1
Console, Glass (White)
1
Console, Glass (Biscuit)
2
Timer, Electronic
2
Screw
4
End Cap (Biscuit, Right)
4
End Cap (Black, Right)
4
End Cap (Biscuit, Left)
4
End Cap (White, Right)
4
End Cap (Black, Left)
4
End Cap (Left Hand) (White)
4
Console, Glass (Spacer)
8
WP9750372FC Whirlpool Knob
8
WP9750372FW Whirlpool Knob Assembly
8
WP9750372FF Whirlpool Knob
21
Switch, Infinite (2100-2600W, LF)
21
8203536 Whirlpool Infinite Switch Primary
21
Switch, Infinite (1250-1500W, LR)
21
Switch, Infinite (1700W, RF)
22
Nut, Mounting (Dual Element)
22
Nut, Mounting (Single Element)
23
Seal, Switch (4)
24
WP4159387 Whirlpool Compactor Screw
←
