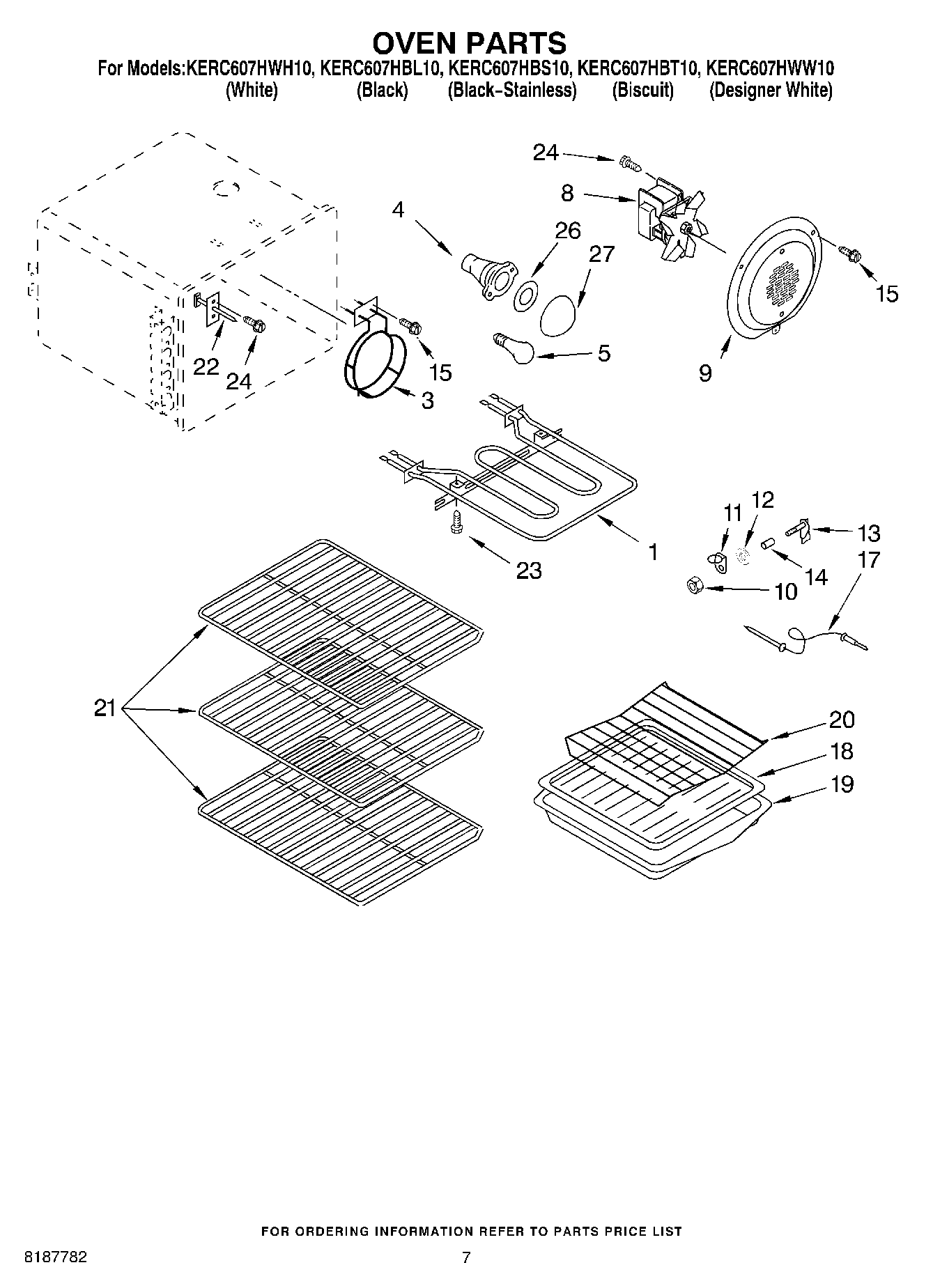

KERC607HBS10 04 – OVEN PARTS

Products

Position	Product
1	Element, Broil
3	WPW10280189 Whirlpool Element
4	W11594027 Whirlpool Range Oven Light Socket
5	RANGE ONLY 40W 120V APPL BULB
8	Fan Assembly
9	Baffle, Convection
10	Lock-Nut, Cvr.Jack
11	Jack Cover
12	Gasket
13	Receptacle, Probe
14	Spacer - Tubing
15	Screw
17	Probe
19	4396923 Whirlpool Broil Pan Set Gray Porcelain
20	Rack, Roasting
21	Rack, Standard (3)
22	Sensor
23	340184 Whirlpool Screw
24	Screw (4) 10 x 1/2
26	WP3184533 Whirlpool Range Light Lens Gasket
27	WP9781049 Whirlpool Light Lens
