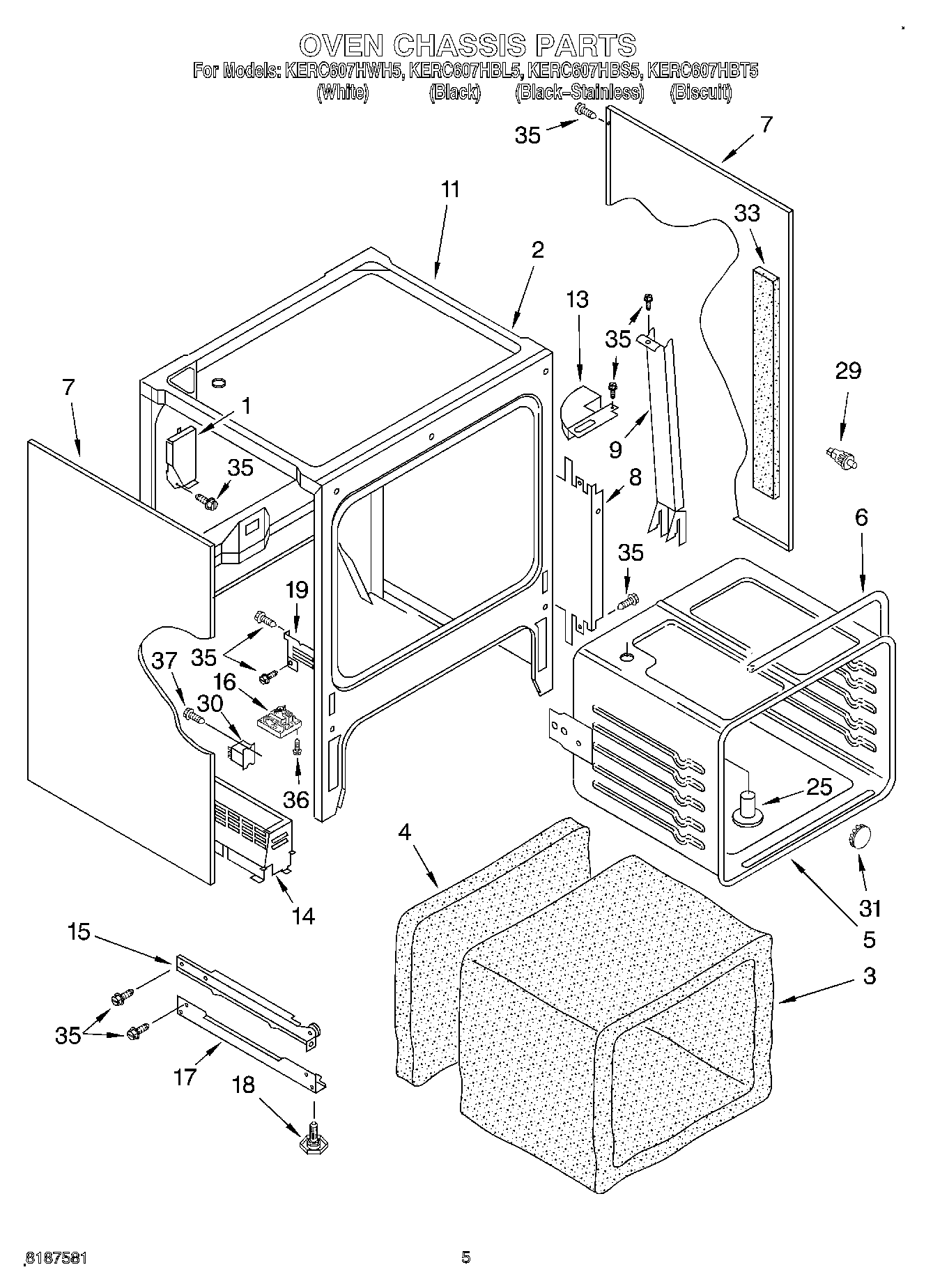

KERC607HBS5 03 – OVEN CHASSIS

Products

Position	Product
1	Vent Box, Oven
2	Chassis, Front
3	Insulation, Wrap
4	Insulation, Rear
5	Oven Liner
6	Gasket, Oven
7	Body, Side (White)
7	Body, Side (Black)
7	Body, Side (Biscuit)
8	Shield, Insulation
9	Duct, Side Fan
11	Burner Box
13	Duct, Top
14	Support, Fan
15	Drawer Rail, Left
15	Rail, Drawer (Right)
16	Motor, Fan
17	Bottom Rail (2)
18	WPW10058460 Whirlpool Appliance Levelling Leg
19	Hinge, Base L or R
25	Vent Tube
29	Switch, Door
30	Relay, Dlb.
31	Button, Plug
33	Insulation, Side
35	WP4159387 Whirlpool Compactor Screw
36	Screw, (3) No.8 x 1``
37	Screw
