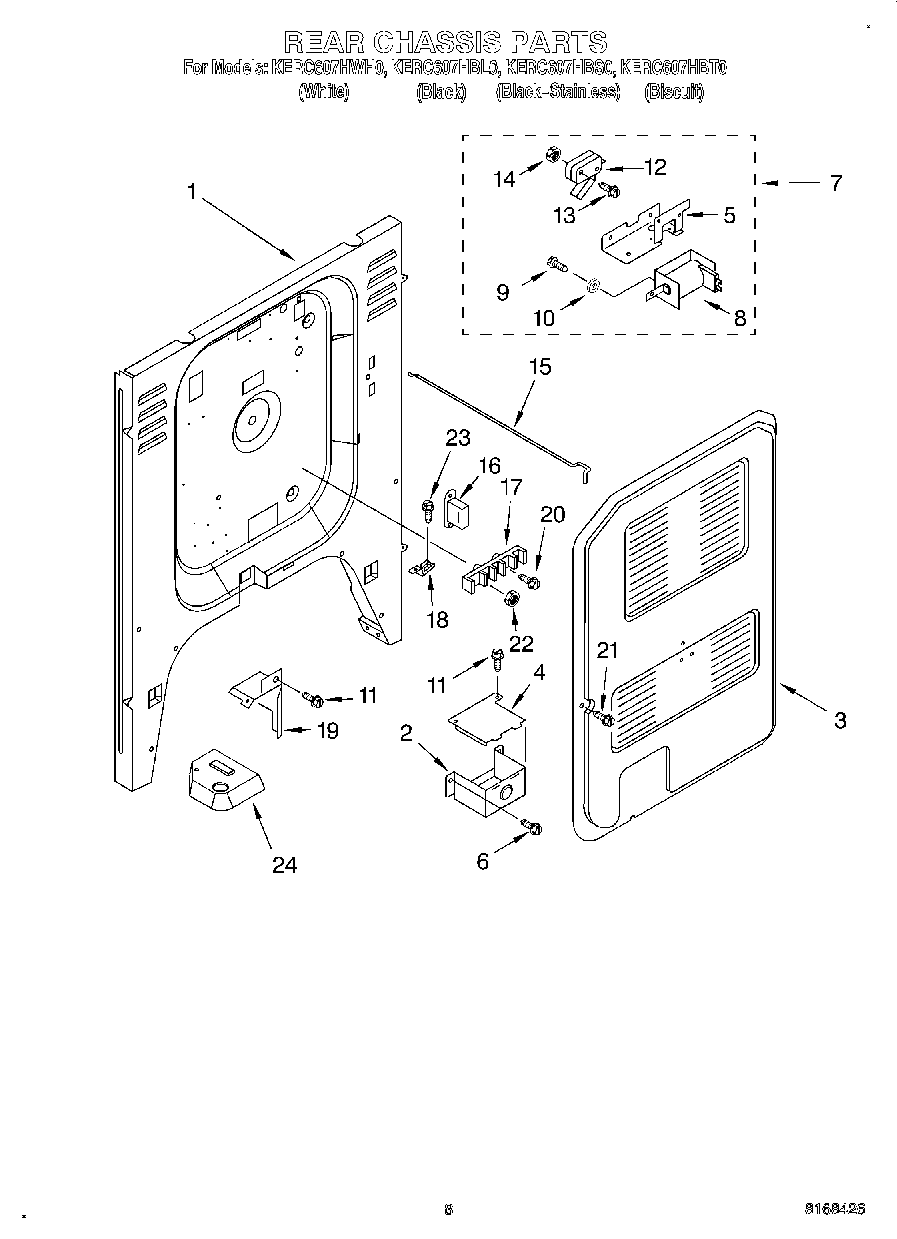

KERC607HBT0 05 – REAR CHASSIS

Products

Position	Product
1	Back panel, Chassis
2	WPL 9752344
3	Panel, Rear Cover
4	Cover, Terminal Box
5	Bracket, Lock
6	Screw (4) 10 x 1/2
7	Oven Lock Assembly
8	Solenoid
9	Screw (2) 10-32 x 5/16
10	Washer (2)
11	WP4159387 Whirlpool Compactor Screw
12	Switch, Interlock
13	Screw, (2)
14	Nut (2)
15	Rod, Lock
16	Ballast
17	WP8203546 Whirlpool Terminal Block
18	Ground Strap
18	Clip, Ground Wire
19	WPL 9751798
20	Screw, (2) 10-16 x 1
21	Screw (4) 10 x 3/8
22	WP112432 Whirlpool Nut Assembly
23	SCREW
24	Block, Balance
