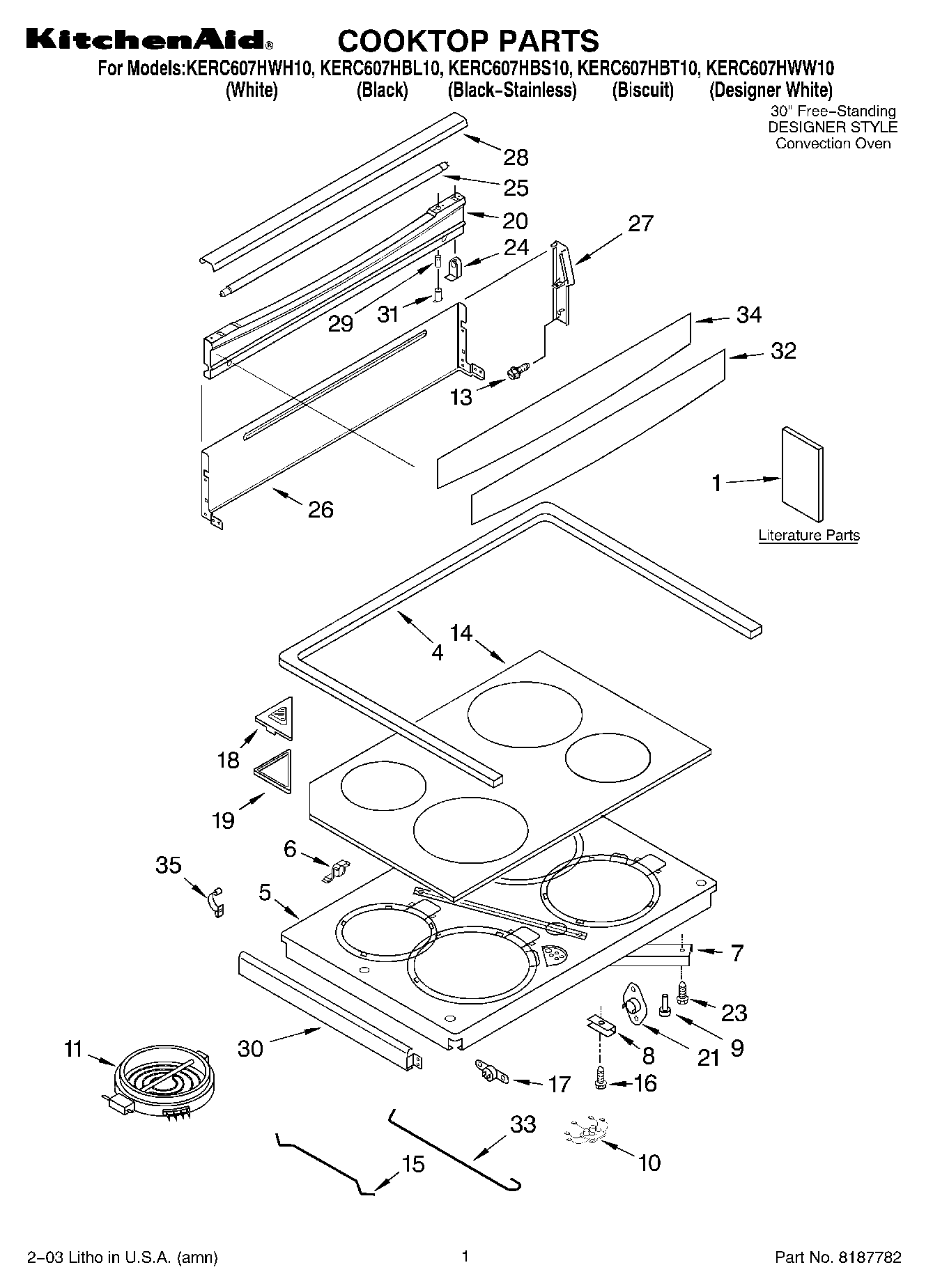

KERC607HBT10 01 – COOKTOP PARTS

KERC607HBT10 01 – COOKTOP PARTS

Written by

in

KERC607HBT10 01 – COOKTOP PARTS

Products

PositionProduct
1Safer Cooking Tips
1WPL LIT9752775
1Literature Parts (Easy Set Guide)
1Literature Parts (Use & Care Guide)
1Literature Parts (Tech Sheet)
1Literature Parts (Wiring Diagram)
1Literature Parts (Installation Instructions)
1Literature Parts (Guide, Use & Care (Sabbath Mode))
4Rear Gasket
5Support, Element
6Washer, Pivot
6Bracket, Pivot
7Brace, Support
8Support Clips (4)
9238614 Whirlpool Bumper Hinge
10Hot Light
11W10823692 Whirlpool Dual Radiant Element
11W10823697 Whirlpool Surface Element
11W10823699 Whirlpool Right Front Surface Element
11W10823698 Whirlpool Surface Element Right Rear
14Cooktop, Ceran (White)
14Cooktop, Ceran (Black)
14Cooktop, Ceran (Designer White)
14Cooktop, Ceran (Biscuit)
15Rod, Large Ceran Element
16Screw, 10-16 x 1
17WP4159387 Whirlpool Compactor Screw
17Thermostat SPST (205)
18Cover, Vent
19Gasket, Vent Cover
20Backsplash (White)
20Backsplash (Black)
20Backsplash (Biscuit)
21WP9759944 Whirlpool Thermostat
23Screw (4) 10 x 1/2
24Receptacle, Light
25WP95292 Whirlpool Fluorescent Light Bulb
26Cover, Backsplash
27Endcap, Backsplash (Black, Right)
27Endcap, Backsplash (Biscuit, Right)
27Endcap, Backsplash (White, Left)
27Endcap, Backsplash (Biscuit, Left)
27Endcap, Backsplash (Black, Left)
27Endcap, Backsplash (White, Right)
28Cover, Light (Black)
28Cover, Light (Biscuit)
28Cover, Light (White)
29Starter, Light
30Trim, Cooktop (White (Right))
30Trim, Cooktop (Black (Right))
30WPL 9751275PC
30WPL 9751276PB
30WPL 9751276PC
30(Trim, Cooktop (Left Hand)) (White)
31Starter, Holder
32Glass, Backsplash
33Rod, Small Ceran Element
34WPL 9781987
358528351 Whirlpool Clip
