KERC607HWH0 01 – COOKTOP, LITERATURE

KERC607HWH0 01 – COOKTOP, LITERATURE

Written by

in

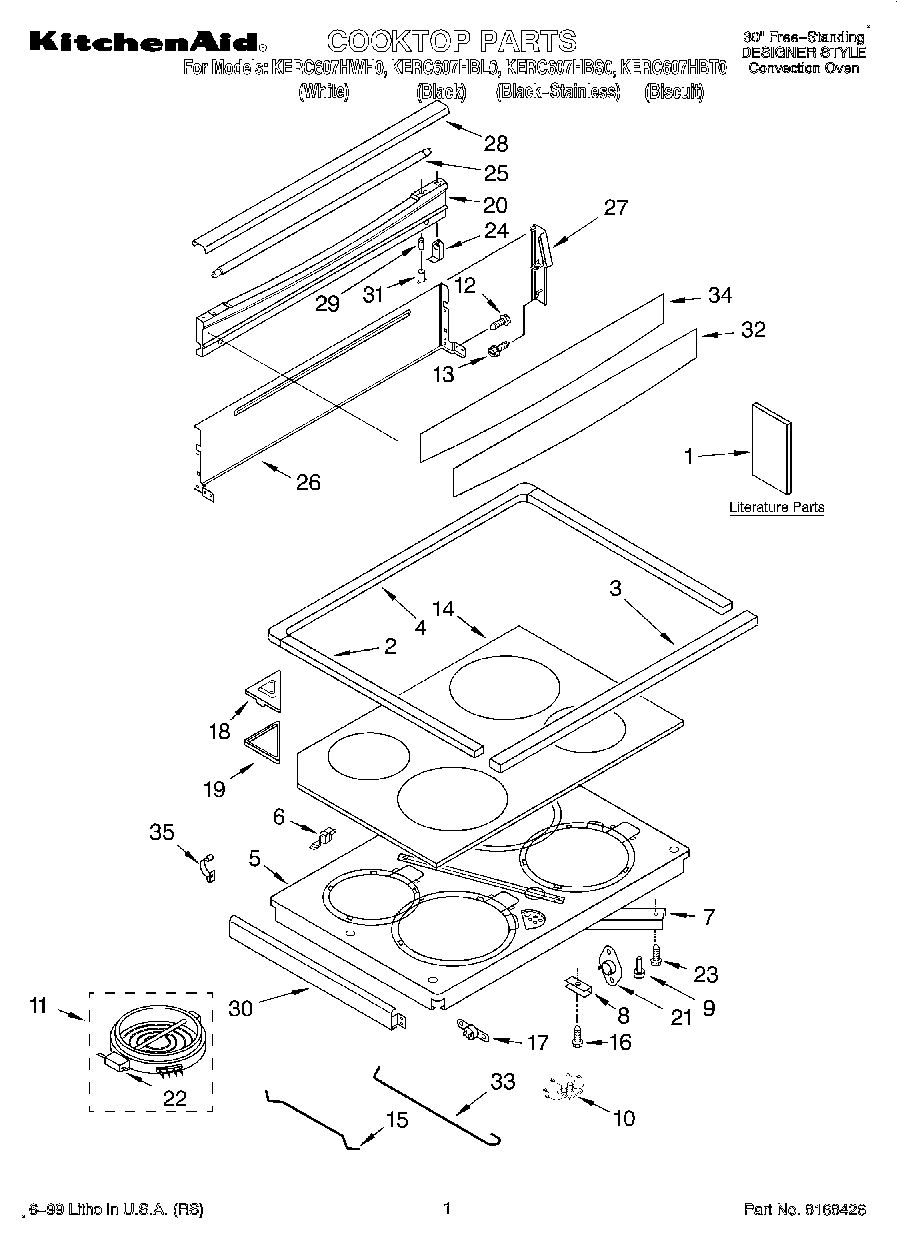

KERC607HWH0 01 – COOKTOP, LITERATURE

Products

PositionProduct
1Safer Cooking Tips
1Literature Parts (Smart & Easy Guide)
1WPL LIT9752775
1WPL LIT9753027
1WPL LIT9753028
1WPL LIT9752043
1Literature Parts (Cookbook (T/C Oven))
1Literature Parts (Use & Care Guide)
2Gasket, Cooktop
3Gasket, Console
4Rear Gasket
5Support, Element
6Bracket, Pivot
7Brace, Support
8Support Clips (4)
9238614 Whirlpool Bumper Hinge
10Hot Light
11W10823692 Whirlpool Dual Radiant Element
11W10823698 Whirlpool Surface Element Right Rear
11Element, Surface (2200W – RR)
11W10823699 Whirlpool Right Front Surface Element
12Back Splash (Screw (4) 10AB x 1/2“)
14Cooktop, Ceran (White)
14Cooktop, Ceran (Black)
14Cooktop, Ceran (Biscuit)
15Rod, Large Ceran Element
16Screw, 10-16 x 1
17Thermostat SPST (205)
17WP4159387 Whirlpool Compactor Screw
18Cover, Vent
19Gasket, Vent Cover
20Backsplash (White)
20Backsplash (Black)
20Backsplash (Biscuit)
21WP9759944 Whirlpool Thermostat
22Limiter, Temp. (LR-RF-RR)
22Limiter, Temp. (LF)
23Screw (4) 10 x 1/2
24Receptacle, Light
25WP95292 Whirlpool Fluorescent Light Bulb
26Cover, Backsplash
27Endcap, Backsplash (Biscuit, Left)
27Endcap, Backsplash (White, Right)
27Endcap, Backsplash (White, Left)
27Endcap, Backsplash (Black, Right)
27Endcap, Backsplash (Biscuit, Right)
27Endcap, Backsplash (Black, Left)
28Cover, Light (Biscuit)
28Cover, Light (White)
28Cover, Light (Black)
29Starter, Light
30Trim, Cooktop (Black (Right))
30WPL 9751276PC
30Trim, Cooktop (White (Right))
30(Trim, Cooktop (Left Hand)) (White)
30WPL 9751276PB
30WPL 9751275PC
31Starter, Holder
32Glass, Backsplash
32WP9753292 Whirlpool Backsplash Glass
33Rod, Small Ceran Element
34WPL 9753291
358528351 Whirlpool Clip
