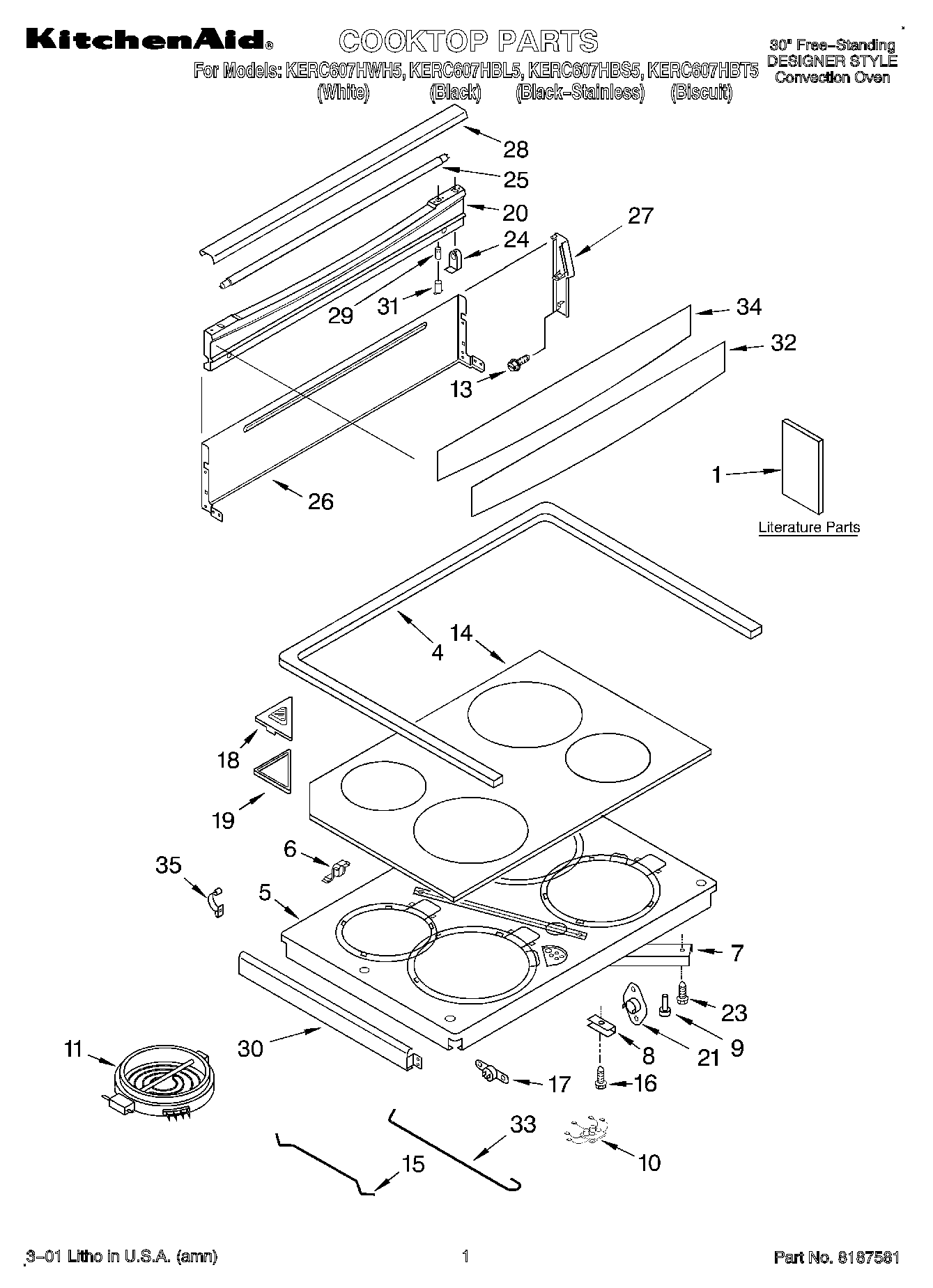

KERC607HWH5 01 – COOKTOP, LITERATURE

Products

Position	Product
1	Safer Cooking Tips
1	Literature Parts (Smart & Easy Guide)
1	Literature Parts (Use & Care Guide)
1	Literature Parts (Wiring Diagram)
1	WPL LIT9752775
1	WPL LIT9752043
1	Literature Parts (Tech Sheet)
4	Rear Gasket
5	Support, Element
6	Washer, Pivot
6	Bracket, Pivot
7	Brace, Support
8	Support Clips (4)
9	238614 Whirlpool Bumper Hinge
10	Hot Light
11	W10823697 Whirlpool Surface Element
11	W10823699 Whirlpool Right Front Surface Element
11	W10823692 Whirlpool Dual Radiant Element
11	W10823698 Whirlpool Surface Element Right Rear
14	Cooktop, Ceran (Biscuit)
14	Cooktop, Ceran (White)
14	Cooktop, Ceran (Black)
15	Rod, Large Ceran Element
16	Screw, 10-16 x 1
17	WP4159387 Whirlpool Compactor Screw
17	Thermostat SPST (205)
18	Cover, Vent
19	Gasket, Vent Cover
20	Backsplash (Black)
20	Backsplash (Biscuit)
20	Backsplash (White)
21	WP9759944 Whirlpool Thermostat
23	Screw (4) 10 x 1/2
24	Receptacle, Light
25	WP95292 Whirlpool Fluorescent Light Bulb
26	Cover, Backsplash
27	Endcap, Backsplash (White, Left)
27	Endcap, Backsplash (Biscuit, Right)
27	Endcap, Backsplash (Black, Right)
27	Endcap, Backsplash (White, Right)
27	Endcap, Backsplash (Black, Left)
27	Endcap, Backsplash (Biscuit, Left)
28	Cover, Light (Black)
28	Cover, Light (Biscuit)
28	Cover, Light (White)
29	Starter, Light
30	Trim, Cooktop (White (Right))
30	WPL 9751276PC
30	WPL 9751276PB
30	WPL 9751275PC
30	Trim, Cooktop (Black (Right))
30	(Trim, Cooktop (Left Hand)) (White)
31	Starter, Holder
32	Glass, Backsplash
33	Rod, Small Ceran Element
34	WPL 9753291
35	8528351 Whirlpool Clip
