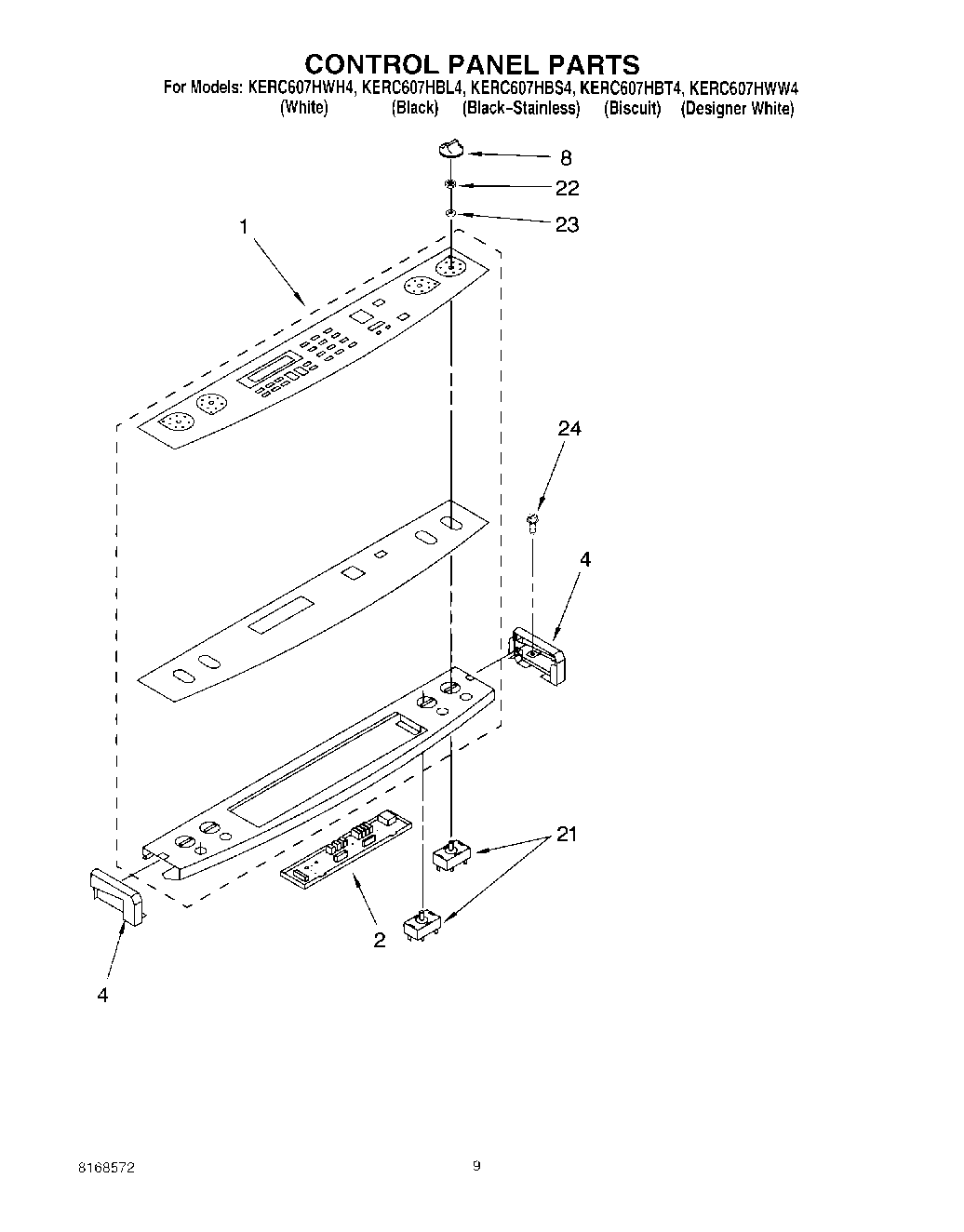

KERC607HWW4 06 – CONTROL PANEL

Products

Position	Product
1	Console, Glass (Black)
1	Console, Glass (Black Stainless)
1	Console, Glass (White)
1	Console, Glass (Biscuit)
2	Timer, Electronic
2	Screw
4	End Cap (Biscuit, Right)
4	End Cap (Black, Right)
4	End Cap (Biscuit, Left)
4	End Cap (White, Right)
4	End Cap (Black, Left)
4	End Cap (Left Hand) (White)
4	Console, Glass (Spacer)
8	WP9750372FC Whirlpool Knob
8	WP9750372FW Whirlpool Knob Assembly
8	WP9750372FF Whirlpool Knob
21	Switch, Infinite (2100-2600W, LF)
21	8203536 Whirlpool Infinite Switch Primary
21	Switch, Infinite (1250-1500W, LR)
21	Switch, Infinite (1700W, RF)
22	Nut, Mounting (Dual Element)
22	Nut, Mounting (Single Element)
23	Seal, Switch (4)
24	WP4159387 Whirlpool Compactor Screw
