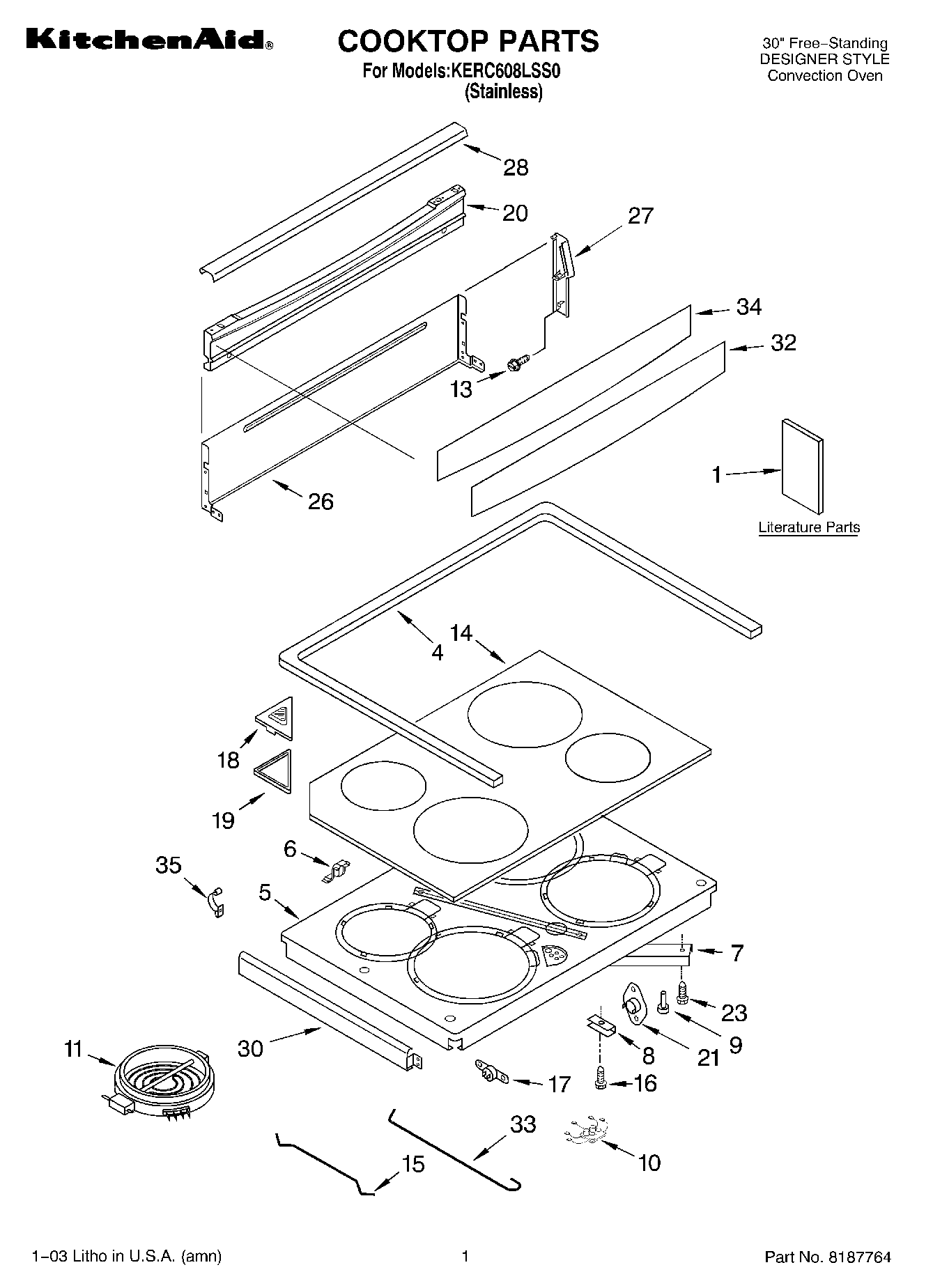

KERC608LSS0 01 – COOKTOP PARTS

Products

PositionProduct
1Safer Cooking Tips
1Literature Parts (Guide, Cleaner Use)
1Literature Parts (Wiring Diagram)
1Literature Parts (Tech Sheet)
1Literature Parts (Use & Care Guide)
1Literature Parts (Installation Instructions)
1WPL LIT9752775
1Literature Parts (Easy Set Guide)
4Rear Gasket
5Support, Element
6Bracket, Pivot
6Washer, Pivot
7Brace, Support
8Support Clips (4)
9238614 Whirlpool Bumper Hinge
10Hot Light
11W10823699 Whirlpool Right Front Surface Element
11W10823697 Whirlpool Surface Element
11W10823698 Whirlpool Surface Element Right Rear
11W10823692 Whirlpool Dual Radiant Element
14Cooktop, Ceran (Black)
15Rod, Large Ceran Element
16Screw, 10-16 x 1
17Thermostat SPST (205)
17WP4159387 Whirlpool Compactor Screw
18Cover, Vent
19Gasket, Vent Cover
20Backsplash (Black)
21WP9759944 Whirlpool Thermostat
23Screw (4) 10 x 1/2
26Cover, Backsplash
27Endcap, Backsplash (Black, Right)
27Endcap, Backsplash (Black, Left)
28Cover, Light (Black)
30WPL 9751276PB
30Trim, Cooktop (Black (Right))
32WPL 9782021
33Rod, Small Ceran Element
34WPL 9781987
358528351 Whirlpool Clip
