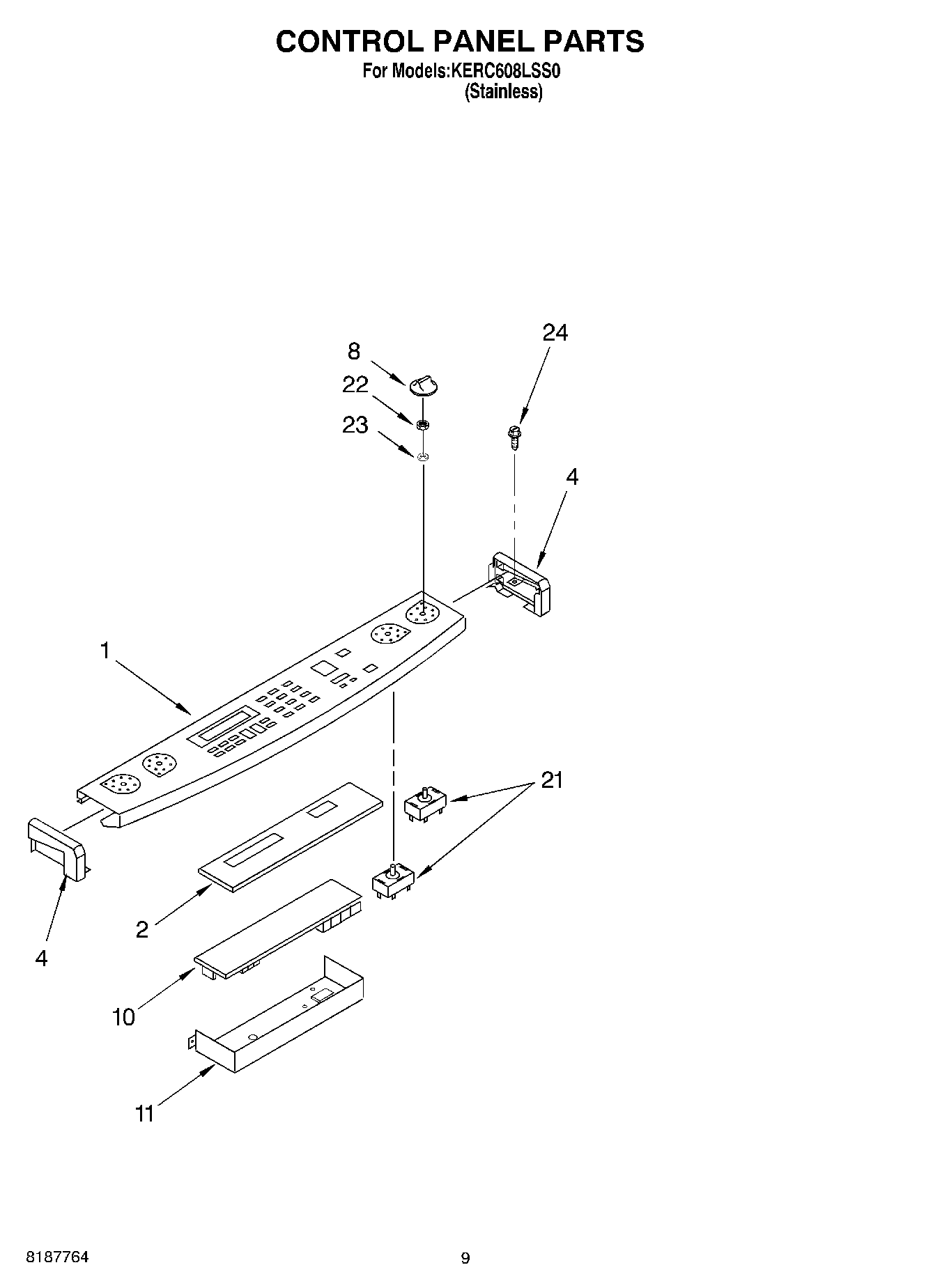

KERC608LSS0 06 – CONTROL PANEL PARTS

KERC608LSS0 06 – CONTROL PANEL PARTS

Written by

in

KERC608LSS0 06 – CONTROL PANEL PARTS

Products

PositionProduct
1Console, Glass (Black Stainless)
2Screw
2Board, Display
4End Cap (Black, Right)
4Console, Glass (Spacer)
4End Cap (Black, Left)
8WP9750372FF Whirlpool Knob
10Board, Power
11Shield, Control Panel
21Switch, Infinite (2100-2600W, LF)
21Switch, Infinite (1700W, RF)
21Switch, Infinite (1250-1500W, LR)
21WP9755175 Whirlpool Infinite Switch
22Nut, Mounting (Single Element)
23Seal, Switch (4)
24WP4159387 Whirlpool Compactor Screw
