KERC700LBL0 01 – COOKTOP, LITERATURE

KERC700LBL0 01 – COOKTOP, LITERATURE

Written by

in

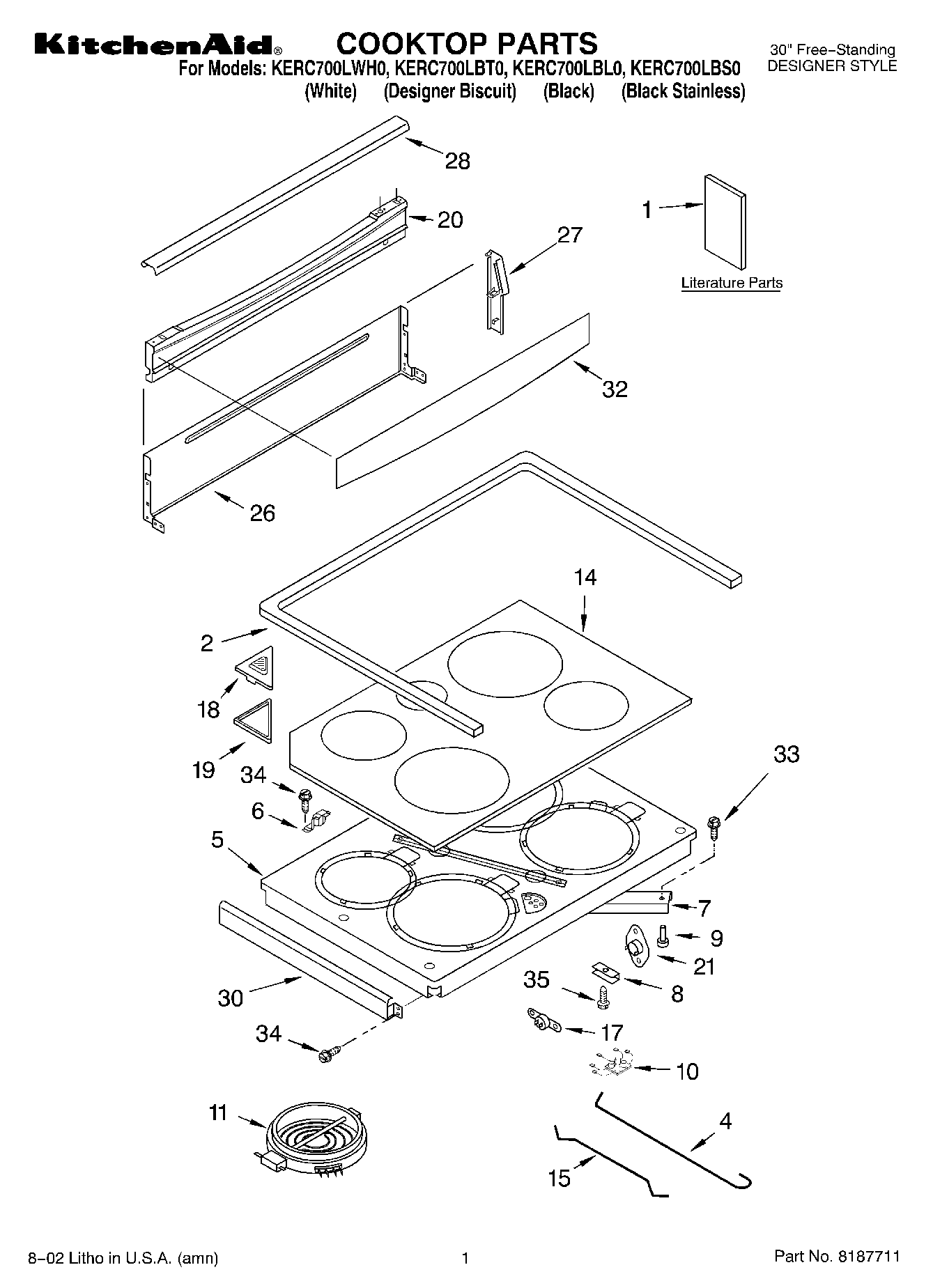

KERC700LBL0 01 – COOKTOP, LITERATURE

Products

PositionProduct
1Safer Cooking Tips
1Literature Parts (Tech Sheet)
1Literature Parts (Installation Instructions)
1Literature Parts (Wiring Diagram)
1Literature Parts (Use & Care Guide)
1WPL LIT9752775
2Rear Gasket
4Rod, Large Ceran Element
5Support, Element
6Bracket, Pivot
6Washer, Pivot
7Brace, Support
8Support Clips (4)
9238614 Whirlpool Bumper Hinge
10Hot Light
11W10823699 Whirlpool Right Front Surface Element
11W10823697 Whirlpool Surface Element
11W10823692 Whirlpool Dual Radiant Element
11W10823698 Whirlpool Surface Element Right Rear
14Cooktop, Ceran (Black)
14Cooktop, Ceran (Biscuit)
14Cooktop, Ceran (White)
15Rod, Small Ceran Element
17Thermostat SPST (205)
18Cover, Vent
19Gasket, Vent Cover
20Backsplash (White)
20Backsplash (Biscuit)
20Backsplash (Black)
21WP9759944 Whirlpool Thermostat
26Cover, Backsplash
27Endcap, Backsplash (White, Left)
27Endcap, Backsplash (Black, Right)
27Endcap, Backsplash (Biscuit, Left)
27Endcap, Backsplash (Black, Left)
27Endcap, Backsplash (Biscuit, Right)
27Endcap, Backsplash (White, Right)
28Cover, Light (Biscuit)
28Cover, Light (Black)
28Cover, Light (White)
30Trim, Cooktop (White (Right))
30(Trim, Cooktop (Left Hand)) (White)
30WPL 9751276PC
30WPL 9751276PB
30WPL 9751275PC
30Trim, Cooktop (Black (Right))
32WPL 9753910CB
32WPL 9753910CC
32WPL 9753910CW
32WPL 9781987
33Screw (4) 10 x 1/2
34WP4159387 Whirlpool Compactor Screw
35Screw, 10-16 x 1
