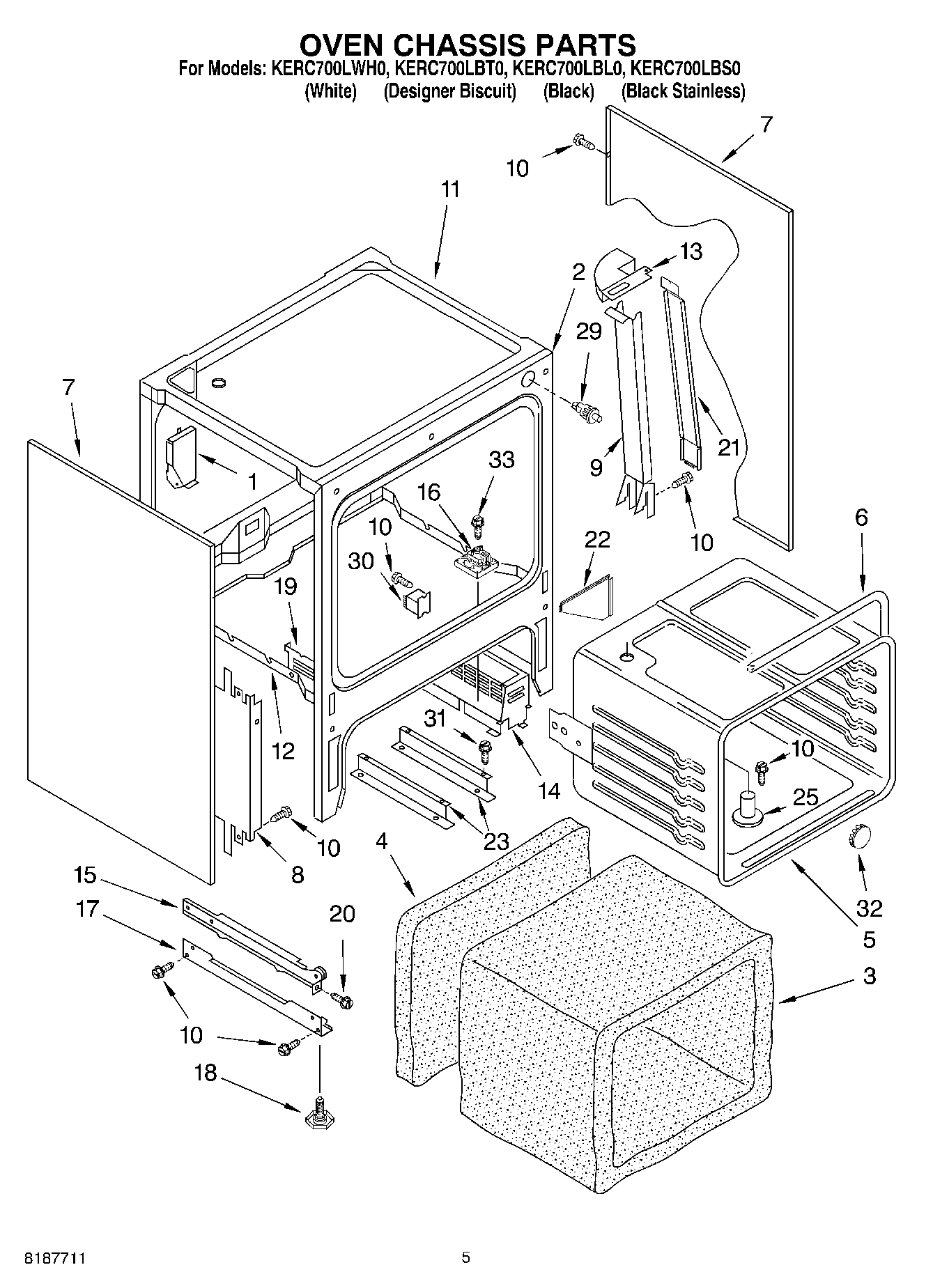

KERC700LBL0 03 – OVEN CHASSIS

KERC700LBL0 03 – OVEN CHASSIS

Written by

in

KERC700LBL0 03 – OVEN CHASSIS

Products

PositionProduct
1Vent Box, Oven
2Chassis, Front
3Insulation, Rear
4Insulation, Wrap
5Oven Liner
6Gasket, Oven
7Body, Side (Biscuit)
7Body, Side (White)
7Body, Side (Black)
8Shield, Insulation
9Duct, Side Fan
11Burner Box
12Oven Bottom
13Duct, Top
14Support, Fan
15Drawer Rail, Left
15Rail, Drawer (Right)
16Motor, Fan
17Bottom Rail (2)
18WPW10058460 Whirlpool Appliance Levelling Leg
19Hinge, Base L or R
20Screw (4) 10 x 1/2
21Fan Duct, Cover
22Shield, Heat
23Support Rail
25Vent Tube
29Door Switch
30Relay, Dlb.
31WP4159387 Whirlpool Compactor Screw
32Button, Plug
33Screw, (3) No.8 x 1“
