KERC700LBS0 06 – CONTROL PANEL, OPTIONAL

KERC700LBS0 06 – CONTROL PANEL, OPTIONAL

Written by

in

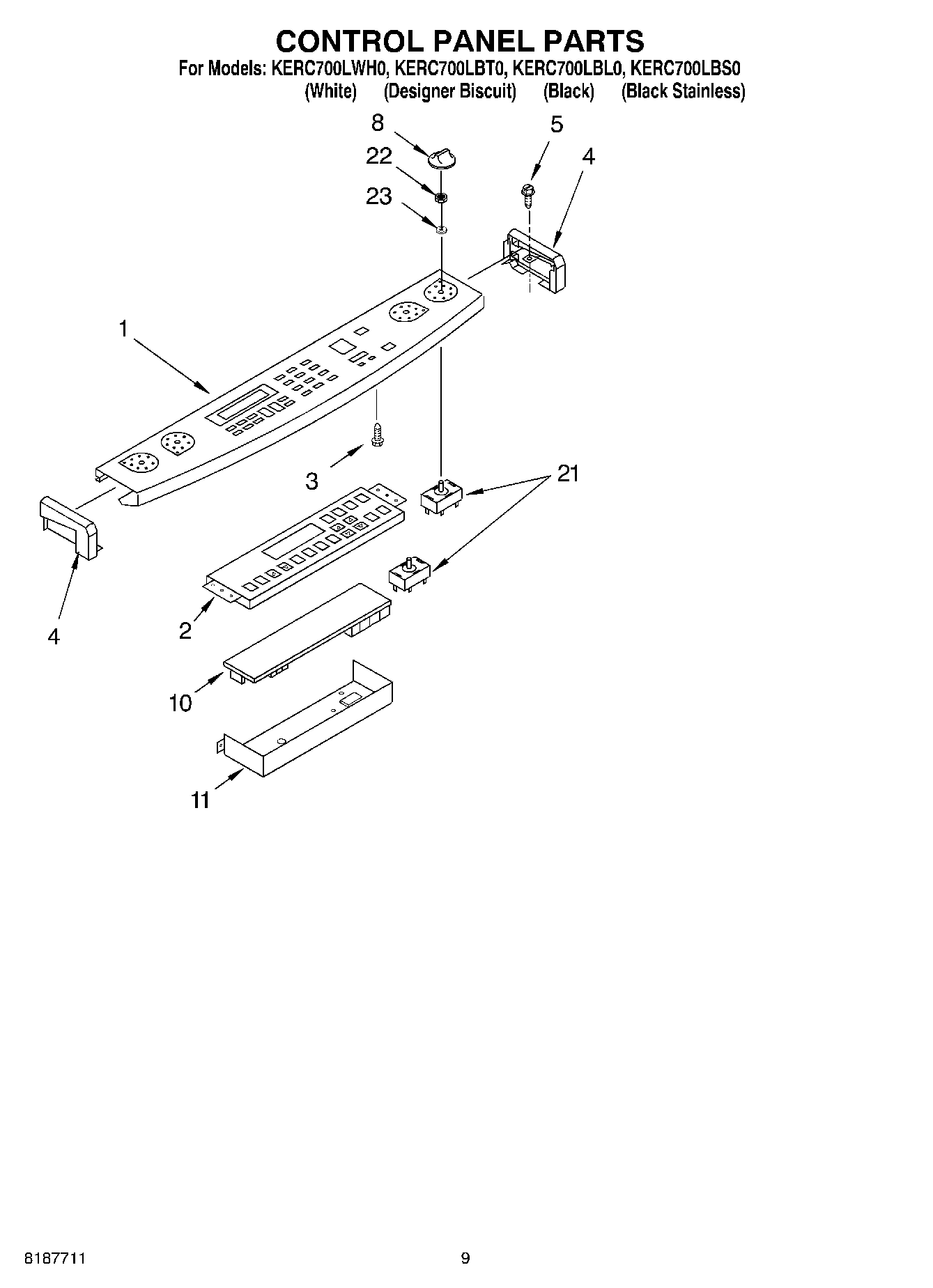

KERC700LBS0 06 – CONTROL PANEL, OPTIONAL

Products

Position	Product
1	Console, Glass (White)
1	Console, Glass (Black)
1	Console, Glass (Biscuit)
1	Console, Glass (Spacer)
2	Board, Display
3	Screw
4	End Cap (White, Right)
4	End Cap (Black, Left)
4	End Cap (Biscuit, Left)
4	End Cap (Biscuit, Right)
4	End Cap (Black, Right)
4	End Cap (Left Hand) (White)
5	WP4159387 Whirlpool Compactor Screw
8	WP9750372FW Whirlpool Knob Assembly
8	WP9750372FC Whirlpool Knob
8	WP9750372FF Whirlpool Knob
10	Board, Power
11	Shield, Control Panel
21	Switch, Infinite (2100-2600W, LF)
21	Switch, Infinite (1700W, RF)
21	WP9755175 Whirlpool Infinite Switch
21	Switch, Infinite (1250-1500W, LR)
22	Nut, Mounting (Single Element)
23	8212471 Whirlpool Oven Paint
23	WPL 9755121
23	Grease
23	Seal, Switch (4)
23	Wire (14 Ga. 150 c Blue)
23	WPL 9781769
23	WPL 9781655
23	WPL 9755120
23	350942 Whirlpool Spray Paint
23	WPL 9782443
23	WPL 9754366
23	WPL 9782183
23	WPL 9782111
23	WPL 9755193
23	WPL 9782462
23	WP9782182 Whirlpool Wire
23	WA906B Whirlpool Cooktop Glass Scraper
23	FOIL, ALUMINUM OVEN (18“ X 25 )
23	WPL 799832
23	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
23	511873 Whirlpool Refrigerator Paint
23	4392901 Whirlpool Biscuit Spray Paint
23	4392899 Whirlpool Biscuit Touch-Up Paint
23	SCREW
23	WP90016 Whirlpool Clip
23	Almond (Uncut)
23	WP72107 Whirlpool Touchup
23	799344 Whirlpool Refrigerator Paint
23	72017 Whirlpool Appliance Touch-Up Paint White
23	350956 Whirlpool Spray Assembly
23	Wire, 25` Roll (Black 14 Ga.)
23	Wire, 25` Roll (Red 14 Ga.)
23	Wire, 25“ Roll (White 14 GA.)
23	1
23	Wire (14 Ga. 200 c Brown)
23	18 Ga. 80~c Rating (Red)
23	Wire (12 Ga. 150 c Black)
23	Wire (14 Ga. 150 c Yellow)
23	Wire (14 Ga. 150 c Orange)
23	Wire (14 Ga. 150 c Green)
23	Wire (14 Ga. 150 c Brown)
23	242831 Whirlpool Oven Wire
23	Clip, Ground Wire
23	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
23	8528351 Whirlpool Clip
23	285006 Whirlpool Spray
23	WPW10339879 Whirlpool Wire Tie
23	350930 Whirlpool White Spray Paint
