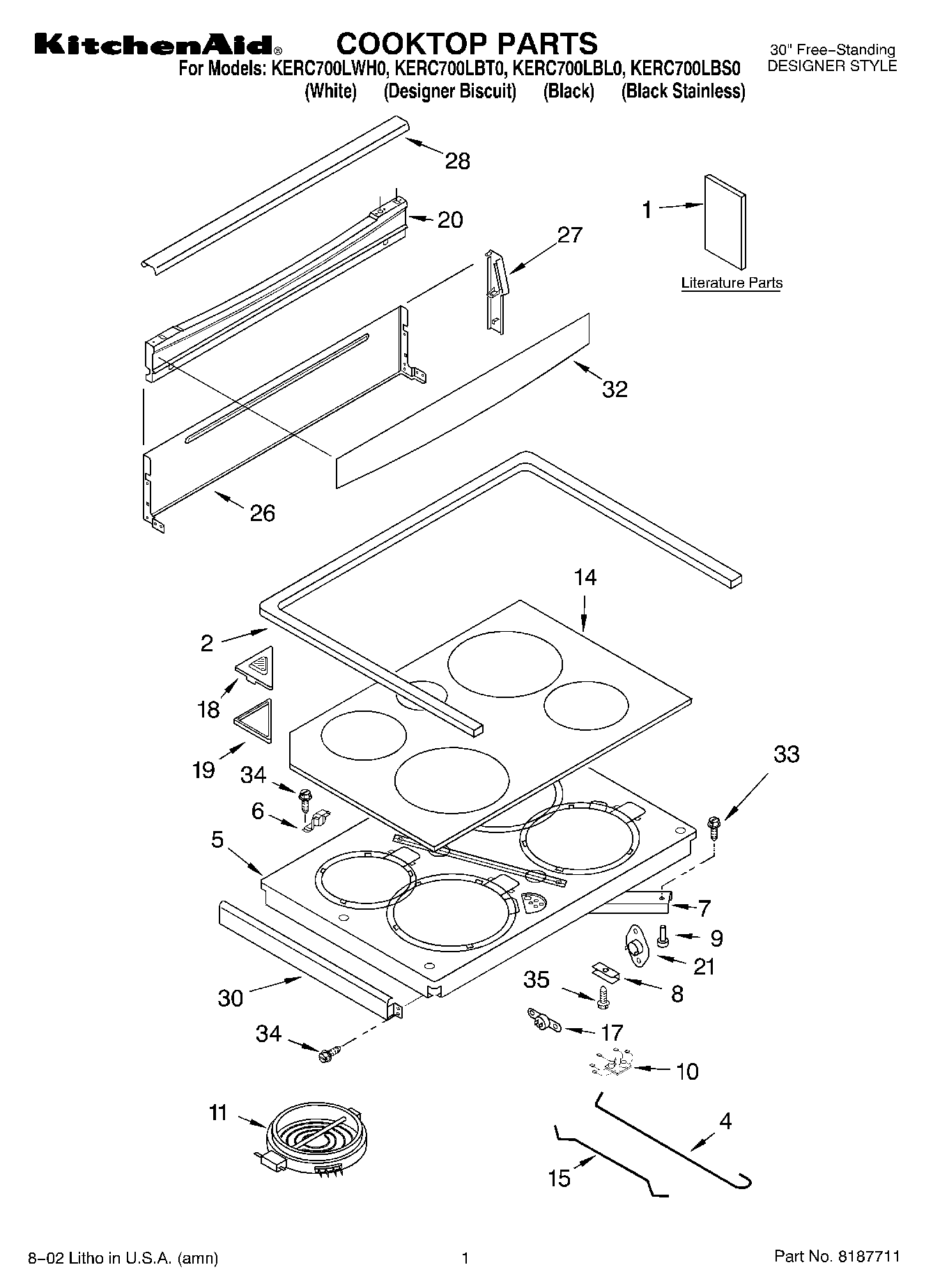

KERC700LBT0 01 – COOKTOP, LITERATURE

Products

Position	Product
1	Safer Cooking Tips
1	Literature Parts (Tech Sheet)
1	Literature Parts (Installation Instructions)
1	Literature Parts (Wiring Diagram)
1	Literature Parts (Use & Care Guide)
1	WPL LIT9752775
2	Rear Gasket
4	Rod, Large Ceran Element
5	Support, Element
6	Bracket, Pivot
6	Washer, Pivot
7	Brace, Support
8	Support Clips (4)
9	238614 Whirlpool Bumper Hinge
10	Hot Light
11	W10823699 Whirlpool Right Front Surface Element
11	W10823697 Whirlpool Surface Element
11	W10823692 Whirlpool Dual Radiant Element
11	W10823698 Whirlpool Surface Element Right Rear
14	Cooktop, Ceran (Black)
14	Cooktop, Ceran (Biscuit)
14	Cooktop, Ceran (White)
15	Rod, Small Ceran Element
17	Thermostat SPST (205)
18	Cover, Vent
19	Gasket, Vent Cover
20	Backsplash (White)
20	Backsplash (Biscuit)
20	Backsplash (Black)
21	WP9759944 Whirlpool Thermostat
26	Cover, Backsplash
27	Endcap, Backsplash (White, Left)
27	Endcap, Backsplash (Black, Right)
27	Endcap, Backsplash (Biscuit, Left)
27	Endcap, Backsplash (Black, Left)
27	Endcap, Backsplash (Biscuit, Right)
27	Endcap, Backsplash (White, Right)
28	Cover, Light (Biscuit)
28	Cover, Light (Black)
28	Cover, Light (White)
30	Trim, Cooktop (White (Right))
30	(Trim, Cooktop (Left Hand)) (White)
30	WPL 9751276PC
30	WPL 9751276PB
30	WPL 9751275PC
30	Trim, Cooktop (Black (Right))
32	WPL 9753910CB
32	WPL 9753910CC
32	WPL 9753910CW
32	WPL 9781987
33	Screw (4) 10 x 1/2
34	WP4159387 Whirlpool Compactor Screw
35	Screw, 10-16 x 1
