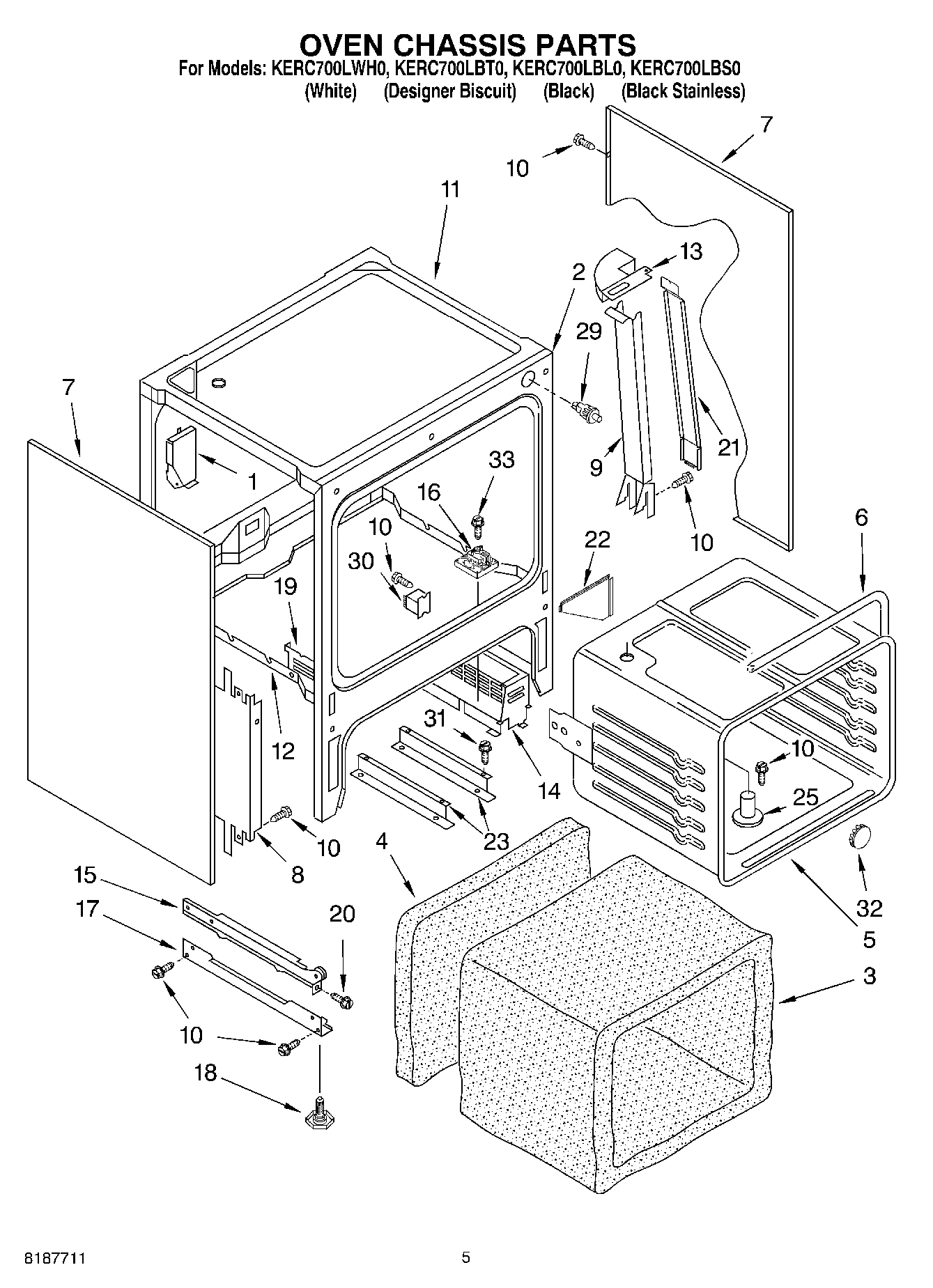

KERC700LWH0 03 – OVEN CHASSIS

Products

Position	Product
1	Vent Box, Oven
2	Chassis, Front
3	Insulation, Rear
4	Insulation, Wrap
5	Oven Liner
6	Gasket, Oven
7	Body, Side (Biscuit)
7	Body, Side (White)
7	Body, Side (Black)
8	Shield, Insulation
9	Duct, Side Fan
11	Burner Box
12	Oven Bottom
13	Duct, Top
14	Support, Fan
15	Drawer Rail, Left
15	Rail, Drawer (Right)
16	Motor, Fan
17	Bottom Rail (2)
18	WPW10058460 Whirlpool Appliance Levelling Leg
19	Hinge, Base L or R
20	Screw (4) 10 x 1/2
21	Fan Duct, Cover
22	Shield, Heat
23	Support Rail
25	Vent Tube
29	Door Switch
30	Relay, Dlb.
31	WP4159387 Whirlpool Compactor Screw
32	Button, Plug
33	Screw, (3) No.8 x 1``
