KERH507YAL3 01 – COOKTOP, LITERATURE

Products

Position	Product
	Instructions, Installation
	Tech Sheet-K/A
	WPL LIT9780689
	Wiring Diagram
	Cookbook T/C Oven
	Guide, Auto Set
	Use And Care Guide
	Video, K/A T/C Ovens
	Label, Instruction (Lamp Cover)

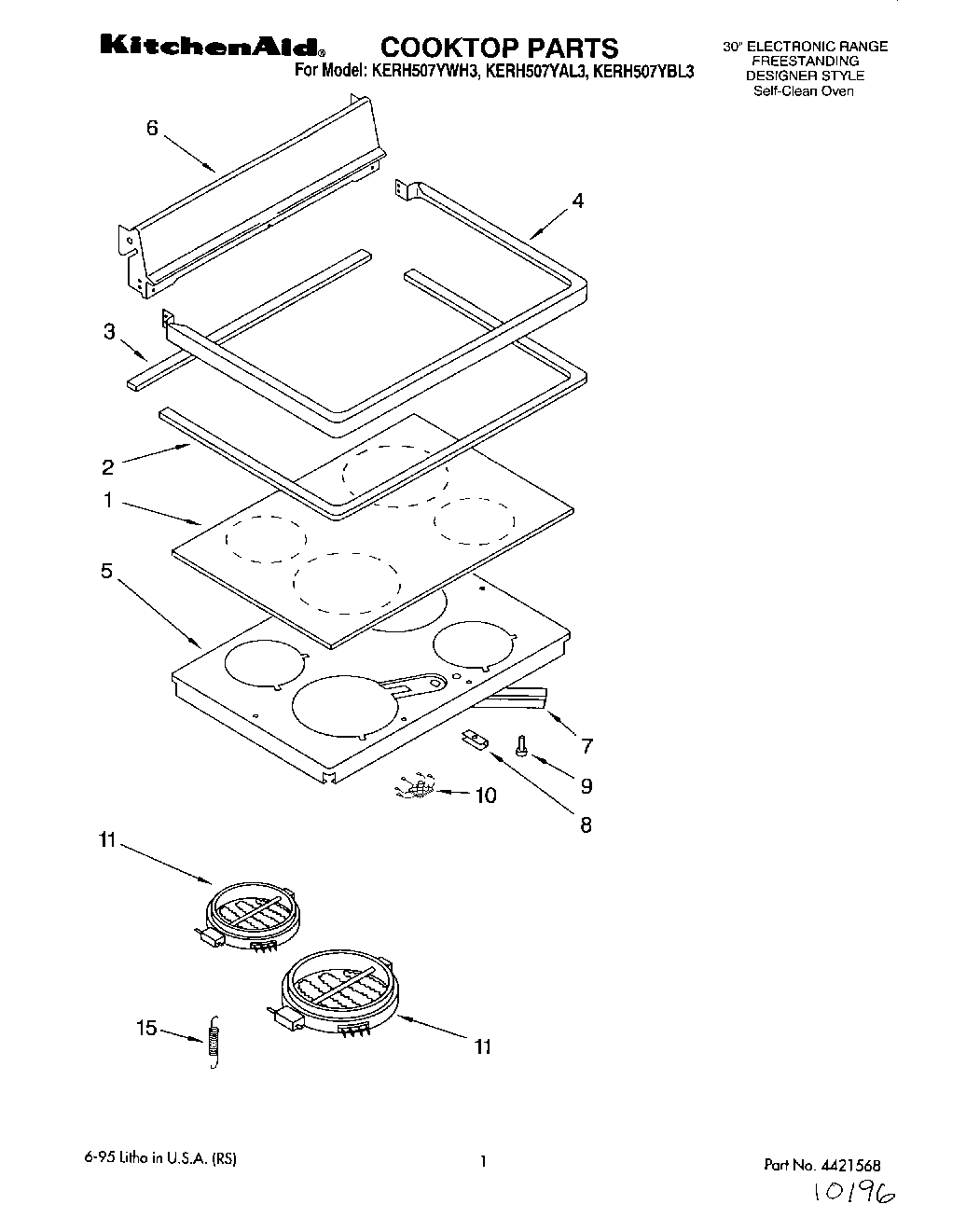

1	Cooktop, Ceran (White)
1	Cooktop, Ceran (Almond/Black Mdl.)
2	WP9780939 Whirlpool Cooktop Gasket
3	Rear Gasket
4	Frame, Cooktop (White)
4	Frame, Cooktop (Almond)
4	Frame, Cooktop (Black)
5	Support, Element
6	Back Splash (Screw (4) 10AB x 1/2“)
6	Back Splash (White)
6	Back Splash (Almond)
6	Back Splash (Black)
7	Brace, Support
7	WP3387230 Whirlpool Screw
8	Support Clip (4)
8	Screw, (4) 10 x 3/4
9	238614 Whirlpool Bumper Hinge
10	Hot Light Element, Surface
11	9“ L.F.
11	6“ L.R.
11	Element, Surface (7“ R.F.)
11	Element, Surface (8“ R.R.)
15	Spring (12)
