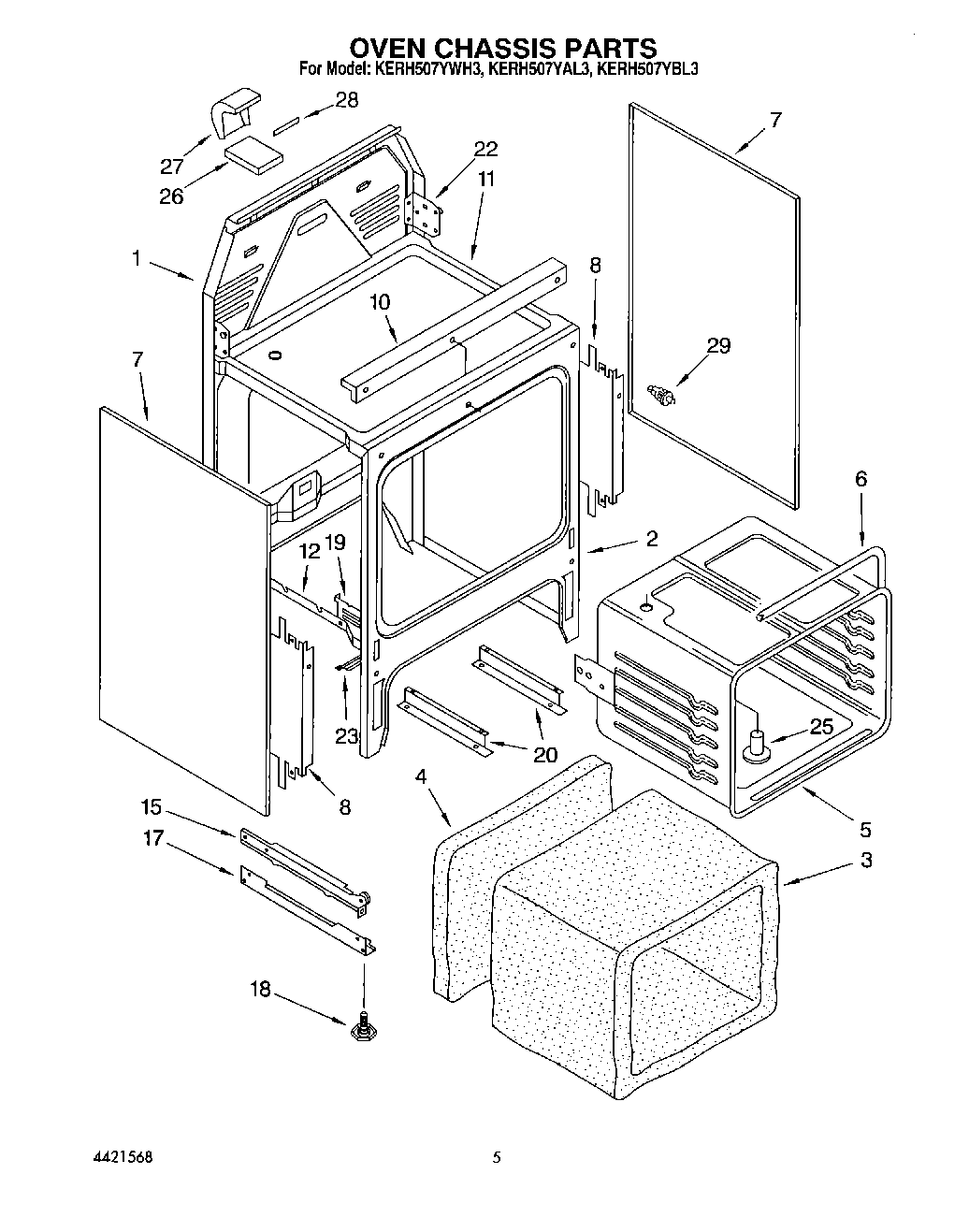

KERH507YAL3 04 – OVEN CHASSIS

Products

Position	Product
1	Main Chassis, Back
2	Chassis, Front
3	Insulation, Wrap
4	Insulation, Rear
5	Oven Liner
6	Gasket Oven
7	Oven , Side L or R (Black)
7	Oven , Side L or R (White)
7	Oven , Side L or R (Almond)
8	Shield, Insulation
10	Guard, Wire
10	Screw (2) 8 x 3/8
11	Burner Box
11	Screw, (2)
12	Oven Bottom
15	Drawer Rail, Left
15	Rail, Drawer (Right)
17	Bottom Rail (2)
18	WPW10058460 Whirlpool Appliance Levelling Leg
19	Hinge, Receiver (2)
20	Support Rail, Pan
22	Hinge, Cktp.-Left
22	Hinge, Cktp.-Right
23	Bracket, Power Cord
25	Vent Tube
26	Cover, Vent
27	Back, Vent
27	WP4159387 Whirlpool Compactor Screw
28	Vent Gasket
29	Switch, Door
29	8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
29	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
29	WA906B Whirlpool Cooktop Glass Scraper
