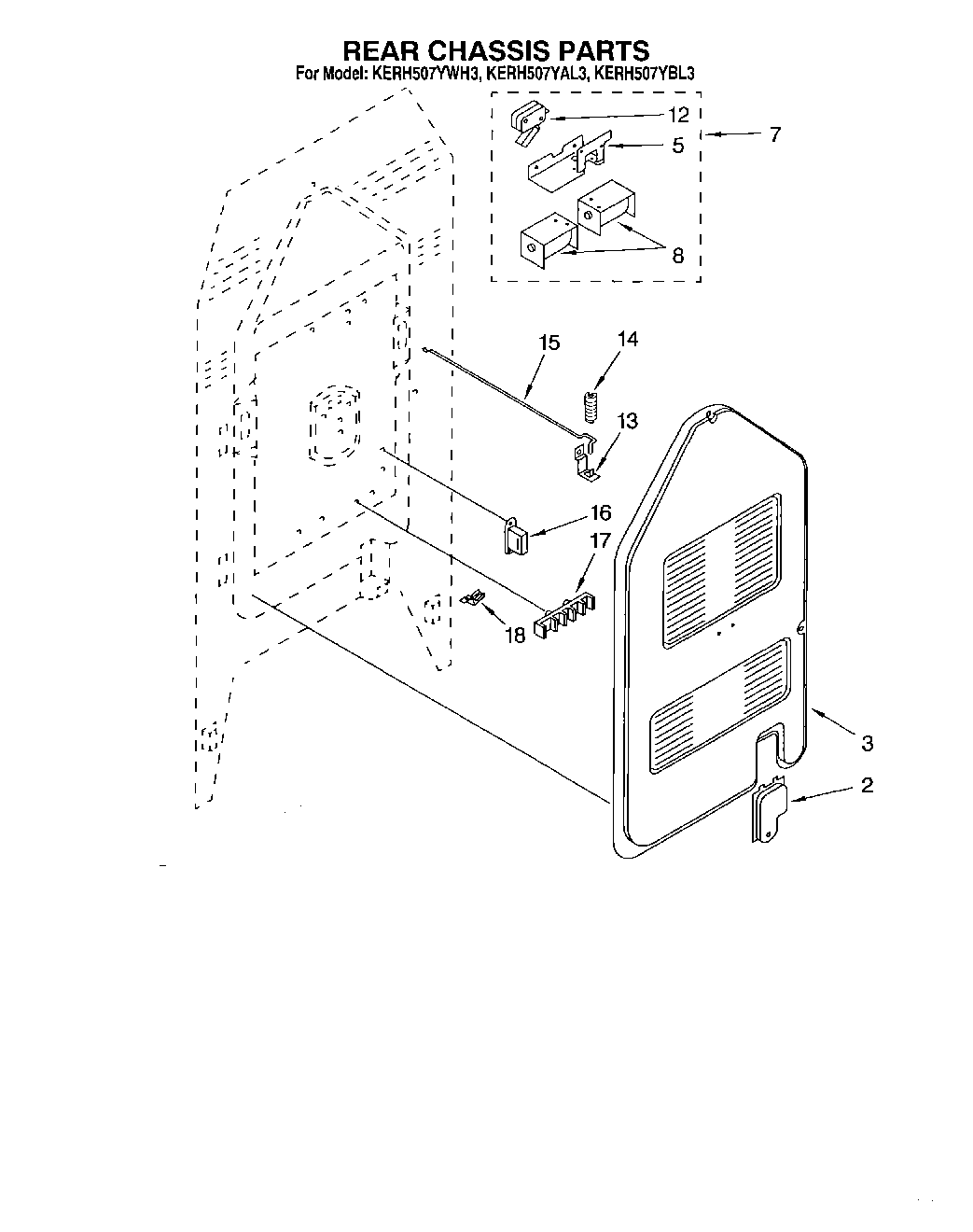

KERH507YAL3 07 – REAR CHASSIS, OPTIONAL

KERH507YAL3 07 – REAR CHASSIS, OPTIONAL

KERH507YAL3 07 – REAR CHASSIS, OPTIONAL

Products

PositionProduct
2Cover, Rear Access
3Screw, (2) 10 x 3/8
3Rear Panel
5Bracket, Lock
7Oven Lock Assembly
8Solenoid
8Screw, (2) 10-32 x 5/16
12Nut (2)
12Switch, Interlock
12Screw, (2)
13Bracket, Spring
14Spring, Door Lock
15Rod, Lock
16Ballast, Lamp
16WP4159387 Whirlpool Compactor Screw
16Washer
17WP112432 Whirlpool Nut Assembly
17Screw, (2) 10-16 x 1
17WP8203546 Whirlpool Terminal Block
18242831 Whirlpool Oven Wire
18Wire (14 Ga. 150 c Brown)
18Wire (14 Ga. 150 c Blue)
18Wire (14 Ga. 150 c Green)
18Wire (14 Ga. 150 c Orange)
18WPL 308498
18Grease
188212471 Whirlpool Oven Paint
1872113 Whirlpool Touch-Up Paint
181
1818 Ga. 80~c Rating (Red)
18Wire (12 Ga. 150 c Black)
18Wire (14 Ga. 150 c Yellow)
18Wire (14 Ga. 200 c Brown)
18Clip, Ground Wire
18Platinum (Uncut)
18Enamal, Toast (1 Qt. Uncut)
18Paint, Spray (13 Oz.) (Platinum)
18Toast
18Golden Harvest (Uncut)
18Golden Harvest
18SCREW
1872110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
18Almond (Uncut)
18WP72107 Whirlpool Touchup
18799344 Whirlpool Refrigerator Paint
1872017 Whirlpool Appliance Touch-Up Paint White
18350956 Whirlpool Spray Assembly
18WPL 72112
18350942 Whirlpool Spray Paint
18Wire, 25“ Roll (White 14 GA.)
18W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
18Paint, Spray 13 Oz. (Avocado)
18paint, spray 13 oz. (coffee)
18Paint, Touch-Up 1/2 Oz. (Coffee)
1872109 Whirlpool Dacor Avocado Touch-Up Paint
18285006 Whirlpool Spray
18Wire, 25` Roll (Red 14 Ga.)
18Wire, 25` Roll (Black 14 Ga.)
18FOIL, ALUMINUM OVEN (18“ X 25 )
18WPW10208653 Whirlpool Insulation
18WPL 799832
18511873 Whirlpool Refrigerator Paint
18350930 Whirlpool White Spray Paint
