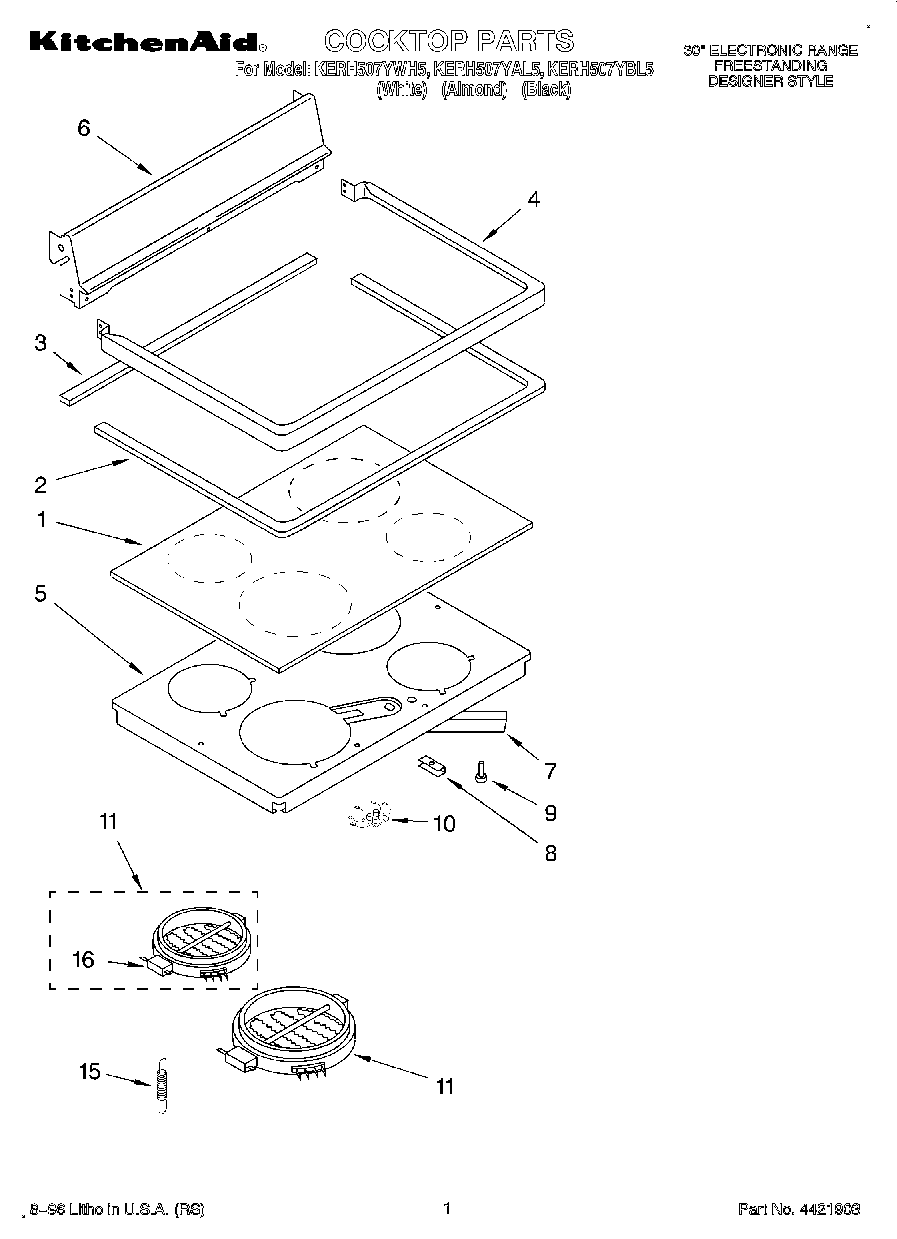

KERH507YAL5 01 – COOKTOP
Written by
in
KERH507YAL5 01 – COOKTOP
Products
Position
Product
1
Cooktop, Ceran (White)
1
Cooktop, Ceran (Almond/Black Mdl.)
2
WP9780939 Whirlpool Cooktop Gasket
3
Rear Gasket
4
Frame, Cooktop (Black)
4
Frame, Cooktop (White)
4
Frame, Cooktop (Almond)
5
Support, Element
6
Back Splash (Black)
6
Back Splash (Almond)
6
Back Splash (White)
6
Back Splash (Screw (4) 10AB x 1/2“)
7
WP3387230 Whirlpool Screw
7
Brace, Support
8
Screw, (4) 10 x 3/4
8
Support Clip (4)
9
238614 Whirlpool Bumper Hinge
10
Hot Light
11
Element, Surface (2200W – RF)
11
Element, Surface (1800W – RR)
11
Element, Surface (6“ L.R. 1400W)
11
Element, Surface (9“ L.F. 2400W)
15
Spring (12)
16
3400964 Whirlpool Oven Clip
16
Switch, Limit (2200W – RF)
16
Limiter, Temp. (1400 W – LR)
16
WP9781235 Whirlpool Clip
16
Limiter, Temp. (2400 W – LF)
16
Switch, Limit (1800W – RR)
←
