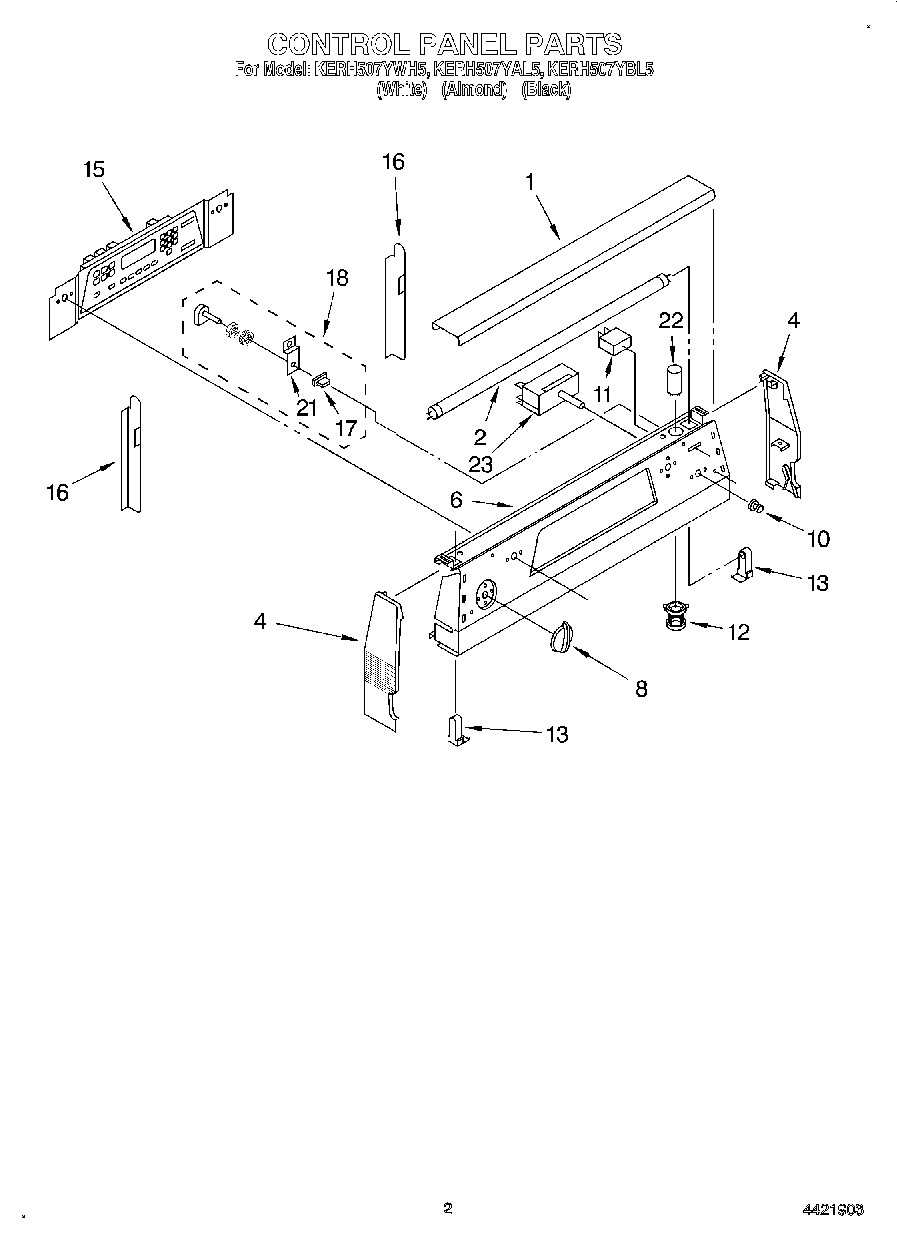

KERH507YAL5 02 – CONTROL PANEL

KERH507YAL5 02 – CONTROL PANEL

Written by

in

KERH507YAL5 02 – CONTROL PANEL

Products

PositionProduct
1Lamp Cover (White)
1Lamp Cover (Almond)
1Lamp Cover (Black)
2WP95292 Whirlpool Fluorescent Light Bulb
4End Cap L.H. (White)
4End Cap R.H. (White)
4End Cap R.H. (Black)
4End Cap L.H. (Almond)
4End Cap R.H. (Almond)
4End Cap L.H. (Black)
4WP4159387 Whirlpool Compactor Screw
6Panel, Control (Black)
6Panel, Control (Almond)
6Panel, Control (Screw, (2) 8 x 3/8)
6Panel, Control (White)
8Knobs, Control (Black)
8Knobs, Control (Almond)
8WP9750372FW Whirlpool Knob Assembly
10WP9750343 Whirlpool Light Lens
11Light Module
12Starter, Holder
13Receptacle, Lamp
15Oven Control Assembly (Almond)
15Oven Control Assembly (Black)
15Oven Control Assembly (White)
16Brace, Control Pnl
17Button, Light (Black)
17Button, Light (Almond)
17Button, Light (White)
18Switch, Light
21Bracket, Switch
22Starter, Light
23WP3400882 Whirlpool Screw
23WP9750639 Whirlpool Infinite Switch
23WP9750641 Whirlpool Infinite Switch
23Infinite Switch (Spacer, Switch (2))
