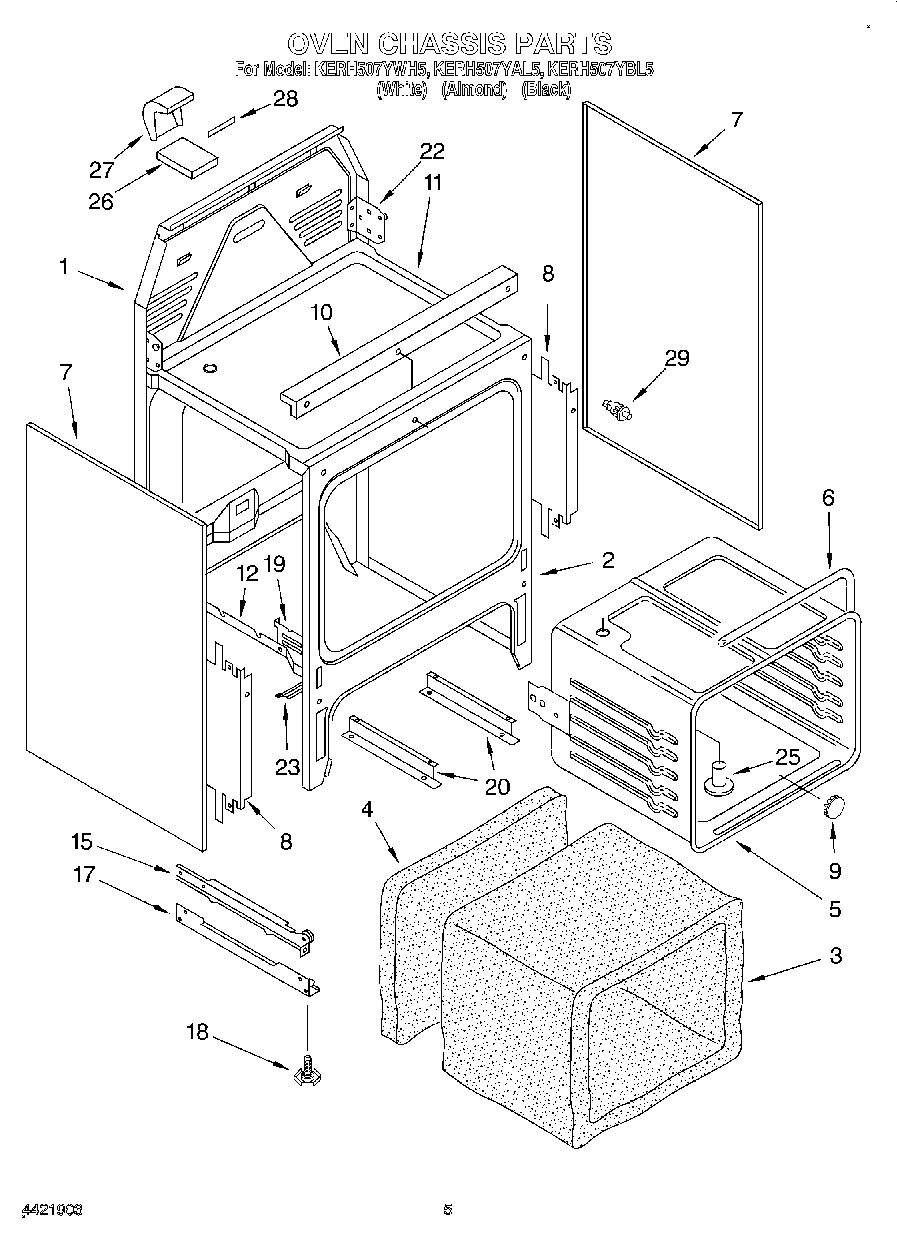

KERH507YAL5 04 – OVEN CHASSIS

Products

Position	Product
1	Main Chassis, Back
2	Chassis, Front
3	Insulation, Wrap
4	Insulation, Rear
5	Oven Liner
6	Gasket Oven
7	Oven , Side L or R (Black)
7	Oven , Side L or R (White)
7	Oven , Side L or R (Almond)
8	Shield, Insulation
9	Button, Plug
10	Screw (2) 8 x 3/8
10	Guard, Wire
11	Screw, (2)
11	Burner Box
12	Oven Bottom
15	Drawer Rail, Left
15	Rail, Drawer (Right)
17	Bottom Rail (2)
18	WPW10058460 Whirlpool Appliance Levelling Leg
19	Hinge, Receiver (2)
20	Support Rail, Pan
22	Hinge, Cktp.-Left
22	Hinge, Cktp.-Right
23	Bracket, Power Cord
25	Vent Tube
26	Cover, Vent
27	Back, Vent
27	WP4159387 Whirlpool Compactor Screw
28	Vent Gasket
29	Switch, Door
29	8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
29	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
