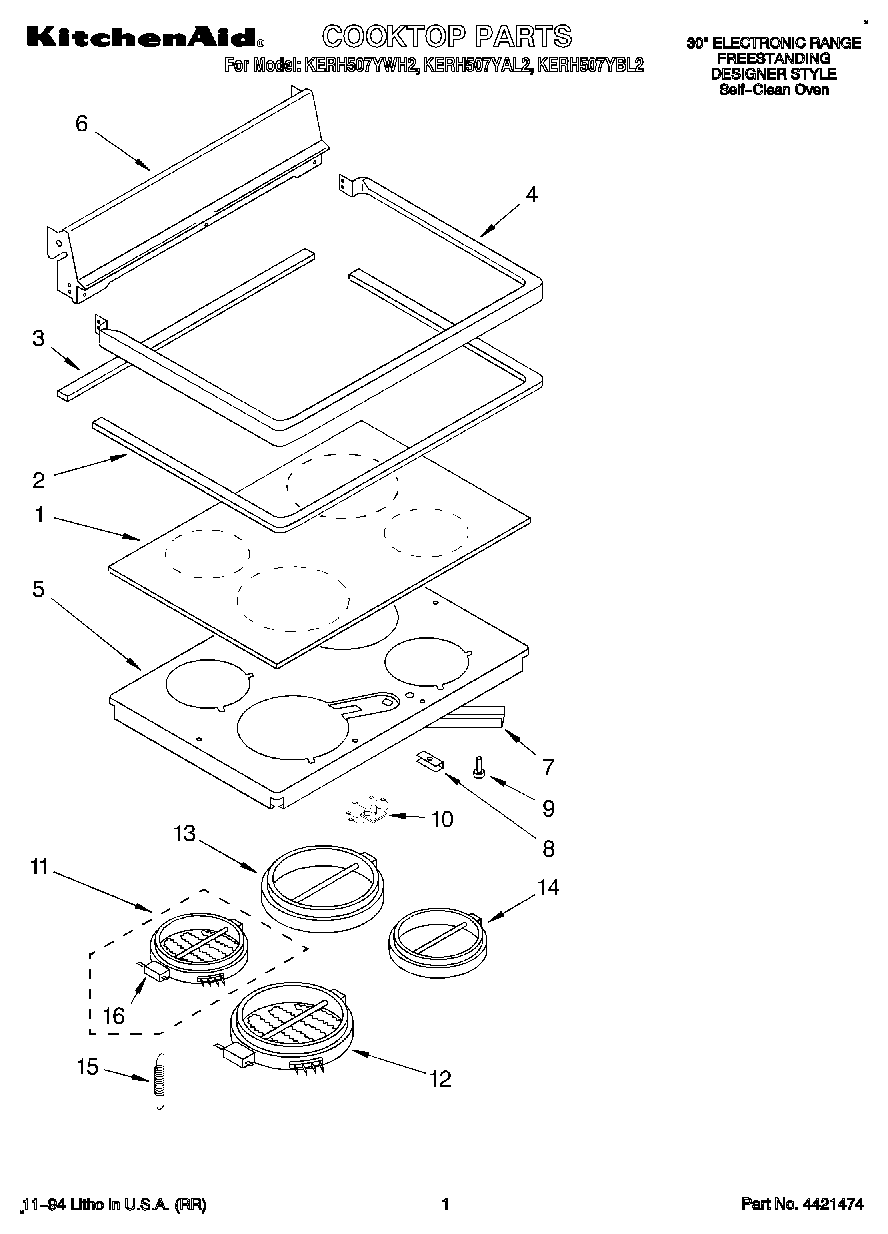

KERH507YWH2 01 – COOKTOP, LITERATURE

Products

Position	Product
	Video, K/A T/C Ovens
	Tech Sheet-K/A
	Wiring Diagram
	Instructions, Installation
	WPL LIT9780689
	Label, Instruction (Lamp Cover)
	Cookbook T/C Oven
	Guide, Auto Set
	Use And Care Guide
1	Cooktop, Ceran (White)
1	Cooktop, Ceran (Almond/Black Mdl.)
2	WP9780939 Whirlpool Cooktop Gasket
3	Rear Gasket
4	Frame, Cooktop (White)
4	Frame, Cooktop (Almond)
4	Frame, Cooktop (Black)
5	Support, Element
6	Back Splash (White)
6	Back Splash (Almond)
6	Back Splash (Screw (4) 10AB x 1/2“)
6	Back Splash (Black)
7	Brace, Support
7	WP3387230 Whirlpool Screw
8	Support Clip (4)
8	Screw, (4) 10 x 3/4
9	238614 Whirlpool Bumper Hinge
10	Hot Light Element, Surface
11	6“ L.R.
12	9“ L.F.
13	Element, Surface (8“ R.R.)
14	Element, Surface (7“ R.F.)
15	Spring (12)
16	Limiter, Temp. (9“ L.F.)
16	Limiter, Temp. (6“ L.R.)
16	Limiter, Temp. (7“ R.F.)
16	Limiter, Temp. (8“ R.R.)
