KERH507YWH4 01 – COOKTOP

Products

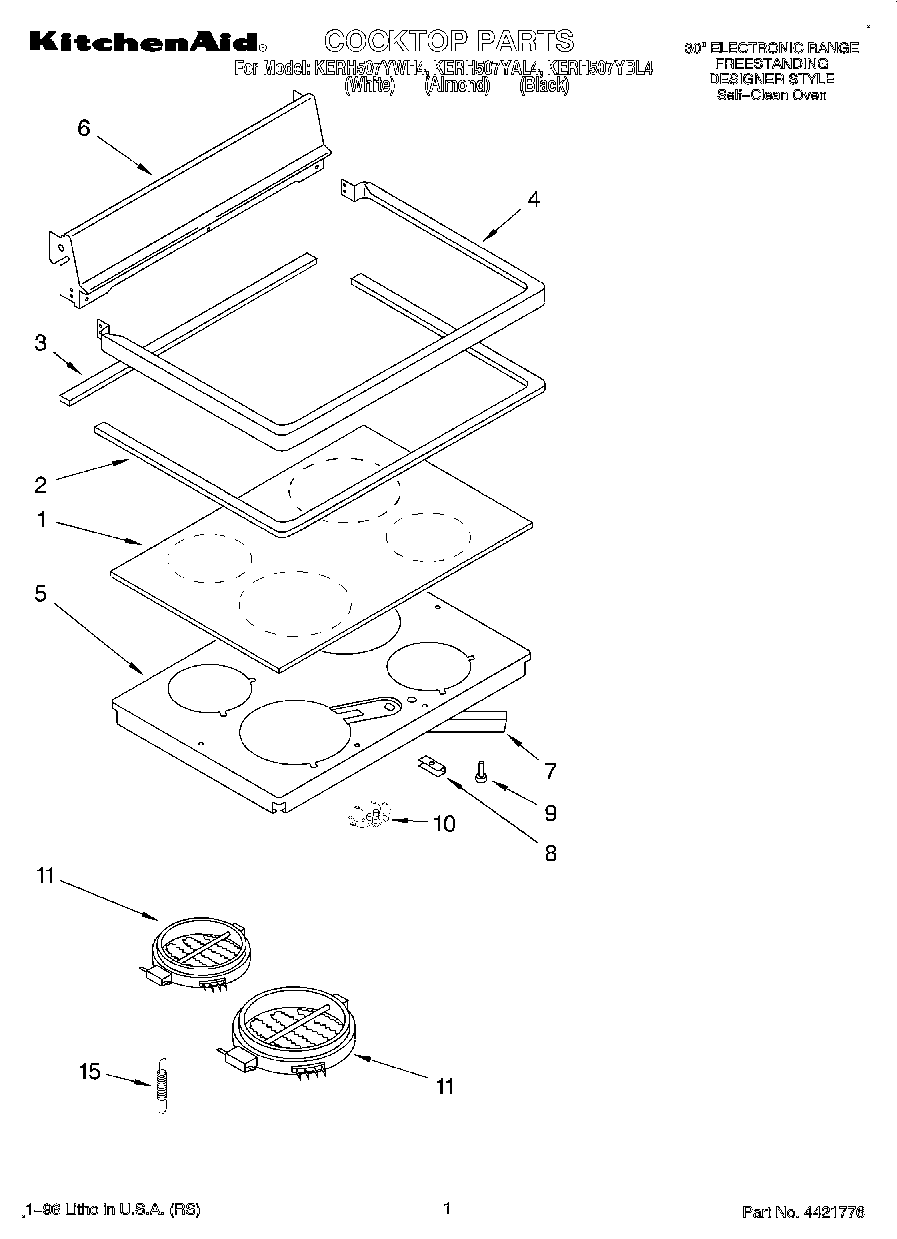

PositionProduct
1Cooktop, Ceran (White)
1Cooktop, Ceran (Almond/Black Mdl.)
2WP9780939 Whirlpool Cooktop Gasket
3Rear Gasket
4Frame, Cooktop (White)
4Frame, Cooktop (Almond)
4Frame, Cooktop (Black)
5Support, Element
6Back Splash (Screw (4) 10AB x 1/2“)
6Back Splash (Black)
6Back Splash (Almond)
6Back Splash (White)
7Brace, Support
7WP3387230 Whirlpool Screw
8Screw, (4) 10 x 3/4
8Support Clip (4)
9238614 Whirlpool Bumper Hinge
10Hot Light Element, Surface
11Element, Surface (7“ R.F.)
11Element, Surface (9“ L.F. 2400W)
11Element, Surface (6“ L.R. 1400W)
11Element, Surface (8“ R.R.)
15Spring (12)
