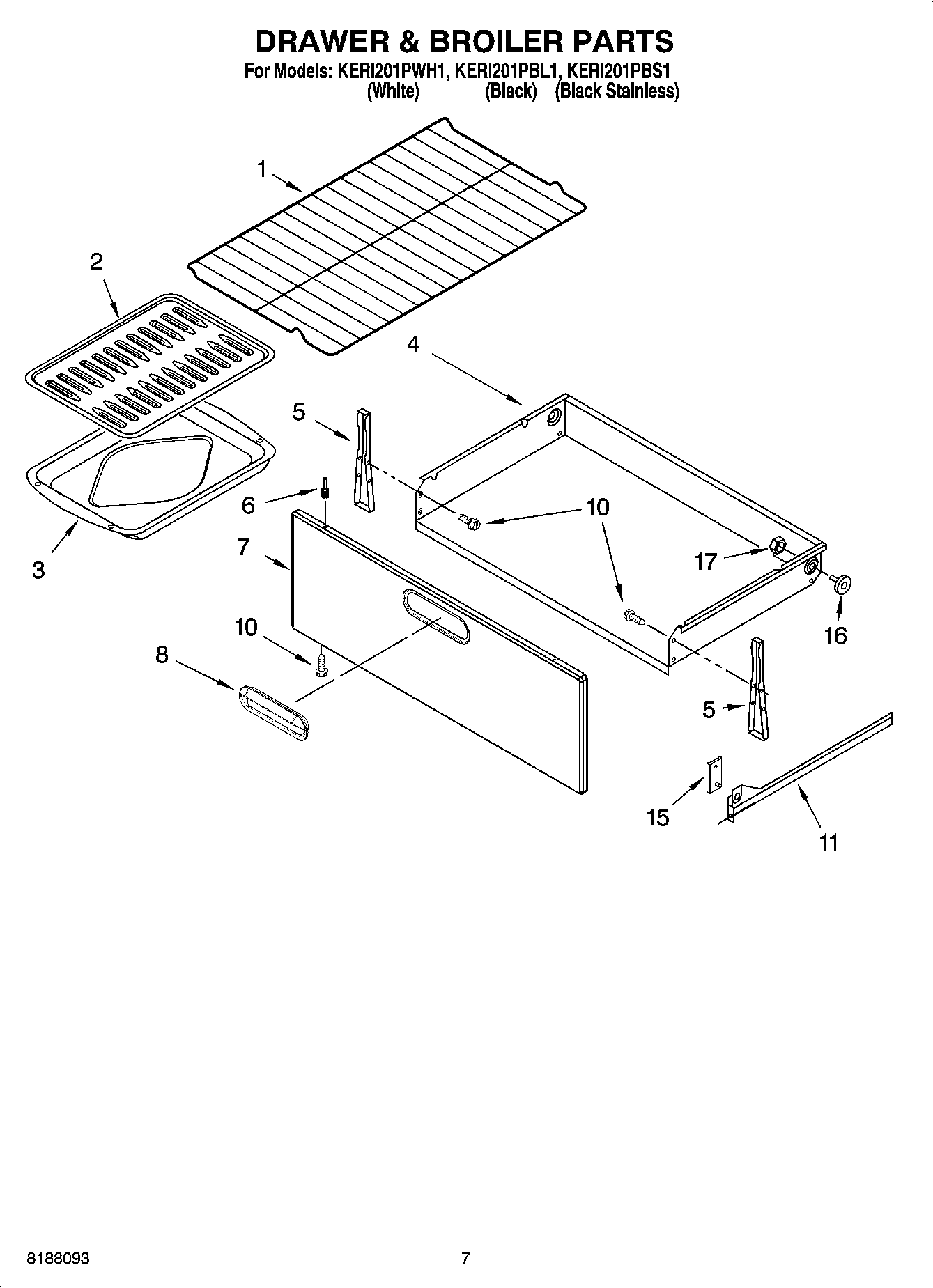

KERI201PBL1 05 – DRAWER & BROILER PARTS, OPTIONAL PARTS

KERI201PBL1 05 – DRAWER & BROILER PARTS, OPTIONAL PARTS

Written by

in

KERI201PBL1 05 – DRAWER & BROILER PARTS, OPTIONAL PARTS

Products

PositionProduct
WPL ARI154302A
WP3196154 Whirlpool Screw Assembly
Grease
3184020 Whirlpool Oven Wire
8212471 Whirlpool Oven Paint
W11244557 Whirlpool Screw
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
242831 Whirlpool Oven Wire
WPL 8524132
WPL 9756745
WPL ARI154301A
WPL ARI154300A
WPL ARI154299A
WPL ARI154298A
WPL ARI154297A
WPL ARI154296A
WPL ARI154295A
WPL ARI154293A
WPL 9757334
WPL 9758174
WPL 9757335
WPL 9757045
WPL ARI154294A
350930 Whirlpool White Spray Paint
814381 Whirlpool Pin
W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
285006 Whirlpool Spray
Wire, 25` Roll (Red 14 Ga.)
FOIL, ALUMINUM OVEN (18“ X 25 )
WPW10208653 Whirlpool Insulation
WPL 799832
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
511873 Whirlpool Refrigerator Paint
4392901 Whirlpool Biscuit Spray Paint
4392899 Whirlpool Biscuit Touch-Up Paint
350942 Whirlpool Spray Paint
Cleaner (Stainless Steel)
799344 Whirlpool Refrigerator Paint
72017 Whirlpool Appliance Touch-Up Paint White
W11447673 Whirlpool Range Tip Anchor
Wire (14 Ga. 200 c Brown)
1WPW10256908 Whirlpool Oven Range Rack
2WP3195996 Whirlpool Pan Grid
3WP3196076 Whirlpool Broil Pan
4Drawer, Storage
5W10838990 Whirlpool Mounting Bracket
6WP3196814 Whirlpool Rivet
6WP3196813 Whirlpool Rivet
7Panel, Drawer Front (Stainless Steel)
7Panel, Drawer Front (White)
7Panel, Drawer Front (Black)
8Handle, Drawer (White)
8Handle, Drawer (Black)
10WP3400832 Whirlpool Screw
11Rail, Drawer (Right Hand)
11Rail, Drawer (Left Hand)
15Spacer, Glide
16814229 Whirlpool Primary Roller
17WP487939 Whirlpool Refrigerator Nut
