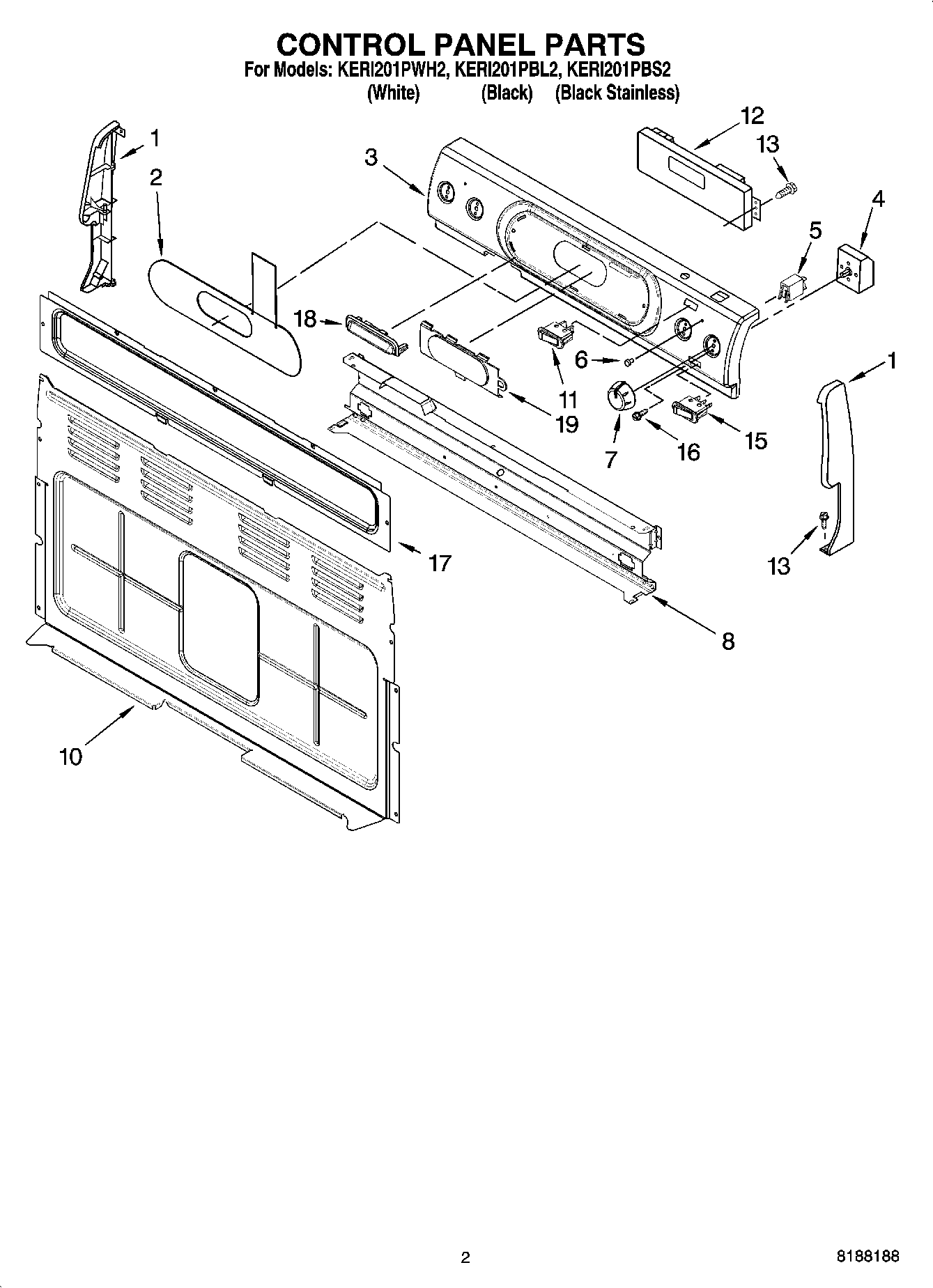

KERI201PBL2 02 – CONTROL PANEL PARTS

Products

Position	Product
1	Endcap (White Right Hand)
1	Endcap (White Left Hand)
1	Endcap (Black Right Hand)
1	Endcap (Black Left Hand)
2	Membrane Switch (Black)
2	Membrane Switch (White)
3	Panel, Backguard (Black Stainless)
3	Panel, Backguard (Black)
3	Panel, Backguard (White)
4	WP9757030 Whirlpool Infinite Switch
4	WP3148952 Whirlpool Oven Infinite Switch
4	SWITCH-INF
5	WP8523266 Whirlpool Indicator Light
6	WP3196068 Whirlpool Light Lens
7	Knob (Black)
7	Knob (White)
8	Shield, Heat
10	Cover, Rear
11	WPW10163899 Whirlpool Switch
11	Switch, Simmer (White)
12	Control, Range
13	SCREW
15	Switch, Warming (White)
15	WPW10163902 Whirlpool Switch
16	WP3400882 Whirlpool Screw
17	Cover, Rear (Console)
18	Cover, Vent (Cashmere Metalic)
18	Cover, Vent (Black)
18	Cover, Vent (White)
19	Membrane, Insert
