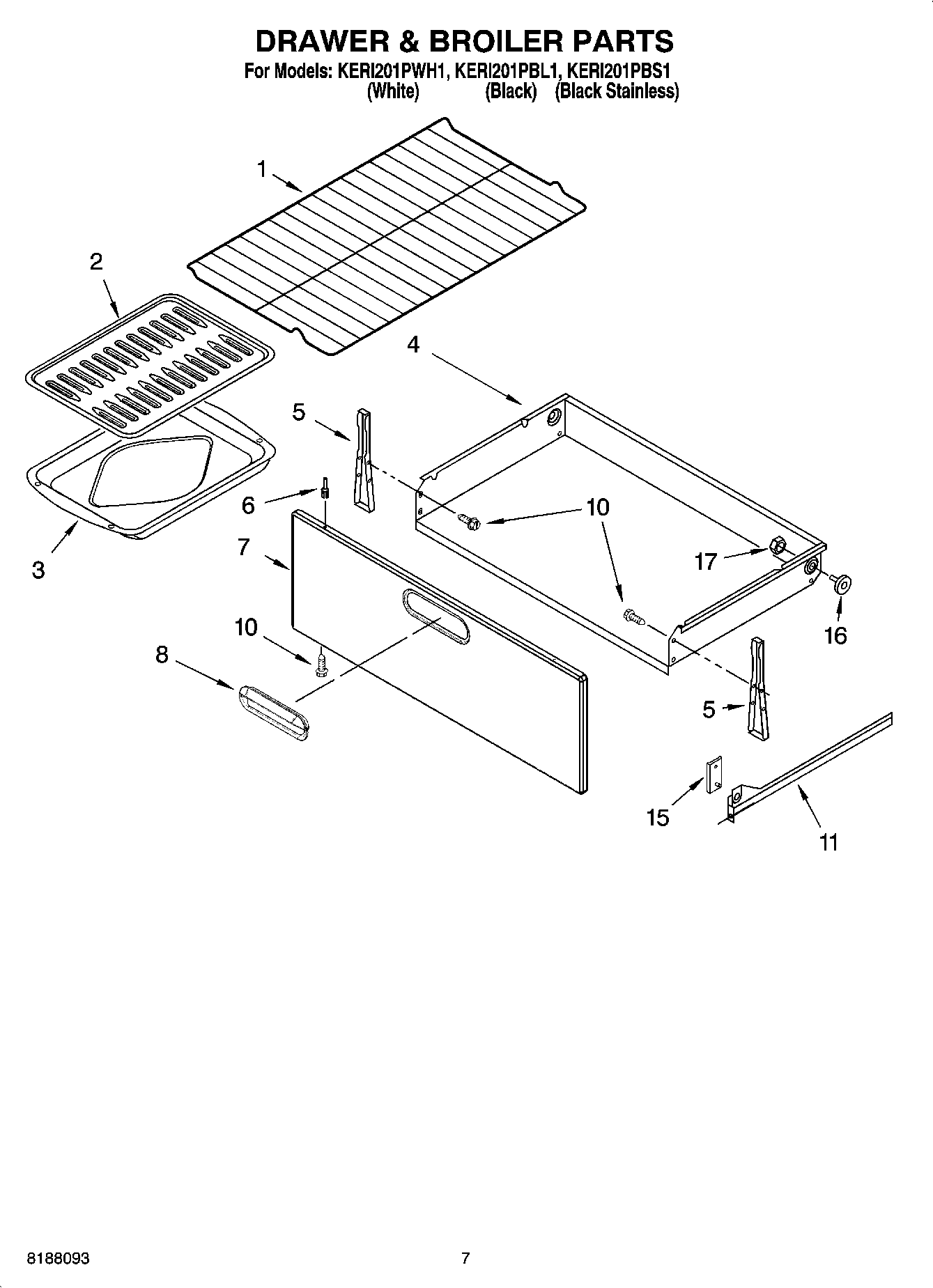

KERI201PBS1 05 – DRAWER & BROILER PARTS, OPTIONAL PARTS

KERI201PBS1 05 – DRAWER & BROILER PARTS, OPTIONAL PARTS

Written by

in

KERI201PBS1 05 – DRAWER & BROILER PARTS, OPTIONAL PARTS

Products

Position	Product
	WPL ARI154359A
	WP3196154 Whirlpool Screw Assembly
	Grease
	3184020 Whirlpool Oven Wire
	8212471 Whirlpool Oven Paint
	W11244557 Whirlpool Screw
	Wire (12 Ga. 150 c Black)
	Wire (14 Ga. 150 c Yellow)
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Brown)
	Wire (14 Ga. 150 c Blue)
	242831 Whirlpool Oven Wire
	WPL 8524132
	WPL 9756745
	WPL ARI154358A
	WPL ARI154357A
	WPL ARI154356A
	WPL ARI154355A
	WPL ARI154354A
	WPL ARI154353A
	WPL ARI154352A
	WPL ARI154350A
	WPL 9757334
	WPL 9758174
	WPL 9757335
	WPL 9757045
	WPL ARI154351A
	350930 Whirlpool White Spray Paint
	814381 Whirlpool Pin
	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
	285006 Whirlpool Spray
	Wire, 25` Roll (Red 14 Ga.)
	FOIL, ALUMINUM OVEN (18“ X 25 )
	WPW10208653 Whirlpool Insulation
	WPL 799832
	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
	511873 Whirlpool Refrigerator Paint
	4392901 Whirlpool Biscuit Spray Paint
	4392899 Whirlpool Biscuit Touch-Up Paint
	350942 Whirlpool Spray Paint
	Cleaner (Stainless Steel)
	799344 Whirlpool Refrigerator Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	W11447673 Whirlpool Range Tip Anchor
	Wire (14 Ga. 200 c Brown)
1	WPW10256908 Whirlpool Oven Range Rack
2	WP3195996 Whirlpool Pan Grid
3	WP3196076 Whirlpool Broil Pan
4	Drawer, Storage
5	W10838990 Whirlpool Mounting Bracket
6	WP3196814 Whirlpool Rivet
6	WP3196813 Whirlpool Rivet
7	Panel, Drawer Front (Stainless Steel)
7	Panel, Drawer Front (White)
7	Panel, Drawer Front (Black)
8	Handle, Drawer (White)
8	Handle, Drawer (Black)
10	WP3400832 Whirlpool Screw
11	Rail, Drawer (Right Hand)
11	Rail, Drawer (Left Hand)
15	Spacer, Glide
16	814229 Whirlpool Primary Roller
17	WP487939 Whirlpool Refrigerator Nut
