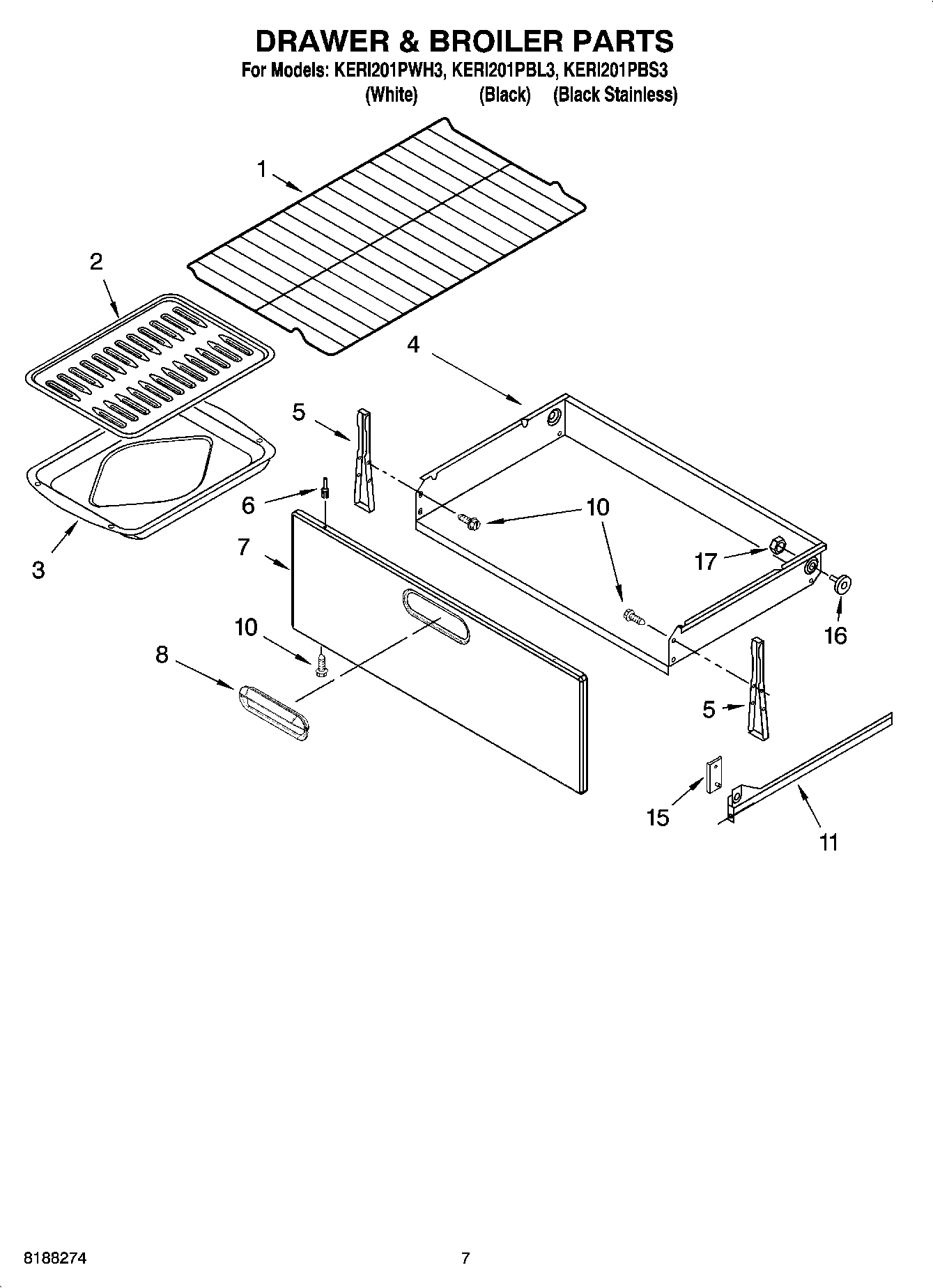

KERI201PBS3 05 – DRAWER & BROILER PARTS, OPTIONAL PARTS

KERI201PBS3 05 – DRAWER & BROILER PARTS, OPTIONAL PARTS

Written by

in

KERI201PBS3 05 – DRAWER & BROILER PARTS, OPTIONAL PARTS

Products

PositionProduct
WPL ARI154381A
Grease
3184020 Whirlpool Oven Wire
8212471 Whirlpool Oven Paint
W11244557 Whirlpool Screw
Wire (14 Ga. 200 c Brown)
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
WPL 9761466
242831 Whirlpool Oven Wire
WP3196154 Whirlpool Screw Assembly
WPL 8524132
WPL ARI154380A
WPL ARI154379A
WPL ARI154378A
WPL ARI154377A
WPL ARI154376A
WPL ARI154375A
WPL ARI154374A
WPL ARI154372A
WPL 9761464
WPL 9758174
WPL 9757335
WPL 9757045
WPL ARI154373A
350930 Whirlpool White Spray Paint
814381 Whirlpool Pin
W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
285006 Whirlpool Spray
Wire, 25` Roll (Red 14 Ga.)
FOIL, ALUMINUM OVEN (18“ X 25 )
WPW10208653 Whirlpool Insulation
WPL 799832
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
511873 Whirlpool Refrigerator Paint
4392901 Whirlpool Biscuit Spray Paint
4392899 Whirlpool Biscuit Touch-Up Paint
350942 Whirlpool Spray Paint
Cleaner (Stainless Steel)
799344 Whirlpool Refrigerator Paint
72017 Whirlpool Appliance Touch-Up Paint White
W11447673 Whirlpool Range Tip Anchor
Wire (14 Ga. 150 c Yellow)
Clip, Ground Wire
1WPW10256908 Whirlpool Oven Range Rack
2WP3195996 Whirlpool Pan Grid
3WP3196076 Whirlpool Broil Pan
4Drawer, Storage
5W10838990 Whirlpool Mounting Bracket
6WP3196814 Whirlpool Rivet
6WP3196813 Whirlpool Rivet
7Panel, Drawer Front (White)
7Panel, Drawer Front (Black)
7Panel, Drawer Front (Stainless Steel)
8Handle, Drawer (Black)
8Handle, Drawer (White)
10WP3400832 Whirlpool Screw
11Rail, Drawer (Left Hand)
11Rail, Drawer (Right Hand)
15Spacer, Glide
16814229 Whirlpool Primary Roller
17WP487939 Whirlpool Refrigerator Nut
