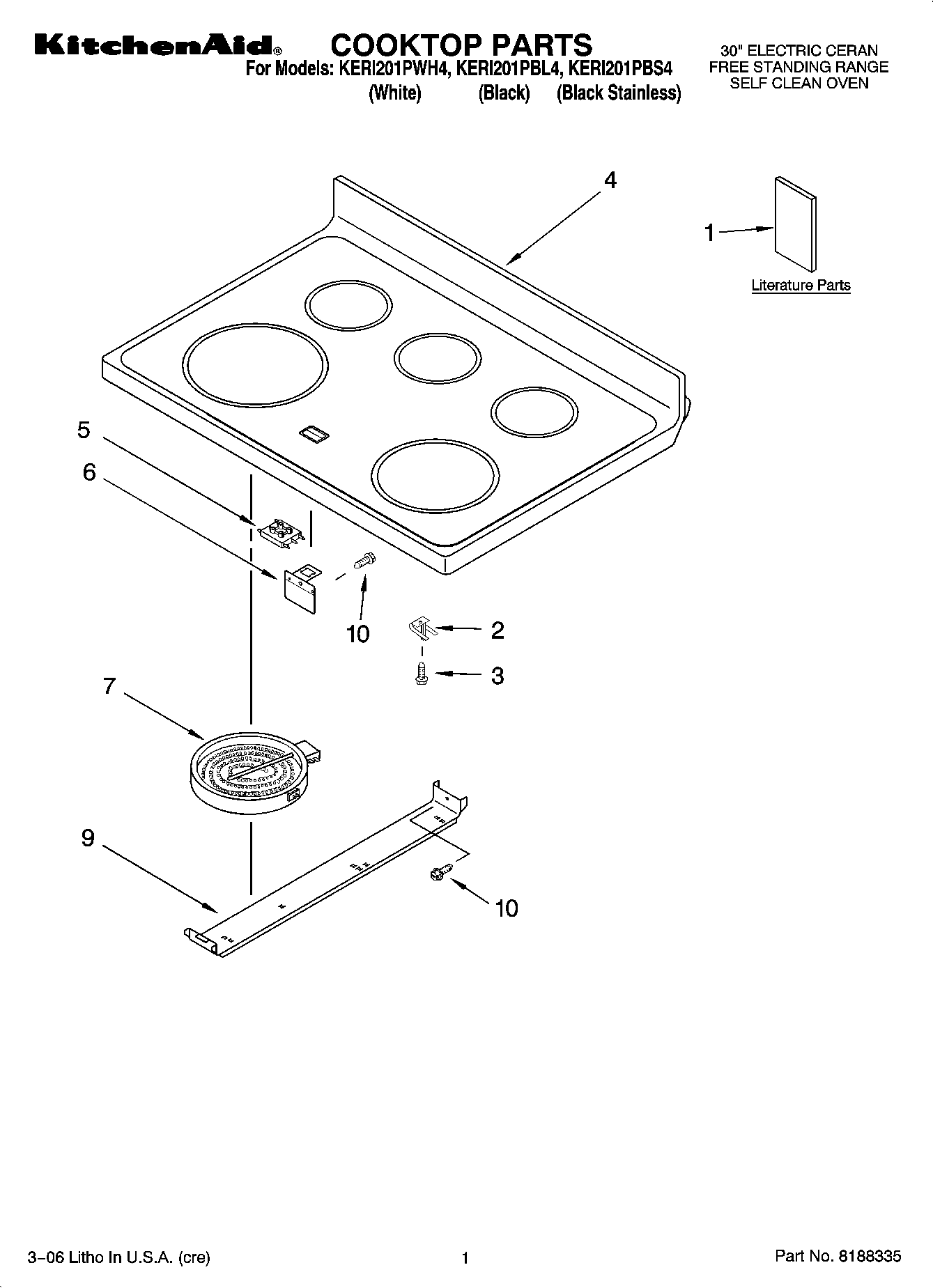

KERI201PBS4 01 – COOKTOP PARTS

Products

Position	Product
1	SAFER COOKING TIPS (ENGLISH
1	Tech Sheet
1	Owners Manual
1	Anti-Tip Template (English/French)
1	Anti-Tip Template (English/Spanish)
1	Installation Instructions Anti-Tip Template
2	Spring, Locator
3	WP3196170 Whirlpool Screw
4	Cooktop (Black Stainless)
4	Cooktop (White)
4	Cooktop (Black)
5	Light, Indicator (Hot Surface)
6	Bracket, Ind Light
7	ELMNT-SURF
7	Element, Surface (100 W - CR)
7	WP8523047 Whirlpool Surface Element Assembly
7	WP8273993 Whirlpool Surface Element
9	Bracket, Element ((1))
9	Bracket, Element ((2))
10	WP3196557 Whirlpool Screw
