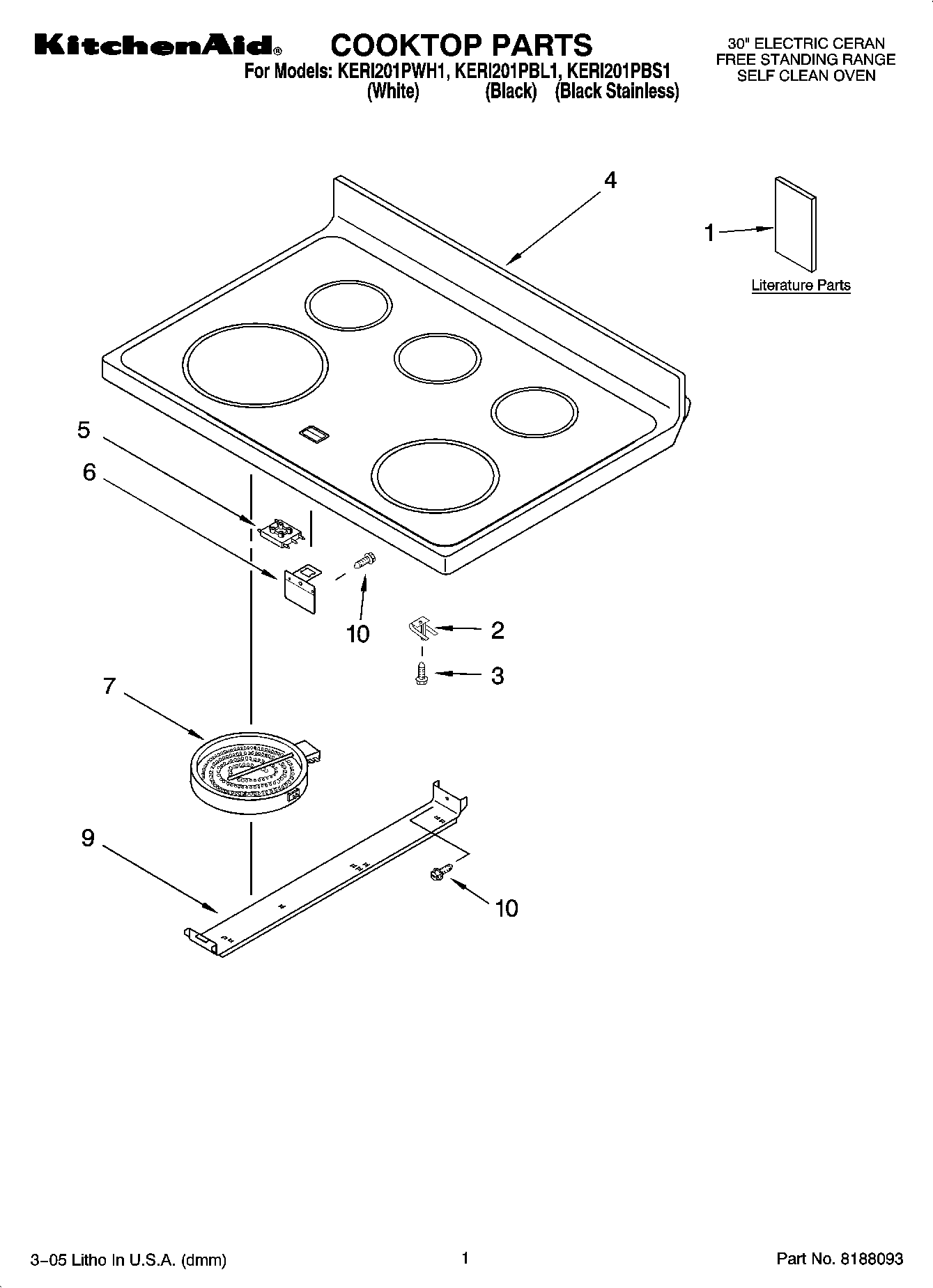

KERI201PWH1 01 – COOKTOP PARTS

KERI201PWH1 01 – COOKTOP PARTS

Written by

in

KERI201PWH1 01 – COOKTOP PARTS

Products

PositionProduct
1Installation Instructions Anti-Tip Template
1Tech Sheet
1Use & Care Guide
1Safe Cooking Tips
1Anti-Tip Template (English/French)
1Anti-Tip Template (English/Spanish)
2Spring, Locator
3WP3196170 Whirlpool Screw
4Cooktop (Black)
4Cooktop (White)
4Cooktop (Black Stainless)
5Light, Indicator (Hot Surface)
6Bracket, Ind Light
7WP8273993 Whirlpool Surface Element
7WP8523047 Whirlpool Surface Element Assembly
7Element, Surface (100 W – CR)
7ELMNT-SURF
9Bracket, Element ((2))
9Bracket, Element ((1))
10WP3196557 Whirlpool Screw
