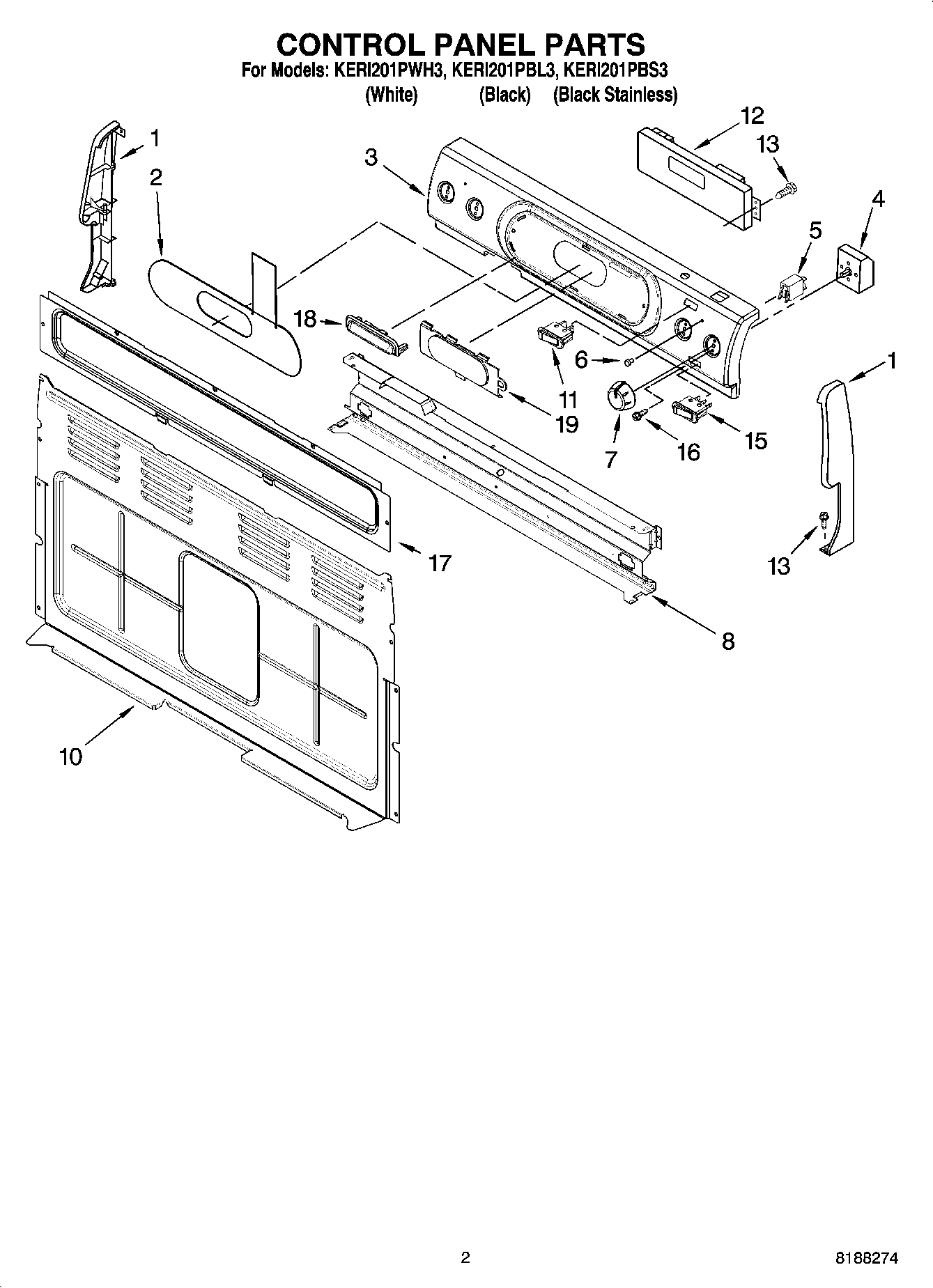

KERI201PWH3 02 – CONTROL PANEL PARTSadmin2025-04-26T09:54:30+00:00KERI201PWH3 02 – CONTROL PANEL PARTS
Products
| Position | Product |
|---|
| 1 | Endcap (White Right Hand) |
| 1 | Endcap (White Left Hand) |
| 1 | Endcap (Black Right Hand) |
| 1 | Endcap (Black Left Hand) |
| 2 | Membrane Switch (Black) |
| 2 | Membrane Switch (White) |
| 3 | Panel, Backguard (Black Stainless) |
| 3 | Panel, Backguard (Black) |
| 3 | Panel, Backguard (White) |
| 4 | WP9757030 Whirlpool Infinite Switch |
| 4 | WP3148952 Whirlpool Oven Infinite Switch |
| 4 | SWITCH-INF |
| 5 | WP8523266 Whirlpool Indicator Light |
| 6 | WP3196068 Whirlpool Light Lens |
| 7 | Knob (Black) |
| 7 | Knob (White) |
| 8 | Shield, Heat |
| 10 | Cover, Rear |
| 11 | WPW10163899 Whirlpool Switch |
| 11 | Switch, Simmer (White) |
| 12 | Control, Range |
| 13 | SCREW |
| 15 | Switch, Warming (White) |
| 15 | WPW10163902 Whirlpool Switch |
| 16 | WP3400882 Whirlpool Screw |
| 17 | Cover, Rear (Console) |
| 18 | Cover, Vent (Cashmere Metalic) |
| 18 | Cover, Vent (Black) |
| 18 | Cover, Vent (White) |
| 19 | Membrane, Insert |
