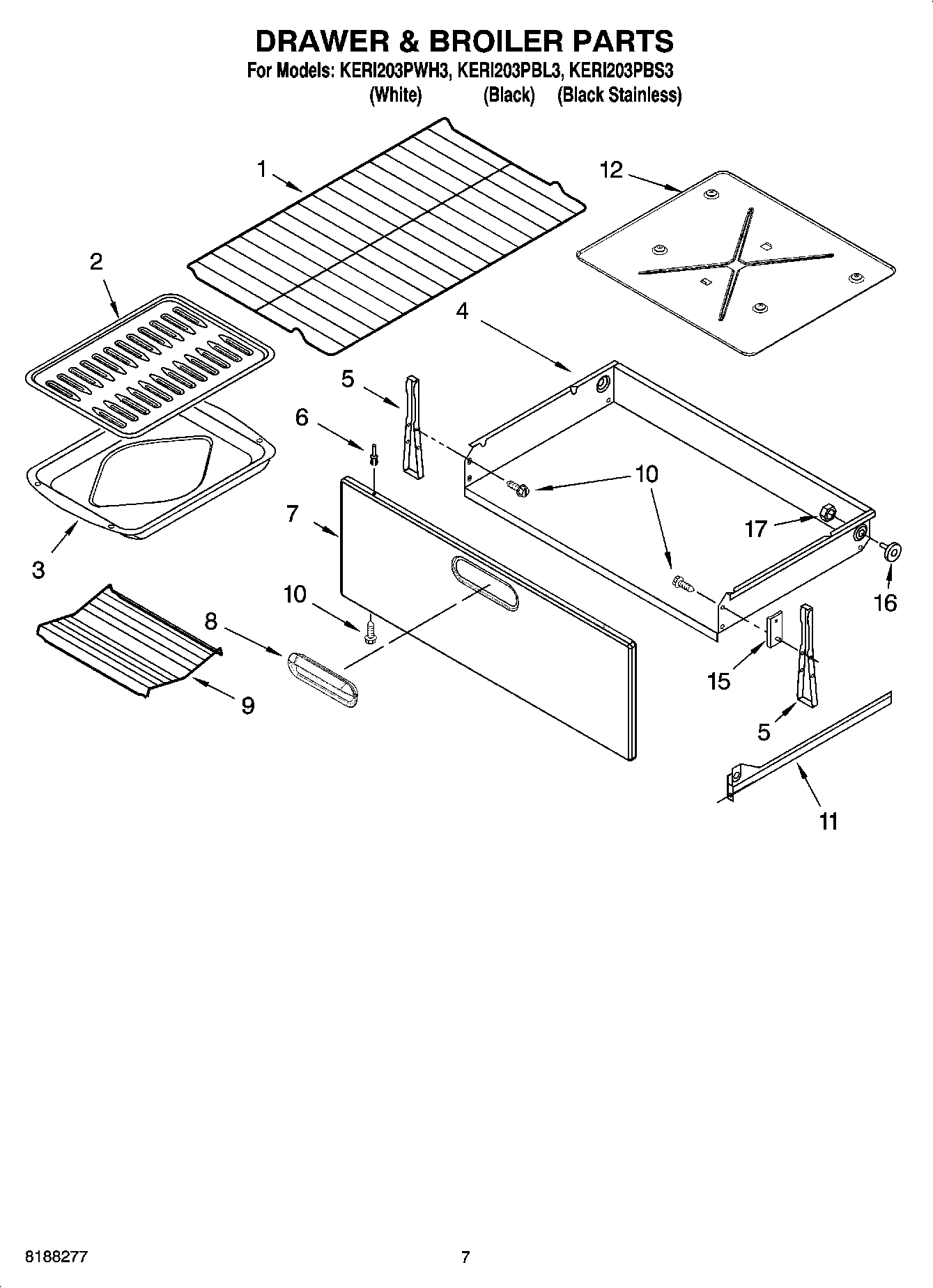

KERI203PBL3 05 – DRAWER & BROILER PARTS, OPTIONAL PARTS

KERI203PBL3 05 – DRAWER & BROILER PARTS, OPTIONAL PARTS

Written by

in

KERI203PBL3 05 – DRAWER & BROILER PARTS, OPTIONAL PARTS

Products

PositionProduct
WPL ARI154478A
3184020 Whirlpool Oven Wire
8212471 Whirlpool Oven Paint
W11244557 Whirlpool Screw
Wire (14 Ga. 200 c Brown)
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
WPL 9761466
WPL 9761465
242831 Whirlpool Oven Wire
WPL ARI154479A
Grease
WPL ARI154477A
WPL ARI154476A
WPL ARI154475A
WPL ARI154474A
WPL ARI154473A
WPL ARI154481A
WPL 9757338
WPL 9757044
W10465644 Whirlpool Wire Harness
WPL 9758174
WPL 8524132
WP3196154 Whirlpool Screw Assembly
WPL ARI154480A
Clip, Ground Wire
W11447673 Whirlpool Range Tip Anchor
4392901 Whirlpool Biscuit Spray Paint
4392899 Whirlpool Biscuit Touch-Up Paint
350942 Whirlpool Spray Paint
W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
Cleaner (Stainless Steel)
285006 Whirlpool Spray
Wire, 25` Roll (Red 14 Ga.)
FOIL, ALUMINUM OVEN (18“ X 25 )
WPW10208653 Whirlpool Insulation
3400964 Whirlpool Oven Clip
511873 Whirlpool Refrigerator Paint
350930 Whirlpool White Spray Paint
72017 Whirlpool Appliance Touch-Up Paint White
814381 Whirlpool Pin
799344 Whirlpool Refrigerator Paint
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
WPL 799832
Wire (14 Ga. 150 c Orange)
1WPW10256908 Whirlpool Oven Range Rack
2WP3195996 Whirlpool Pan Grid
3WP3196076 Whirlpool Broil Pan
4Drawer, Storage
5W10838990 Whirlpool Mounting Bracket
6WP3196813 Whirlpool Rivet
6WP3196814 Whirlpool Rivet
7Panel, Drawer Front (Stainless Steel)
7Panel, Drawer Front (White)
7Panel, Drawer Front (Black)
8Handle, Drawer (White)
8Handle, Drawer (Black)
9Rack, Roasting
10WP3400832 Whirlpool Screw
11Rail, Drawer (Right Hand)
11Rail, Drawer (Left Hand)
12Heat Shield, Drawer
15Spacer, Glide
16814229 Whirlpool Primary Roller
17WP487939 Whirlpool Refrigerator Nut
