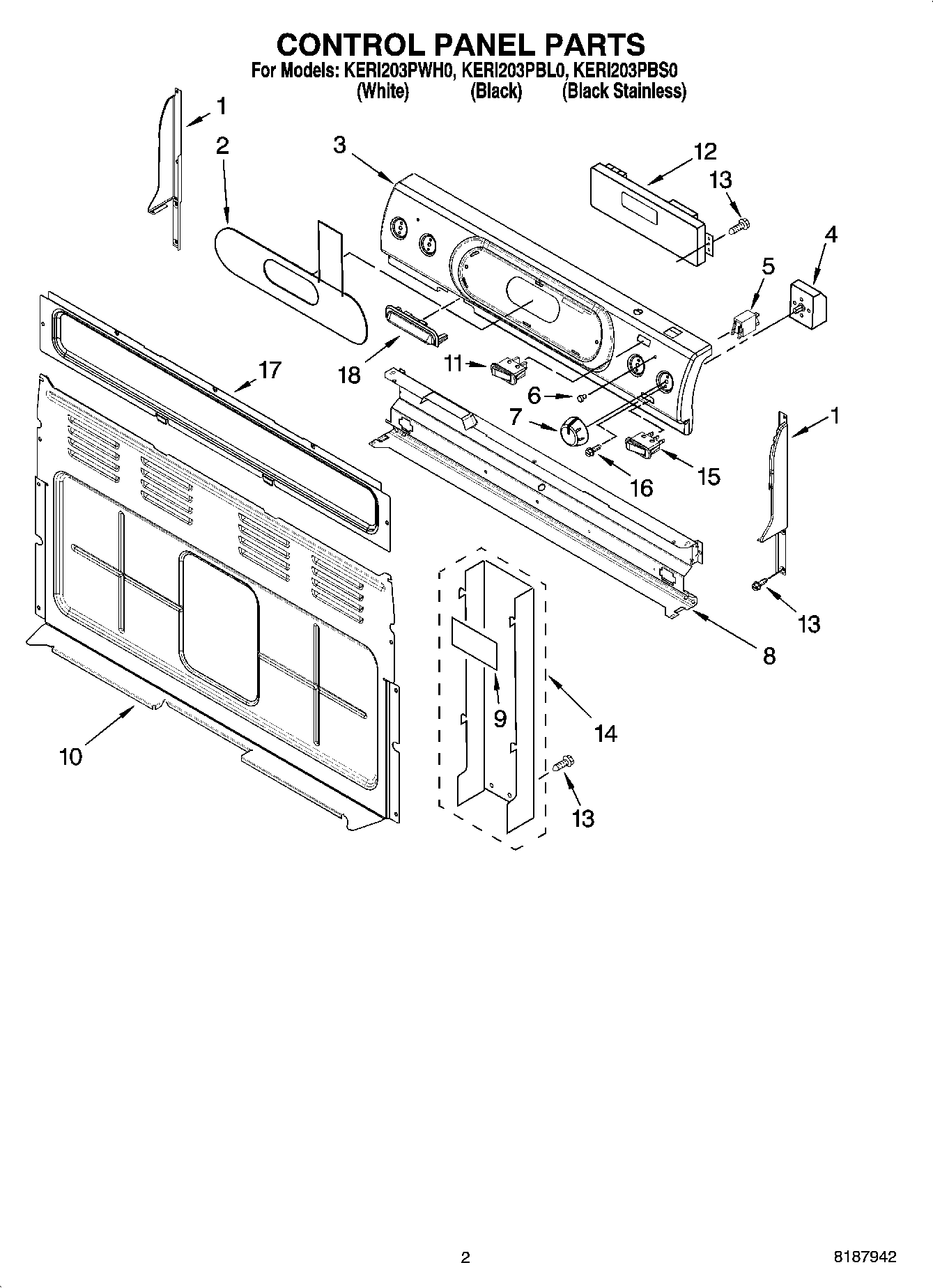

KERI203PBS0 02 – CONTROL PANEL PARTS

KERI203PBS0 02 – CONTROL PANEL PARTS

Written by

in

KERI203PBS0 02 – CONTROL PANEL PARTS

Products

PositionProduct
1Endcap (White Right Hand)
1Endcap (White Left Hand)
1Endcap (Black Right Hand)
1Endcap (Black Left Hand)
2Membrane Switch (White)
2Membrane Switch (Black)
3Panel, Backguard (White)
3Panel, Backguard (Black)
3Panel, Backguard (Black Stainless)
4WP9757030 Whirlpool Infinite Switch
4WP3148952 Whirlpool Oven Infinite Switch
4SWITCH-INF
5WP8523266 Whirlpool Indicator Light
6WP3196068 Whirlpool Light Lens
7Knob (Black)
7Knob (White)
8Shield, Heat
9Card, Insulation
10Cover, Rear
11Switch, Simmer (White)
11WPW10163899 Whirlpool Switch
12Control, Range
13SCREW
14WPW10326122 Whirlpool Black Cover
15WPW10163902 Whirlpool Switch
15Switch, Warming (White)
16WP3400882 Whirlpool Screw
17Cover, Rear (Console)
18Cover, Vent (Cashmere Metalic)
18Cover, Vent (Black)
18Cover, Vent (White)
