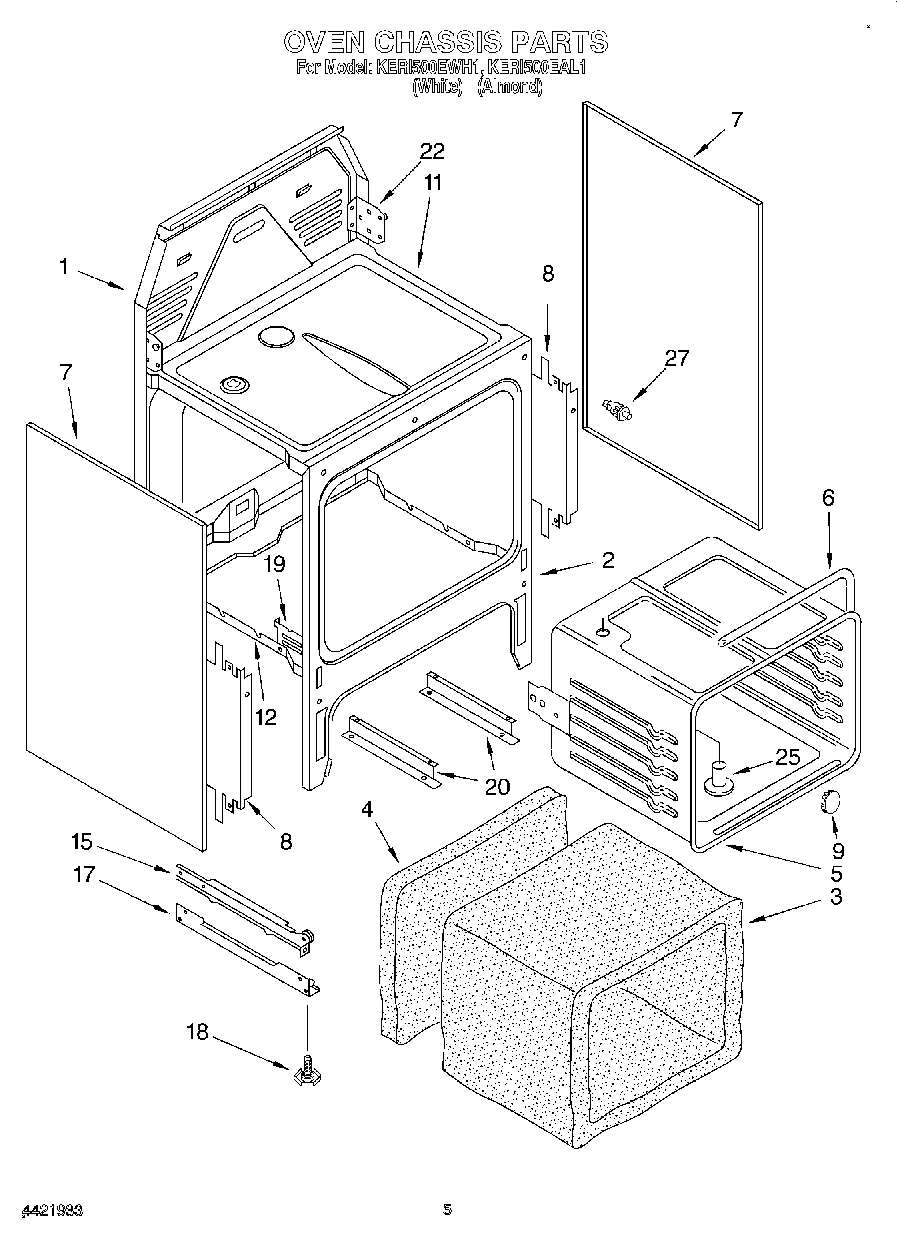

KERI500EAL1 04 – OVEN CHASSIS

Products

Position	Product
1	Main Chassis, Back
1	340184 Whirlpool Screw
2	Chassis, Front
3	Insulation, Wrap
4	Insulation, Rear
5	Oven Liner
6	Gasket Oven
7	Oven , Side L or R (Almond)
7	Oven , Side L or R (White)
8	Shield, Insulation
9	Button, Plug
11	Washer
11	Screw, (2)
11	Burner Box
12	Oven Bottom
15	Drawer Rail, Left
15	Rail, Drawer (Right)
17	Bottom Rail (2)
18	WPW10058460 Whirlpool Appliance Levelling Leg
19	Hinge, Receiver (2)
20	Support Rail, Pan
22	Hinge, Cktp.-Left
22	WP4159387 Whirlpool Compactor Screw
22	Hinge, Cktp.-Right
25	Vent Tube
27	Switch, Door
