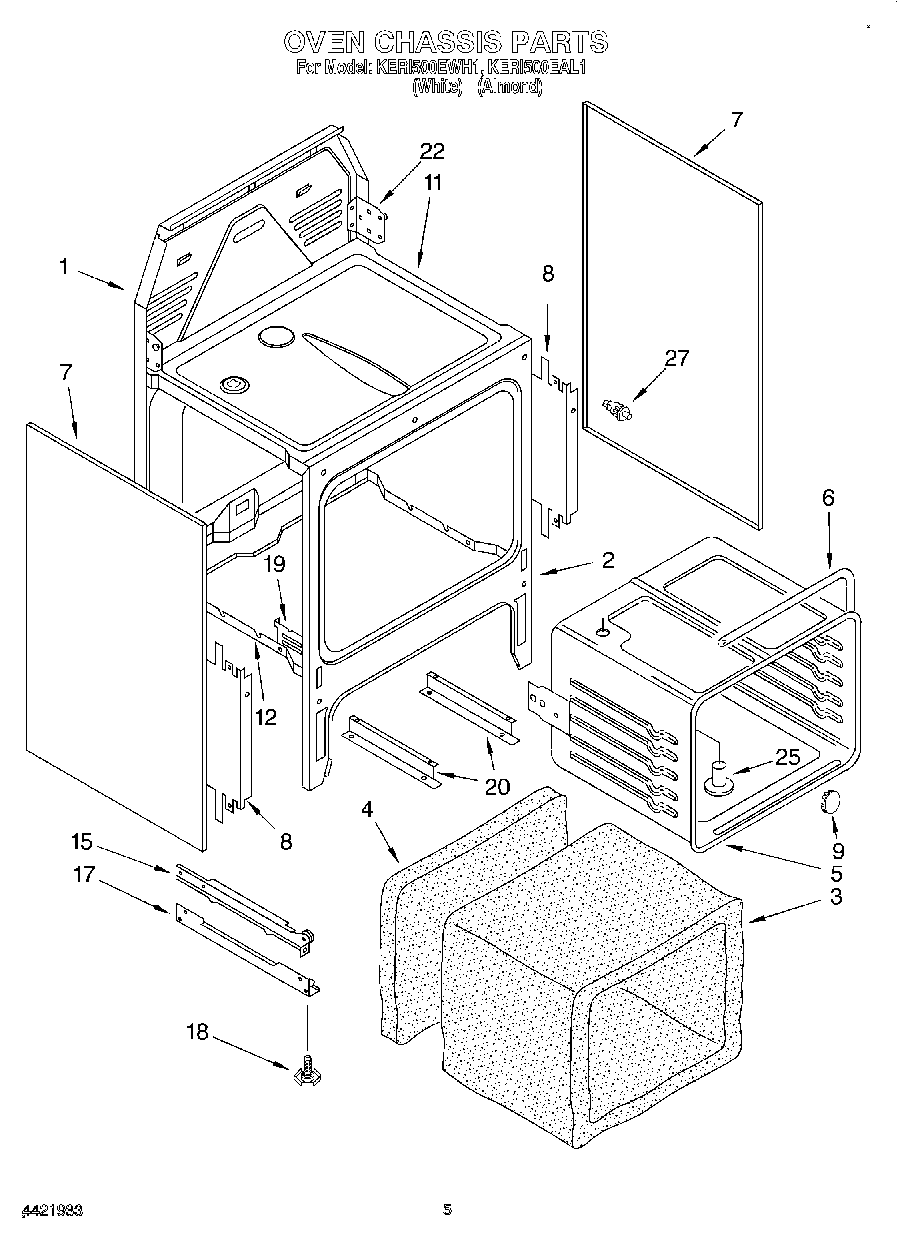

KERI500EWH1 04 – OVEN CHASSISadmin2025-04-26T09:52:51+00:00KERI500EWH1 04 – OVEN CHASSIS
Products
| Position | Product |
|---|
| 1 | Main Chassis, Back |
| 1 | 340184 Whirlpool Screw |
| 2 | Chassis, Front |
| 3 | Insulation, Wrap |
| 4 | Insulation, Rear |
| 5 | Oven Liner |
| 6 | Gasket Oven |
| 7 | Oven , Side L or R (Almond) |
| 7 | Oven , Side L or R (White) |
| 8 | Shield, Insulation |
| 9 | Button, Plug |
| 11 | Washer |
| 11 | Screw, (2) |
| 11 | Burner Box |
| 12 | Oven Bottom |
| 15 | Drawer Rail, Left |
| 15 | Rail, Drawer (Right) |
| 17 | Bottom Rail (2) |
| 18 | WPW10058460 Whirlpool Appliance Levelling Leg |
| 19 | Hinge, Receiver (2) |
| 20 | Support Rail, Pan |
| 22 | Hinge, Cktp.-Left |
| 22 | WP4159387 Whirlpool Compactor Screw |
| 22 | Hinge, Cktp.-Right |
| 25 | Vent Tube |
| 27 | Switch, Door |
