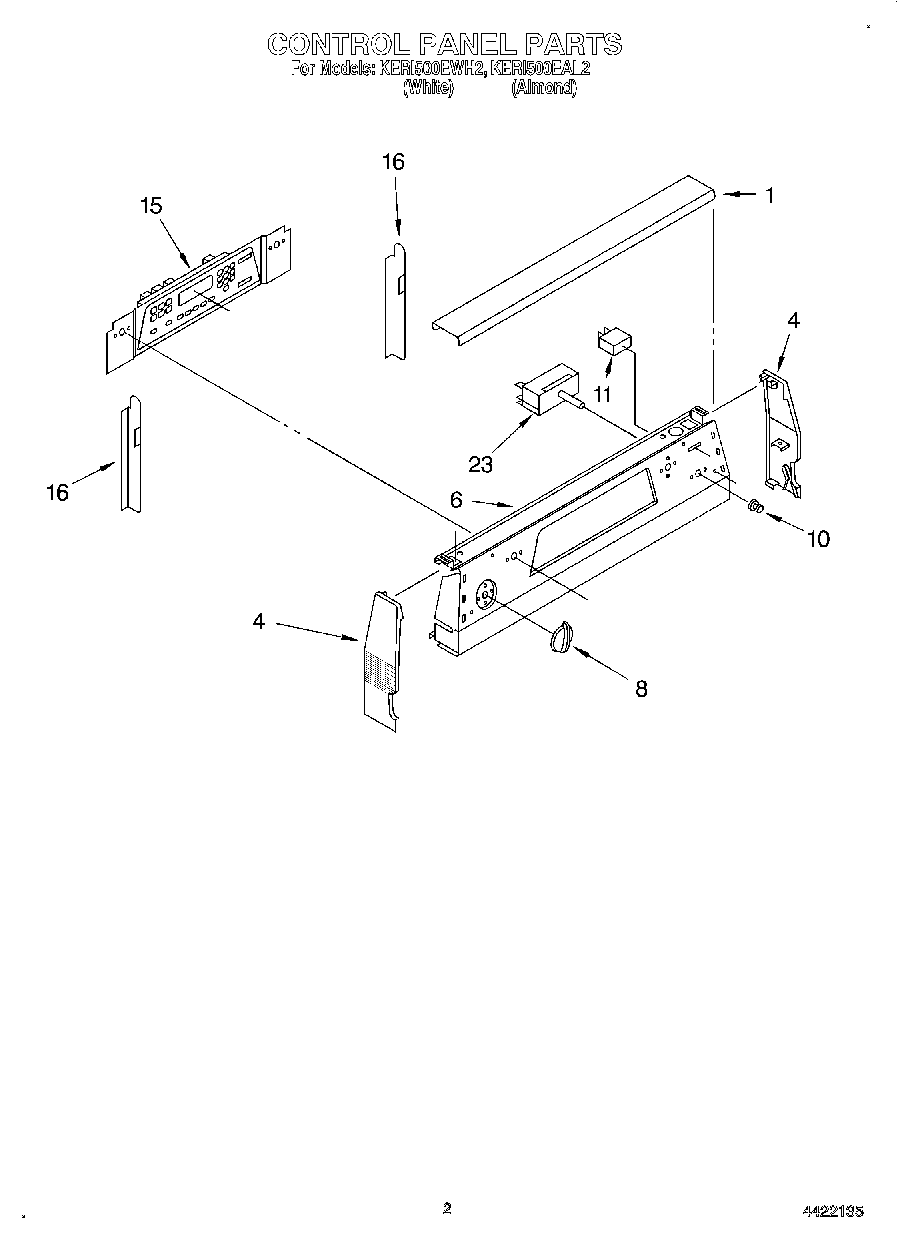

KERI500EWH2 02 – CONTROL PANEL

Products

Position	Product
1	Lamp Cover (White)
1	Lamp Cover (Almond)
4	WP4159387 Whirlpool Compactor Screw
4	End Cap (Right Hand) (Almond)
4	End Cap (Left Hand) (White)
4	End Cap (Left Hand) (Almond)
6	Panel, Control (Screw, (2) 8 x 3/8)
6	Panel, Control (White)
6	Panel, Control (Almond)
6	Infinite Switch (Insulation, Control)
8	WP9750372FW Whirlpool Knob Assembly
8	Knobs, Control (4) (Almond)
10	WP9750343 Whirlpool Light Lens
11	Light Module
15	Oven Control Assembly (Almond)
15	Oven Control Assembly (White)
16	Brace, Control Pnl
23	WP9750638 Whirlpool Infinite Switch
23	WP9750641 Whirlpool Infinite Switch
23	WP3400882 Whirlpool Screw
