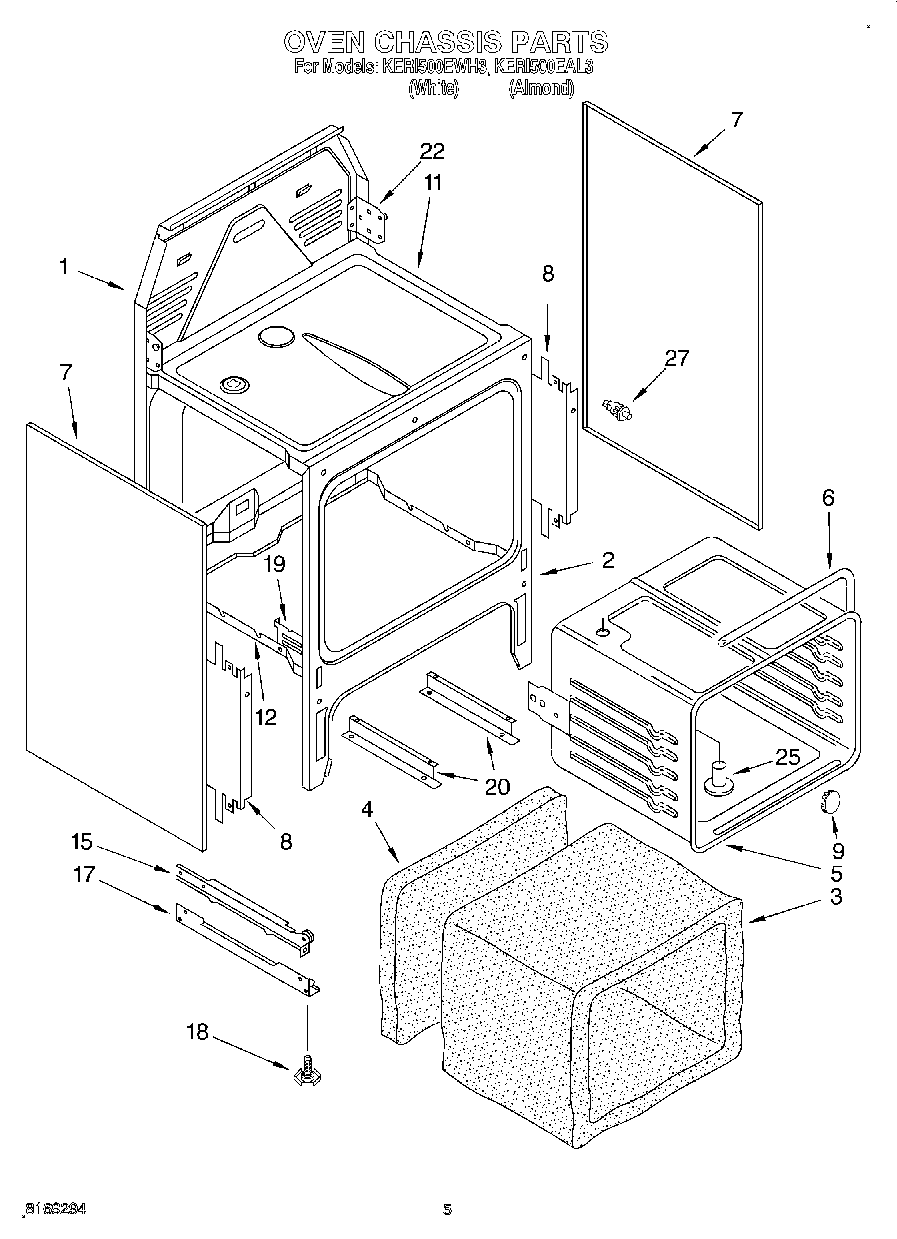

KERI500EWH3 04 – OVEN CHASSIS

KERI500EWH3 04 – OVEN CHASSIS

Written by

in

KERI500EWH3 04 – OVEN CHASSIS

Products

PositionProduct
1340184 Whirlpool Screw
1Main Chassis, Back
2Chassis, Front
3Insulation, Wrap
4Insulation, Rear
5Oven Liner
6Gasket, Oven
7Oven , Side L or R (White)
7Oven , Side L or R (Almond)
8Shield, Insulation
9Button, Plug
11Burner Box
11Washer (3)
11Screw, (2)
12Oven Bottom
15Rail, Drawer (Right)
15Drawer Rail, Left
17Bottom Rail (2)
18WPW10058460 Whirlpool Appliance Levelling Leg
19Hinge, Receiver (2)
20Support Rail, Pan
22Hinge, Cktp.-Left
22Hinge, Cktp.-Right
22WP4159387 Whirlpool Compactor Screw
25Vent Tube
27Switch, Door
