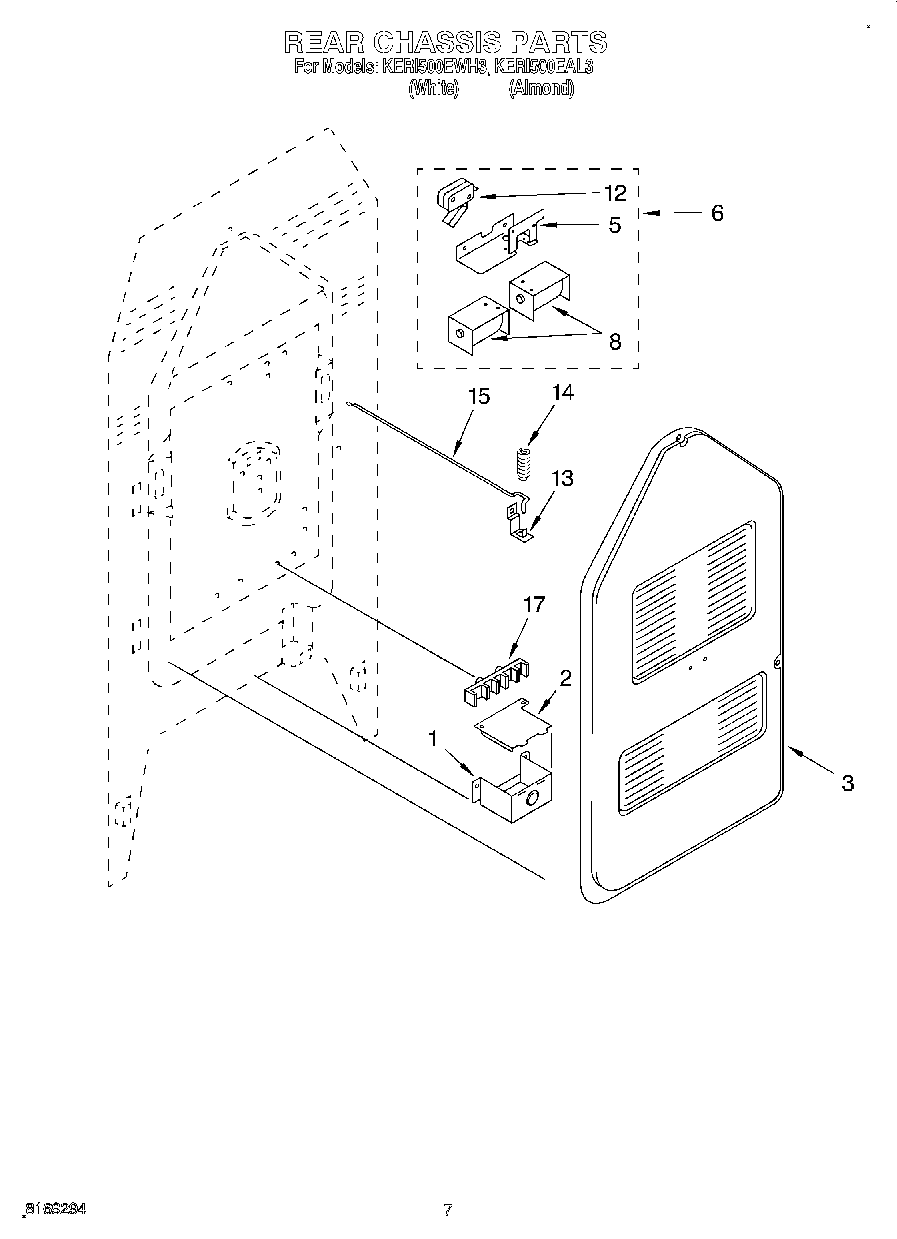

KERI500EWH3 05 – REAR CHASSISadmin2025-04-26T09:53:18+00:00KERI500EWH3 05 – REAR CHASSIS
Products
| Position | Product |
|---|
| 1 | WPL 9752344 |
| 2 | Cover, Terminal Box |
| 3 | Screw (4) 10 x 3/8 |
| 3 | Panel, Rear |
| 5 | Bracket, Lock |
| 6 | WP4159387 Whirlpool Compactor Screw |
| 6 | Oven Lock Assembly |
| 8 | Solenoid |
| 8 | Washer (2) |
| 8 | Screw (2) 10-32 x 5/16 |
| 12 | Switch, Interlock |
| 12 | Screw, (2) |
| 12 | Nut (2) |
| 13 | Bracket, Spring |
| 14 | Spring, Door Lock |
| 15 | Rod, Lock |
| 17 | Clip, Ground Wire |
| 17 | Ground Strap |
| 17 | WP8203546 Whirlpool Terminal Block |
| 17 | Screw, (2) 10-16 x 1 |
| 17 | WP112432 Whirlpool Nut Assembly |
| 17 | SCREW |
