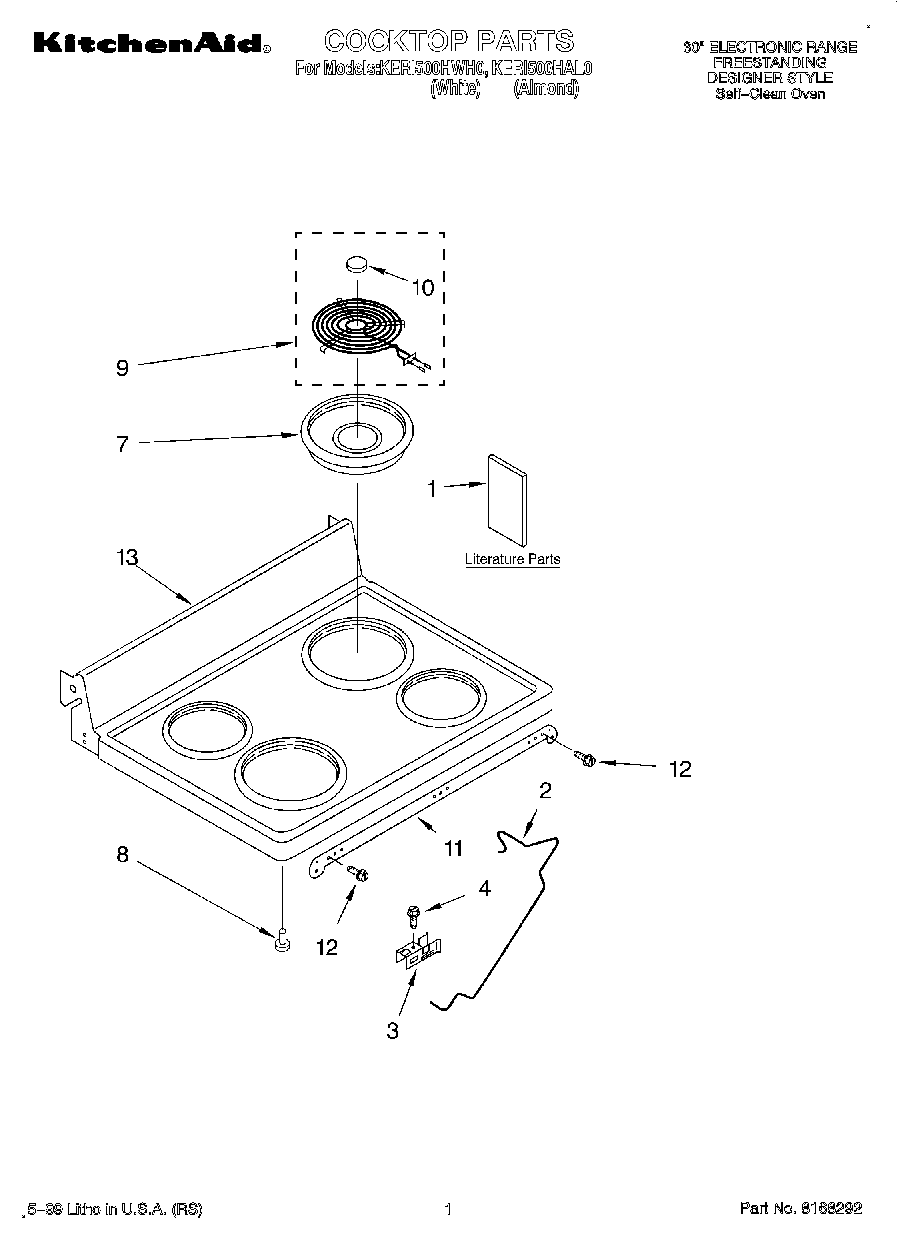

KERI500HAL0 01 – COOKTOP, LITERATURE

Products

Position	Product
1	Safer Cooking Tips
1	Literature Parts (Wiring Diagram)
1	Literature Parts (Use & Care Guide)
1	WPL LIT9752776
1	WPL LIT9752387
2	Cooktop Rod
3	Receptacle Clip
4	WP313808 Whirlpool Screw
7	WPW10290353 Whirlpool Drip Bowl 6" ClimaTek
7	WPW10290350 Whirlpool Stove Drip Bowl
8	238614 Whirlpool Bumper Hinge
9	Element, Surface (Coil, 6`` LR (Accu-Simmer))
9	WPW10259868 Whirlpool Surface Heating Element
9	WPW10259865 Whirlpool Range 8" Surface Element
10	Medallion, (4)
11	Guard, Wire
12	Screw (2) 8 x 3/8
13	Cooktop, Coil (Almond)
13	Cooktop, Coil (White)
