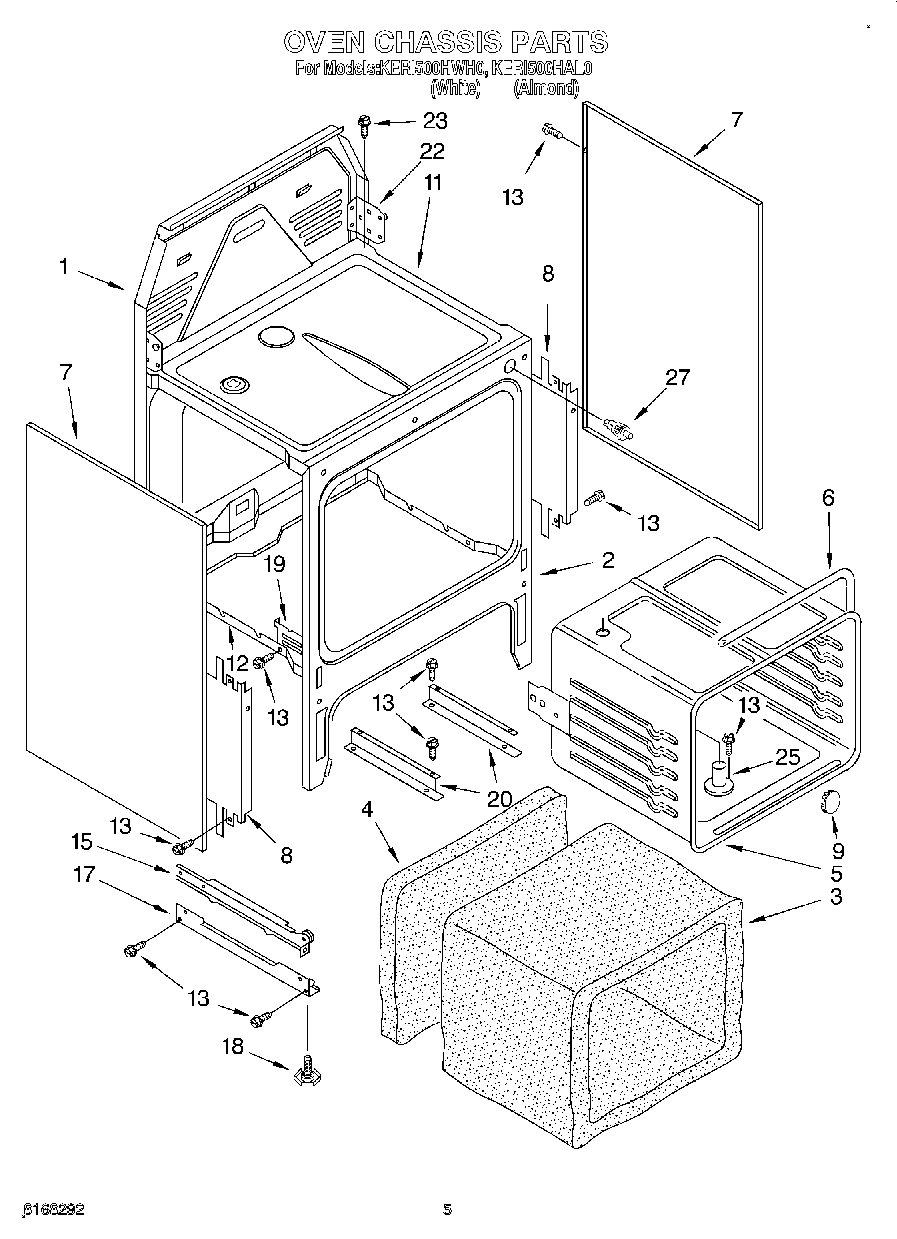

KERI500HAL0 04 – OVEN CHASSIS

Products

PositionProduct
1Main Chassis, Back
2Chassis, Front
3Insulation, Wrap
4Insulation, Rear
5Oven Liner
6Gasket, Oven
7Oven, Side L or R (Almond)
7Body, Side (White)
8Shield, Insulation
9Button, Plug
11Burner Box
12Oven Bottom
13WP4159387 Whirlpool Compactor Screw
15Drawer Rail, Left
15Rail, Drawer (Right)
17Bottom Rail (2)
18WPW10058460 Whirlpool Appliance Levelling Leg
19Hinge, Receiver (2)
20Support Rail, Pan
22Hinge, Cktp.-Left
22Hinge, Cktp.-Right
23Screw, (2)
25Vent Tube
27Switch, Door
