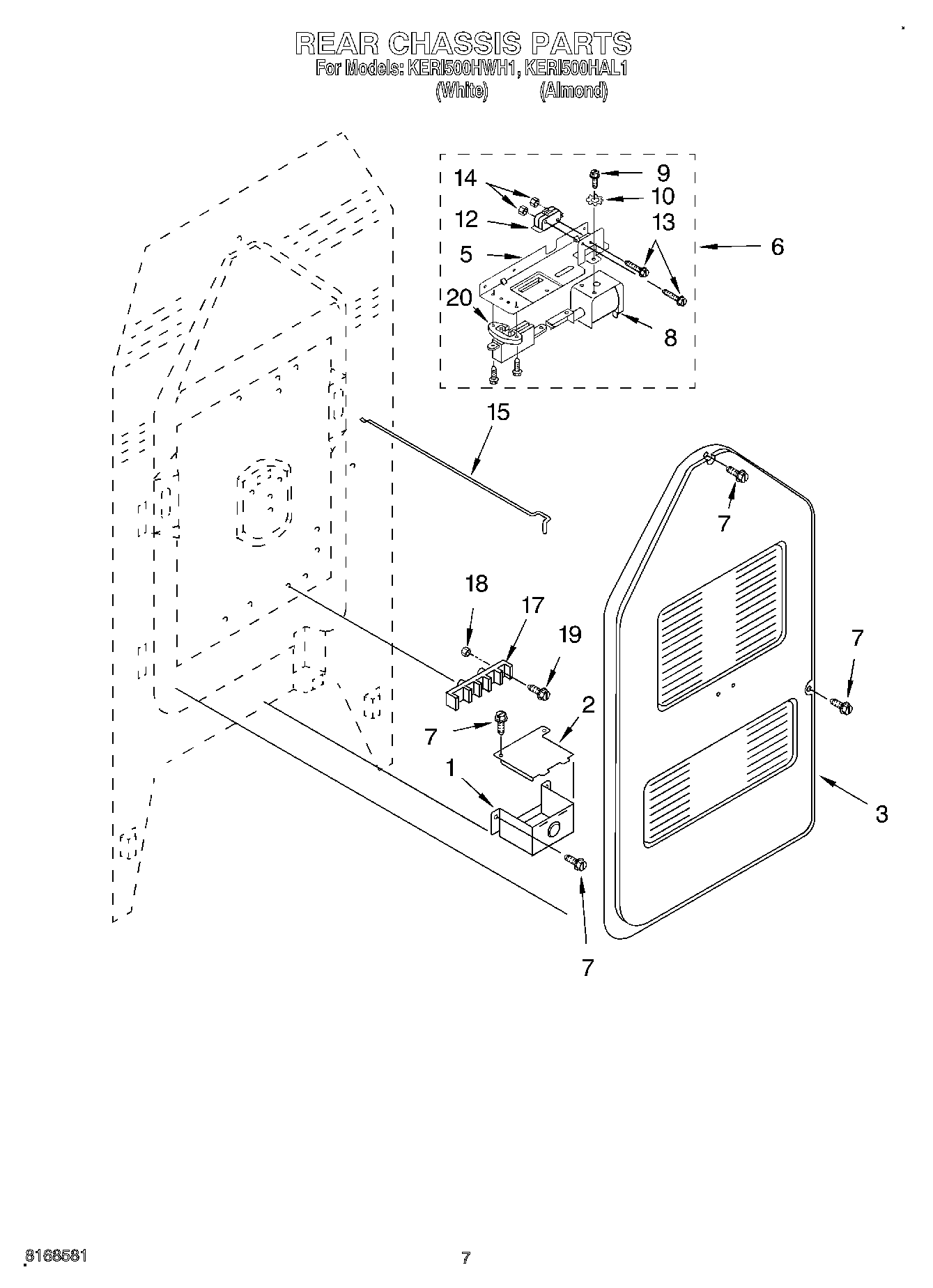

KERI500HWH1 05 – REAR CHASSISadmin2025-04-26T09:54:47+00:00KERI500HWH1 05 – REAR CHASSIS ProductsPositionProduct1WPL 97523442Cover, Terminal Box3Panel, Rear5Bracket, Lock6Oven Lock Assembly (Includes No.21)7WP4159387 Whirlpool Compactor Screw8Solenoid9Screw (2) 10-32 x 5/1610Washer (2)12Switch, Interlock13Screw, (2)14Nut (2)15Rod, Lock17WP8203546 Whirlpool Terminal Block18WP112432 Whirlpool Nut Assembly19Screw, (2) 10-16 x 120Single Position Device (Not Serviced)
