KERI500YAL0 01 – COOKTOP, LITERATURE

KERI500YAL0 01 – COOKTOP, LITERATURE

Written by

in

KERI500YAL0 01 – COOKTOP, LITERATURE

Products

PositionProduct
Tech Sheet-K/A
Instructions, Installation
Use And Care Guide
Guide, Auto Set
Wiring Diagram
WPL LIT9780944
WPL LIT9780689

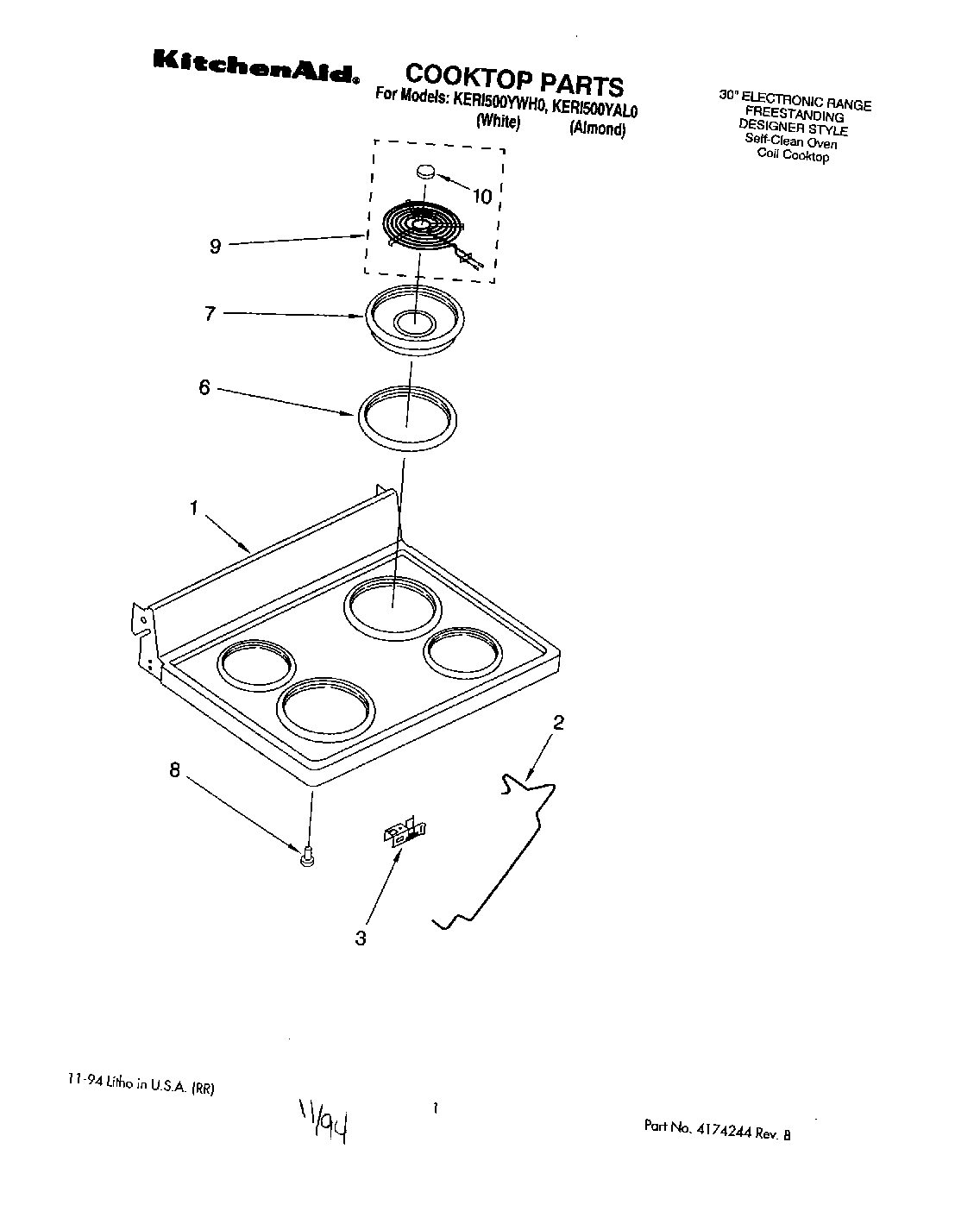

1Cooktop, Coil (White)
1Cooktop, Coil (Almond)
2Cooktop Rod
3WP313808 Whirlpool Screw
3Clip, Receptacle
6Trim Ring, Chrome (6“)
6Trim Ring, Chrome (8“)
7Drip Bowl 6“
7Drip Bowl 8“
8238614 Whirlpool Bumper Hinge
9WPW10259865 Whirlpool Range 8" Surface Element
9WPW10259868 Whirlpool Surface Heating Element
10Medallion, (4)
